KZ-8060/D
Hualian
Cartons
Strap
Product Description
KZ series high-table automatic strapping machineadopt film, durable, efficient KZ mechanism as main body, human-machine interface, PLC and fully digital manipulation to ensure easy size changeover and stable running.
Due to special design of strap feeding and withdrawal track, more straps are applicable and packing cost is lowered greatly,Oil-free maintenance, firm strapping, high speed and long use life. It can be single-unit operation or equipped onto the production line.
KZ/Dseries is suitable for light objects

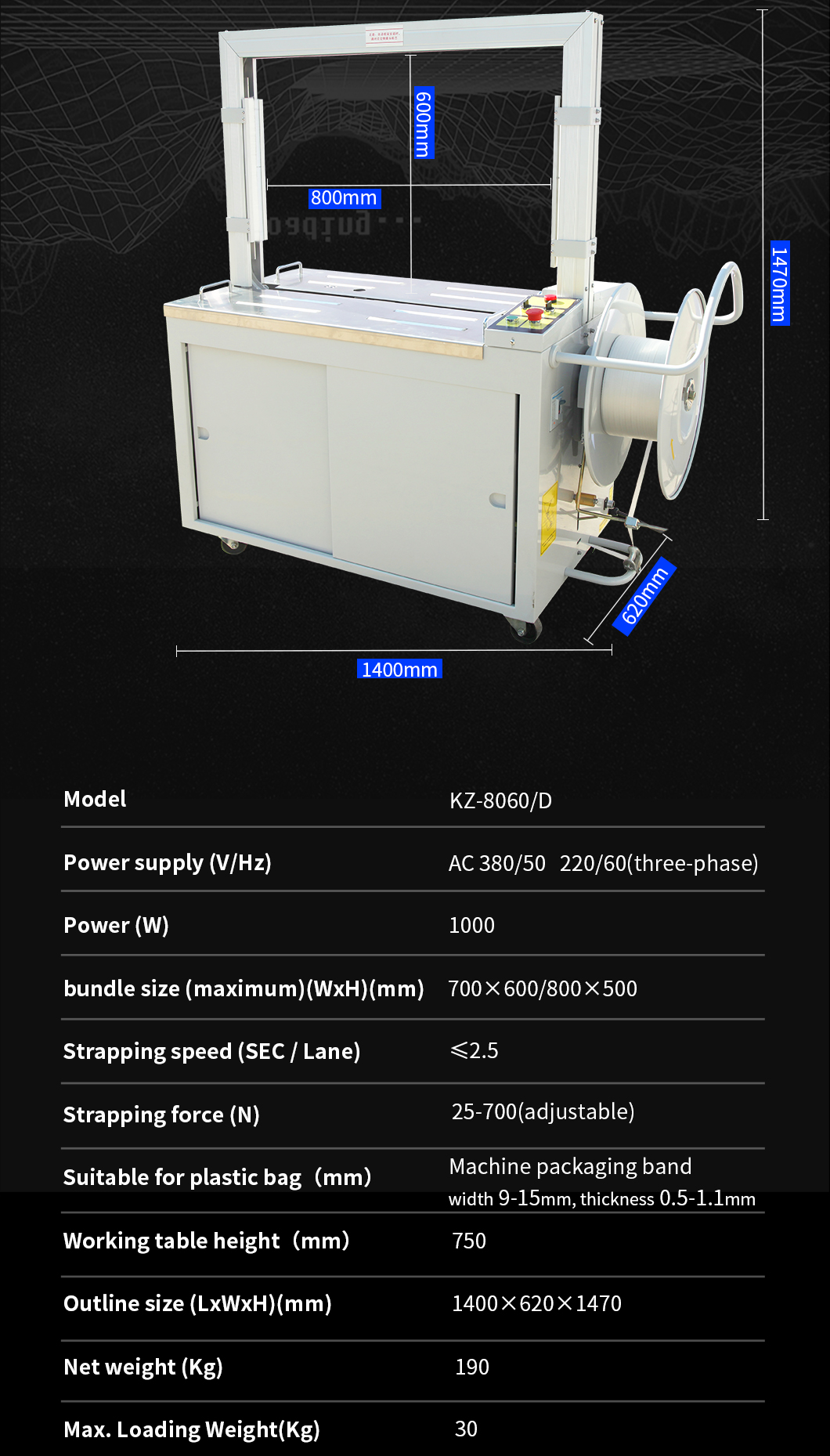

Parameters
| MODEL | KZ-8060/D |
| Voltage (V/Hz) | AC 380/50 220/60 3Phase |
| Power (W) | 1000 |
| Max. Strapping Size (L×H) (mm) | 800*600 |
| Strapping Speed (sec/cycle) | ≤2.5 |
| Strapping Force (V/hz) (N) | 25-700 (Adjustable) |
| Height of Table (mm) | 750 |
| Width of Strap Used (mm) | Plastic strap 9-15, thickness 0.5-1.1 |
| External Dimensions (L×W× H)(mm) | 1400×620×1470 |
| Net Weight (kg) | 240 |
| Max.Loading Weight(kg) | 30 |
