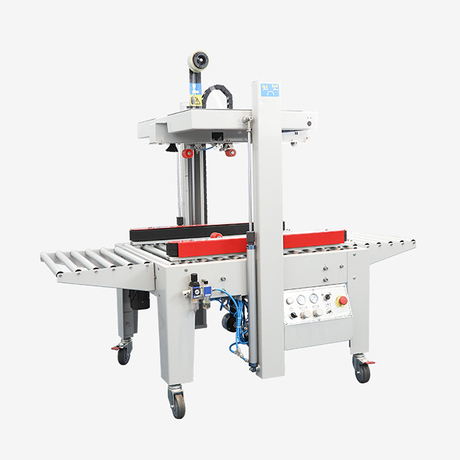

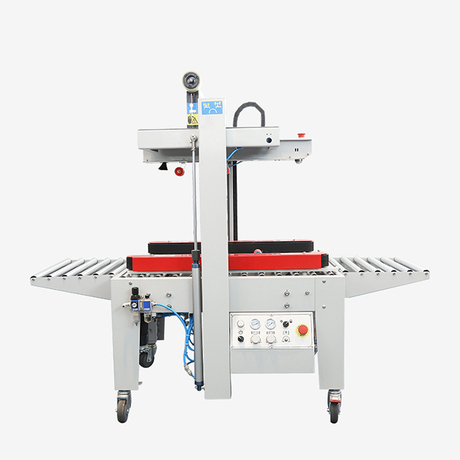

FXJ-5050QS pneumatic carton sealer with new locking mode is especially applied to continuously seal cartons in different sizes, which is used in the fields of domestic electrical appliance, foodstuffs, general merchandise, medicine and chemical industries.
* Using tape width of 36-48mm and with 50mm on the sides of the carton;
* Simple panel with the knob of switching between automatic mode and fixed mode;
* All pneumatic components adopt Airtac brand.
| MODEL | FXJ-5050QS |
| Voltage (V/Hz) | AC 220/50 110/60 |
| Power (W) | 200 |
| Gas Pressure (Mpa) | 0.4~0.6 |
| Max. Carton Size (L×W×H) (mm) | ∞X500X500 |
| Min. Carton Size (L×W×H) (mm) | 130X80X90 |
| Taping Speed (m/min) | 20( Fixed mode:25-45 cartons / min ; Automatic mode:10-25 cartons / min ) |
| Adhesive Tape Used | BOPP Water-free Adhesive Tape PVC Adhesive Tape |
| Height of Table (mm) | 580-780 |
| Width of Adhesive Tape (mm) | 36,48 |
| External Dimensions (L×W×H) (mm) | 1800X960X(1330-1530) |
| Net Weight (kg) | 194 |
| Max. Conveyor Load(kg) | 30 |
