Vacuum Vertical Gas Flush Packaging Machine DZQ-600LD

Availability:
Quantity:
  • DZQ-600LD
  • Hualian

Description

  • DZQ-600L and its variants, Multi-Functional Vacuum Gas Flushing Packaging Machine, are multi-functional, both for vacuum sealing, and for gas flushing vacuum sealing.

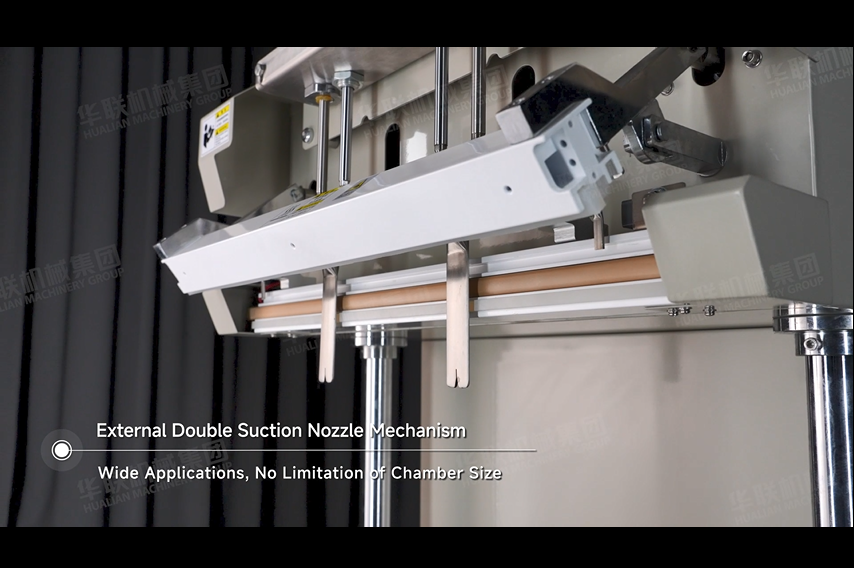

  • Due to chamber-less design with double nozzles, the application is wide for low demands of vacuum percentage but high of inserting gas purity.

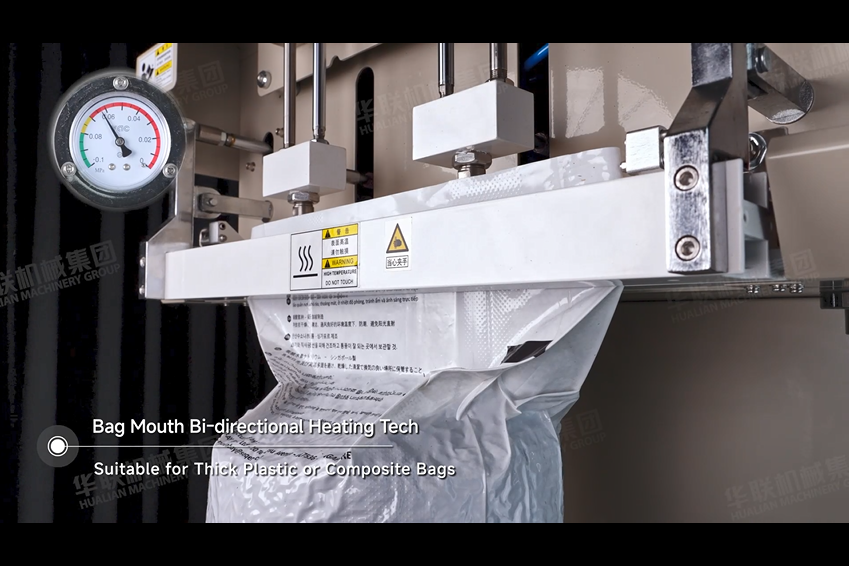

  • DZQ-600L/S double heating model is special for thick film bag, or compound films.

  • If heavy duty products, users can use DZQ-600L/D, whose sealing head height is adjustable. This device is helpful for big bag even weighing to tons.

  • The sealing length can be customized to 800mm or 1000mm.

  • For powder more than 100 meshes, machine should be equipped with Helix Subside Filter for collection powder to protect the vacuum pump.

Parameters

ModelDZQ-600LD(/S)
Voltage   (V/Hz)AC 380/50  220/50
Motor power (W)900
Sealing   Power (W)600(1000)
Sealing Length (mm) 600 800 1000
Sealing   Width (mm) 10

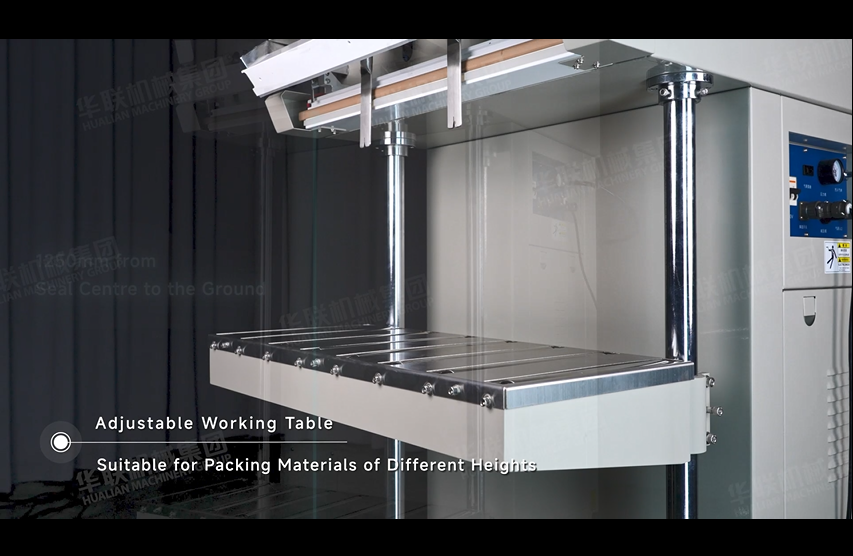

Distance from Sealing Center to Floor (mm)900-1500
Vacuum   Pump Capacity (m3/h) 20
Film Thickness (Single Layer) (mm) ≤ 0.18
External   Dimensions (L×W×H) (mm) 1125×1075×2150
Net Weight (kg) Approx.285


Dimension

4DZQ-600LD-S尺寸图

Product Detail

5 局部图上框6DZQ-600LDS局部新7真空机样品图9 产品包装
