Hualian Thermoforming Packaging Machine

Advanced Thermoforming Packaging Machines for Industry-Leading Performance

Hualian's fully automatic thermoforming vacuum packaging machines are widely used in various industries, high quality and high performance are very popular among users. Our food thermoformer machines are diverse, according to the packaging speed, it can be divided into compact, mid-range and high output thermoformer machines; according to the packaging style, it can be divided into Soft (flexible) film,Hard (rigid) film and Aluminum film thermoforming packaging machines, and the common benefit as below：

  • Diverse Packaging Options: Thermoforming packaging styles are varied, such as sealing only, vacuum packaging, VSP and Map packaging.
  • Multifunction: It adopts removable molds which enable single machine to meet different sizes of products
  • Hygienic Design: 304 S/S casing, high-strength aluminum alloy for molds; And features an easy-to-clean structure.
  • High-Quality Components: Equipped with Busch vacuum pump for higher efficiency and lower operating cost
  • Simple Operation: 10.1-inch PLC touch screen, Human-machine interaction,intuitive operation
  • Conservation and Environmental Protection: Equips with recycling device for waste film and ensure healthy environment
  • Whole-Line Integration: Seamless integration with the production line, executing the entire process—from filling to forming, sealing, gas flushing, cutting, and labeling.
  • Applications: Widely used in meat,seafood,sausage,cheese,fruits & vegetable,frozen food,bread,ready meal,non-food and so on


What Do You Want To Pack

  • Vegetable
  • Wet Pet Food
  • Poultry
  • Sandwich

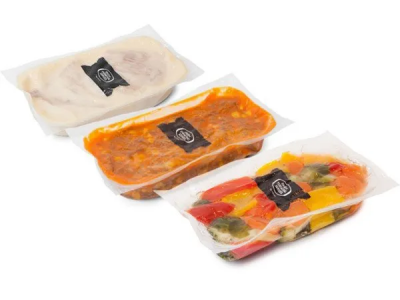

  • Ready Meal

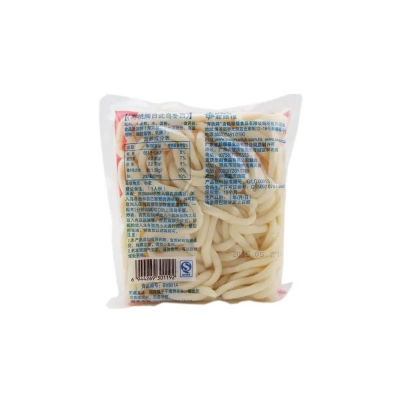

  • Udon Noodles
  • Date Palm
  • Meat

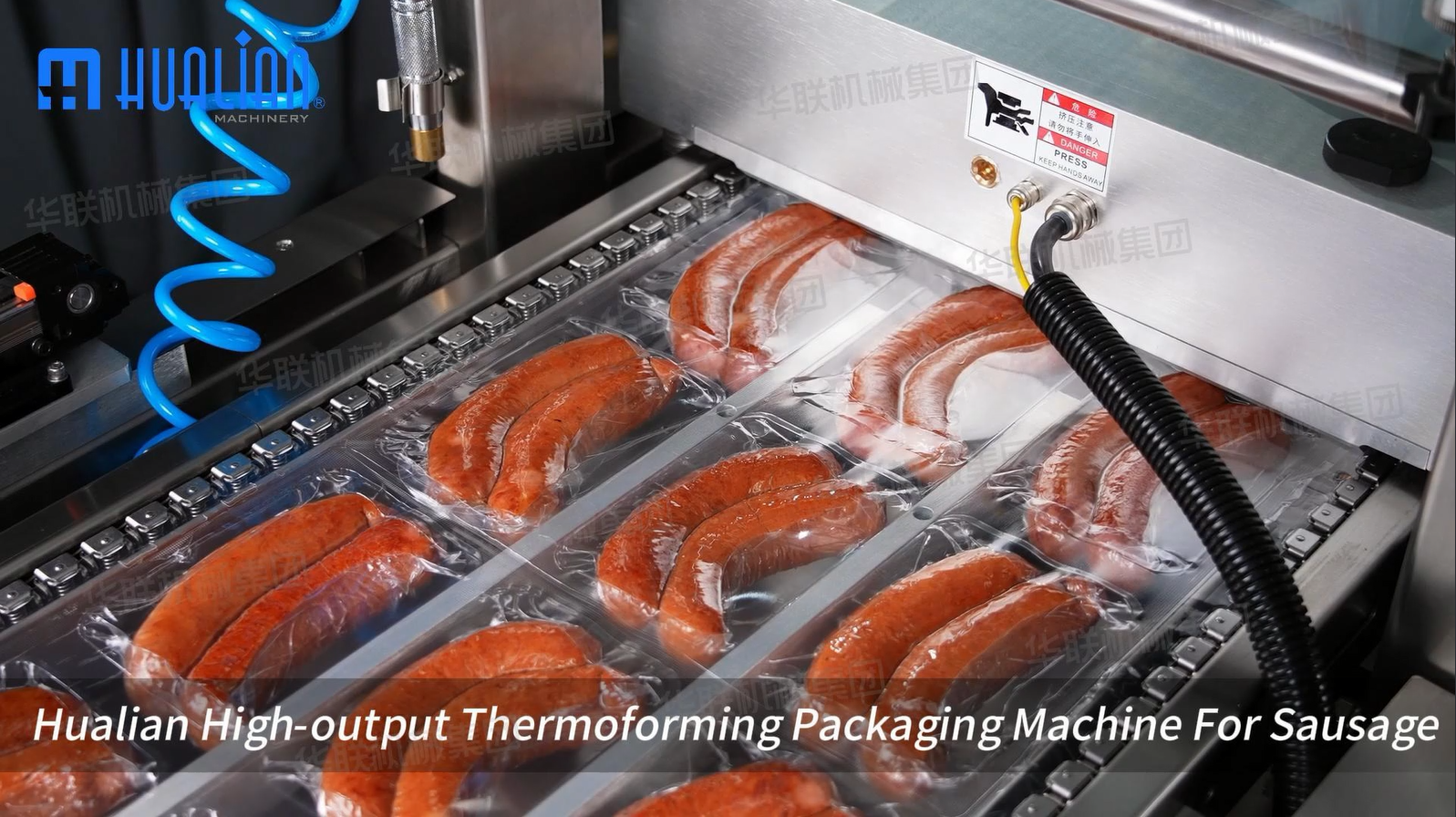

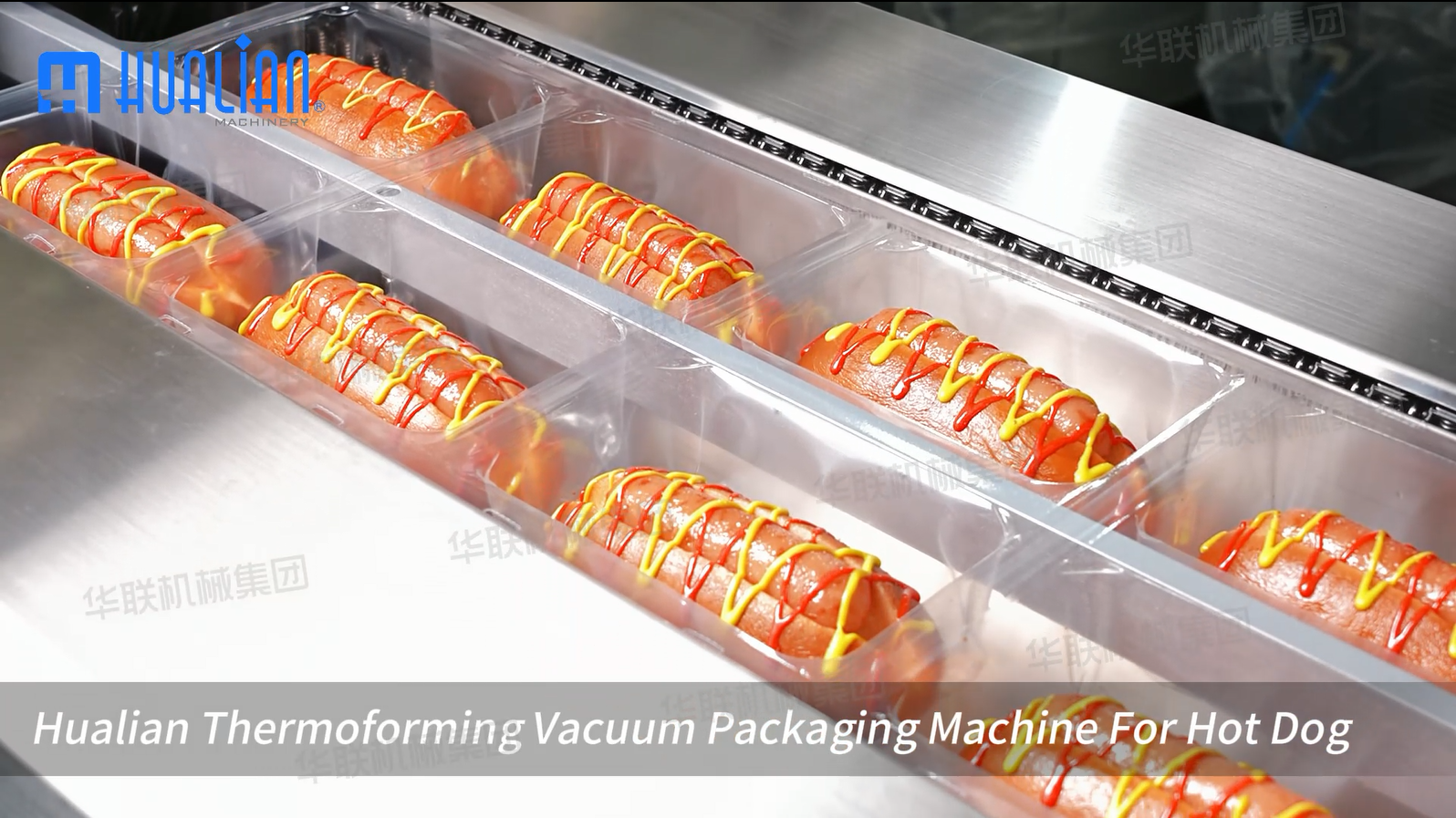

  • Sausage

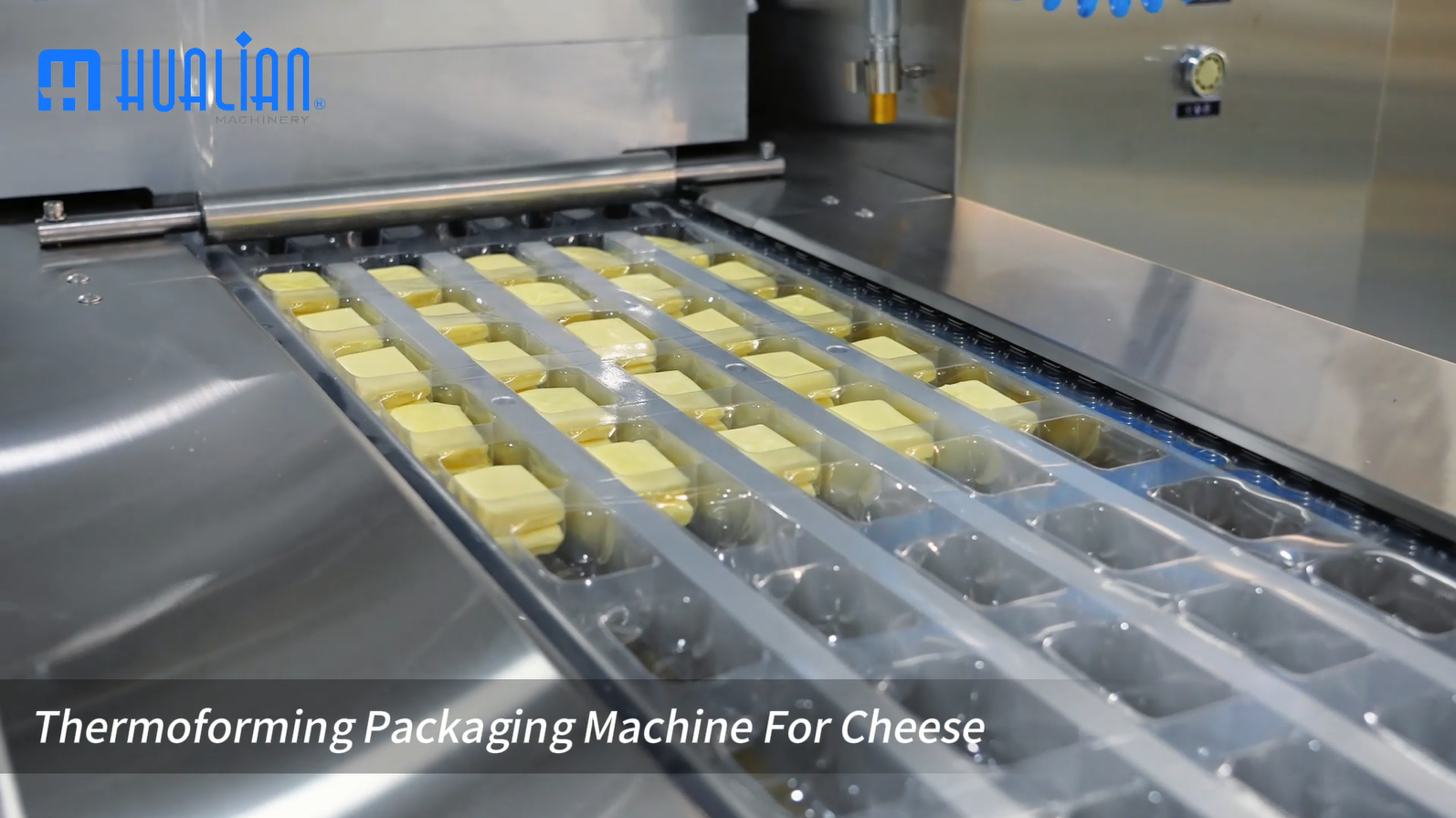

  • Cheese

Type Of Thermoforming Packaging Machines

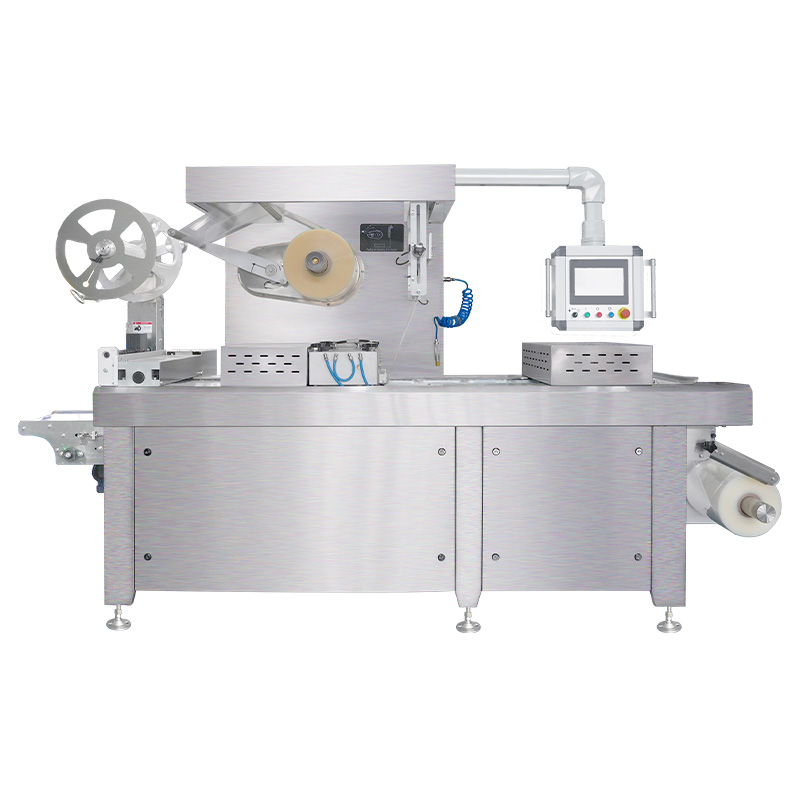

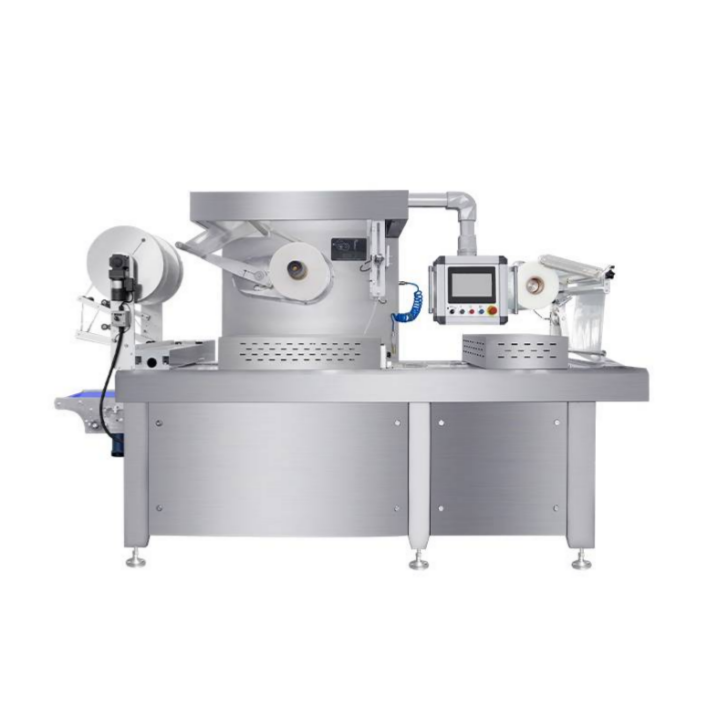

Compact Flexible Film Vacuum Thermoforming Packaging Machine

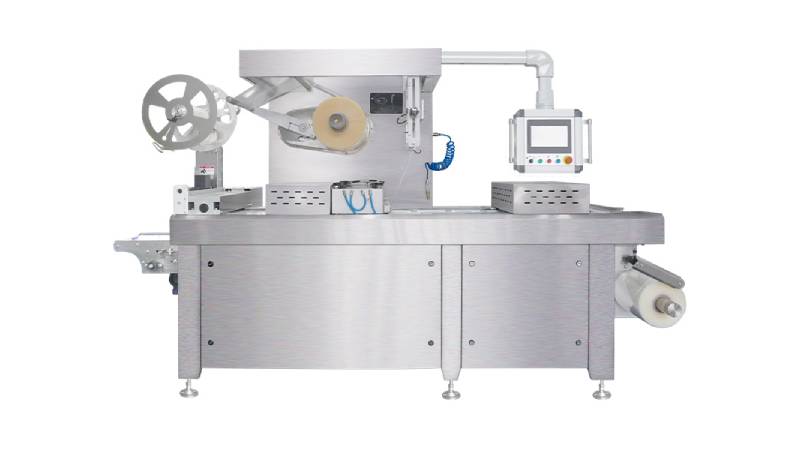

Compact Model Thermoforming Vacuum Packaging Machine HVR-A(Q)

  • ​​​​​Low energy consumption and simple operation, saving costs
  • This compact model offers a comprehensive range of features at an affordable price
  • The 3M Compact body of this thermoformer has a small footprint, it suitable for factories with limited space

Speed: 4-6 Cycles/Min               Application: Small-scale Factory

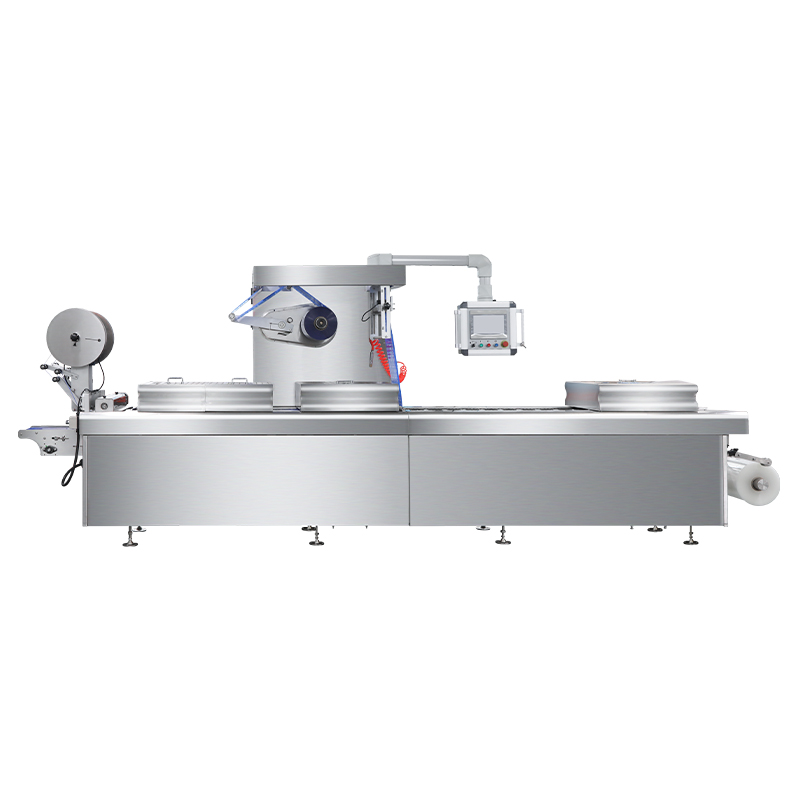

Hualian Continuous Flexible Film Thermoforming Packaging Machine

Mid-range Model Thermoforming Vacuum Packaging Machine HVR-A

  • Balanced performance and cost, ideal for medium production demands.
  • Reliable operation with user-friendly control and low maintenance requirements.
  • Modular design allows flexible configuration for various products and packaging materials.

Speed: 4-6 Cycles/Min                Application: Medium-scale Factory

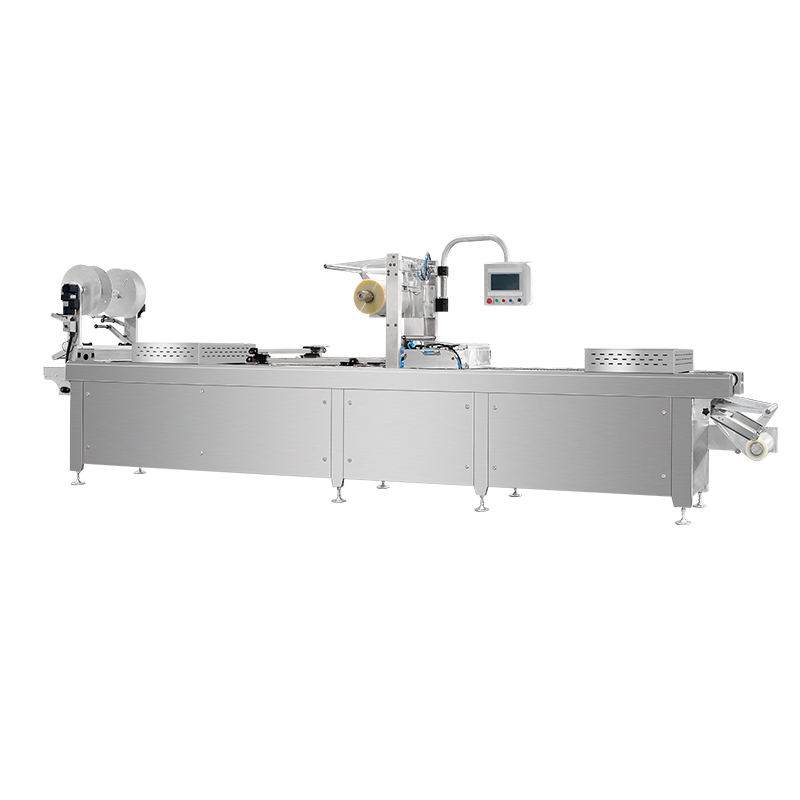

Hualian high speed thermoforming packaging machine

High-Output Mode Thermoforming Vacuum Packaging Machine HVR-A-U

  • Production capacity soars, efficiency doubles.
  • High-quality equipment integrating automation and high-precision technology.
  • Leveraging our proprietary high-performance servo mechanism, sealing speed and precision have been significantly enhanced.

Speed: 8-12 Cycles/Min             Application: Large-scale Factory

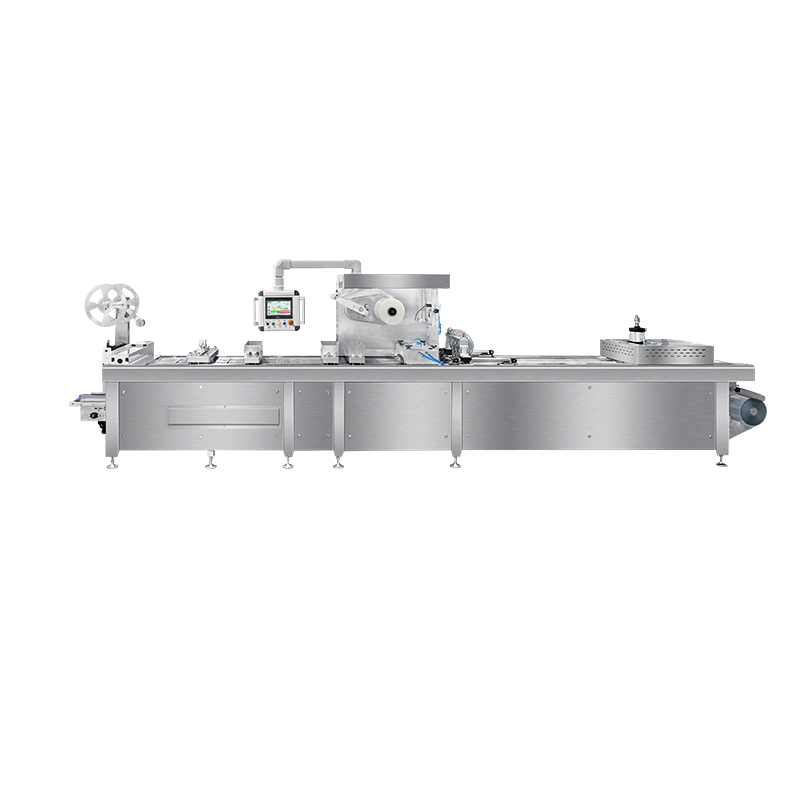

HVR-420T (Q)-42 Rigid Film Thermoforming Vacuum Packaging

High-Output Rigid Film MAP Thermoforming Packaging Machine HVR-T(Q)

  • The deep-drawing depth can reach high-specification standards, suitable for large-sized and irregularly shaped products.
  • Seamless integration with the production line, executing the entire process.
  • It supports compatibility with multiple packaging formats simultaneously—including vacuum packaging, MAP (Modified Atmosphere Packaging), and skin packaging.

Speed: 12 Cycles/Min             Application: Large-scale Factory





Hualian Thermoforming Packaging Machine Packaging Solution

Hualian offers fully automated thermoforming packaging lines, covering the entire process from filling to forming, sealing, labeling, boxing, and palletizing. The production capacity can be increased by 5 to 10 times. With extensive experience in providing packaging solutions across various sectors, we possess a clear understanding of the specific equipment customization and functional requirements unique to different industries. Therefore, please feel free to contact us, we would be happy to provide you with a complimentary solution proposal.
SPECIALIZED IN PRODUCT
One-Stop Serive
Ranging from single-machine to Provide one-stop services ranging from single-machine operation to complete-line palletizing.
CONTACT US
Engineering customization​​​​​​​
We have an excellent technical team, which can be designed according to customers requirements.
CONTACT US
Global Service​​​​​​​
Technical support and rapid-response spare parts logistics.
CONTACT US

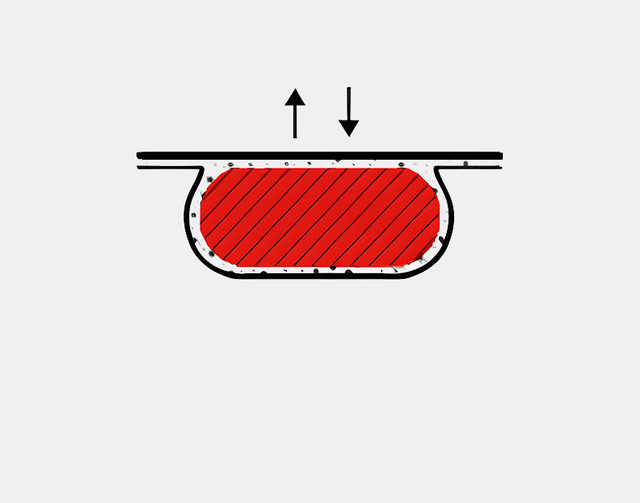

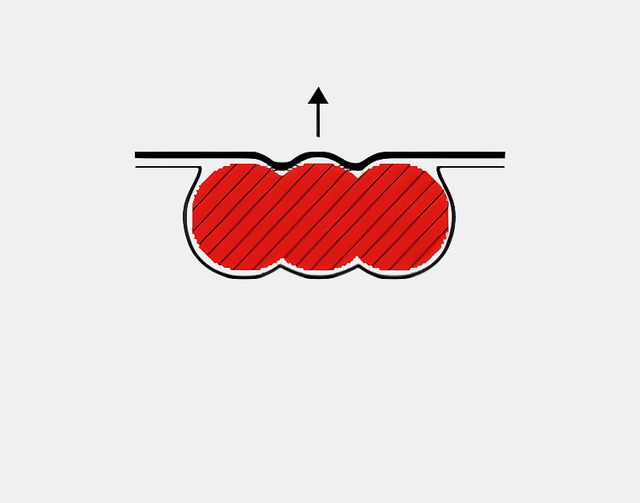

Hualian Thermoforming Packaging Machine Packaging Styles

Our thermoforming packer machine offers multi-functional versatility, allowing users to select packaging styles tailored to their specific requirements. It accommodates packaging applications for both flexible and rigid films: For flexible films, it supports Modified Atmosphere Packaging (MAP) and vacuum packaging; For rigid films, it supports MAP and skin packaging.


Customization Options For Thermoforming Packaging machine

Our thermoforming packaging machines offer fully customized solutions, meticulously tailored to your specific requirements. We also possess extensive experience in addressing the unique customization needs of various markets—such as the specific film width dimensions often required within the meat and cheese industries. Please inform us of your more detailed customization requirements. We have a professional technical team who will assess them for you and provide you with solution suggestions.

  • ︎ Mold Changeable
    The size, shape and depth of the mold can be customized
  • Packaging Styles
    MAP/VSP/Vacuum/Sealing
  • Easy Tear
    Customizable tear-off edges of different shapes
  • Printing & Labeling
    Servo Inkjet Coding, Laser Marking and Ribbon Coding. Provide customized labeling services.
  • Output Conveyor
    Equipped with an output conveyor to form an assembly line
  • Language
    Customizable language according to your country
  • Filling Equipment
    Multi-head Weighing and Dispensing, Spider Robots, and Liquid Filling
  • ︎ Waste Film Collection
    Motorized film winding or waste film collection via a suction drum.
1
Customizable: Functional Configurations
Customizable automatic filling areas (multi-head dispensing mechanism, spider robots, liquid filling, etc.), extended filling area, cutting type, waste film collection method, inflation and gas regulation functions, printing function
CONTACT US >

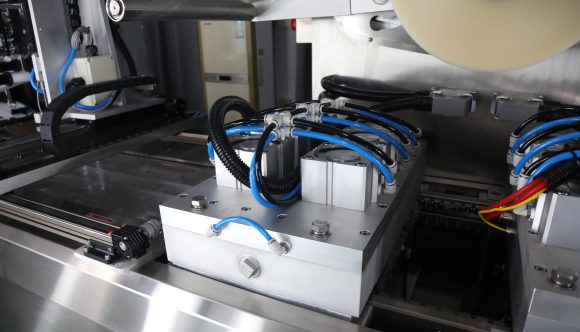

Customizable: Film Width & Film Type
The width of the top and bottom films can be customized, and the type of the film (soft film/hard film) can also be customized. For meat and dairy products suitable for the South American market, the most appropriate sizes would be for film as follows:
Width film: 423 mm; Top film: 405 mm.
CONTACT US >
2

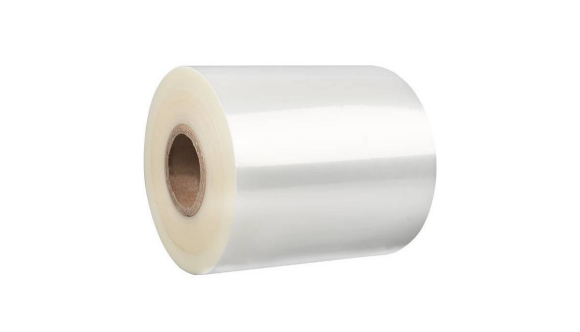

Hualian Thermoforming Packaging Machine Consumable Support
We offer a one-stop service, providing all consumables related to stretch film machines. These supplies are perfectly tailored to your specific equipment, ensuring you never have to worry about the availability of consumables.
  • Consumables
  • Consumables
  • Consumables
  • Consumables
Hualian Thermoforming Packaging Machine Customer Cases
We have extensive 37 years packaging experience and a wide range of client cases in various industries, including meat, dairy products, seafood, dates, desserts, fruits and vegetables, pet food, etc. If you would like to learn more about the suggestions for related solutions, please don't hesitate to contact us!
Hualian Thermoforming Packaging Machine Parameter List
Model HVR-320A(Q) HVR-420A HVR-420S HVR-420A-U
Voltage (V/Hz) 380/50 (3Phase)
Sealing Power (KW) 2 2-4
Gas Powder (Mpa) 0.5-0.8 0.5-0.6 0.6-0.8
Cooling Type Water Cooling
Upper Film Width(mm) 292 392 398
Lower Film Width (mm) 322 422
Material Type Solid/Soup
Max.Forming Depth(mm) 120 80 Upper Film: ≤5
Bottom Film ≤10		 120
Capacity(Cycles/min) 4-6 8-12
Chamber Dimension (L×W) (mm) 284×(200-400) 400×(200-400) 300×(200-400) 384×(200-400)
External Dimension (L×W×H) (mm) 3012×1014×1905 5000×810×1700 6000×1050×2000 without coder: 4770×915×1875
with coder: 5770×915×1875
Net Weight (Kg) 1200 1500 2000 2500
Customized Thermoforming Packaging Solutions
Case Studies
Best Meat Packaging

Thermoforming Packaging Machine FAQ

  • What type of film is required for a thermoforming packaging machine?

    High-Temperature Thermoforming Bottom Film: Primarily manufactured using raw materials such as PA, PP, PE, TIE, and EVOH. It is capable of withstanding sterilization temperatures of up to 130°C for one hour and low-temperature refrigeration down to -40°C.
    Basic Structure of High-Temperature Film: PA/TIE/PP/TIE/PA/TIE/PP
    Lidding Film: PA 1.5 / CPP 7
    Thermoforming Parameters: Film thickness 0.12 mm allows for a draw depth of ≤ 30 mm; 0.16 mm allows for ≤ 50 mm; 0.2 mm allows for ≤ 80 mm; and 0.24 mm allows for ≤ 100 mm.

  • Can a thermoforming packaging machine be equipped with a filling system?

    Yes, certainly. We can customize various filling systems, such as gripper feeding or liquid filling.

  • What Is Thermoforming Packaging Machine？

    A thermoforming packaging machine primarily achieves the automatic and efficient packaging of products using roll-fed film. It utilizes a dual-layer soft film system, employing a composite film for the top layer and a stretch film for the bottom layer. During operation, a film-gripping chain advances the bottom film into a forming die, where it is stretched and shaped. The product is then placed into the formed cavity within the forming zone. Subsequently, the assembly moves to the sealing die, where the top film is applied. The machine then performs vacuuming (with nitrogen flushing added for certain products), sealing, and venting, before automatically executing transverse and longitudinal cuts to separate each individual product.

  • Is it necessary to equip with a chiller for the thermoforming packaging machine?

    Generally, it is OK not to use a chiller. The water inlet can be directly connected to tap water, and the outlet can be connected to the sewer for discharge.

  • What kind of film is needed for the thermoforming packaging machine?

    High-temperature stretch lower film: mainly made of PA, PP, PE, TIE, EVOH and other raw materials, the sterilization temperature can withstand 130°, one hour.
    Low-temperature refrigeration -40° Basic structure of high-temperature film: PA/TIE/PP/TIE/PA/TIE/PP
    Upper film: PA1.5/CPP7
    Stretching parameters: film thickness 0.12 stretch ≤30 mm, 0.16 stretch ≤ 50 mm, 0.2 stretch ≤ 80 mm, 0.24 stretch ≤ 100 mm

  • Can the HVR thermoforming packaging machine be equipped with the Puxu 100 pump?

    The size of the pump can be matched, it just affects the speed, and even the vacuum pump in the molding chamber can be cancelled, and then the molding chamber and the vacuum chamber can share a vacuum pump.

  • Can the hard film thermoforming packaging machine with different depths be packaged by one machine?

    Yes. Can different height inner molds be replaced to achieve different depths.

  • Can I equip the thermoforming packaging machine with an inkjet printer?

    Yes, just send the size of the printer head. And also needs to be equipped with a model that can print back and forth.
Related Thermoforming Packaging Machines

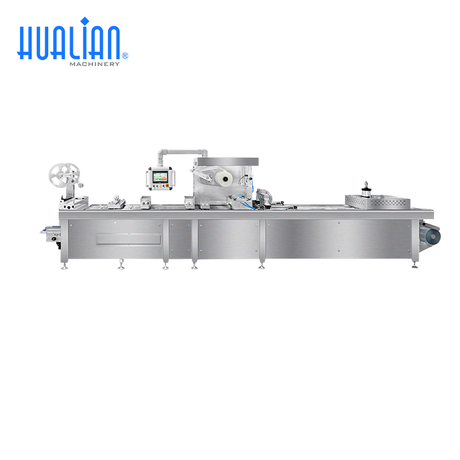

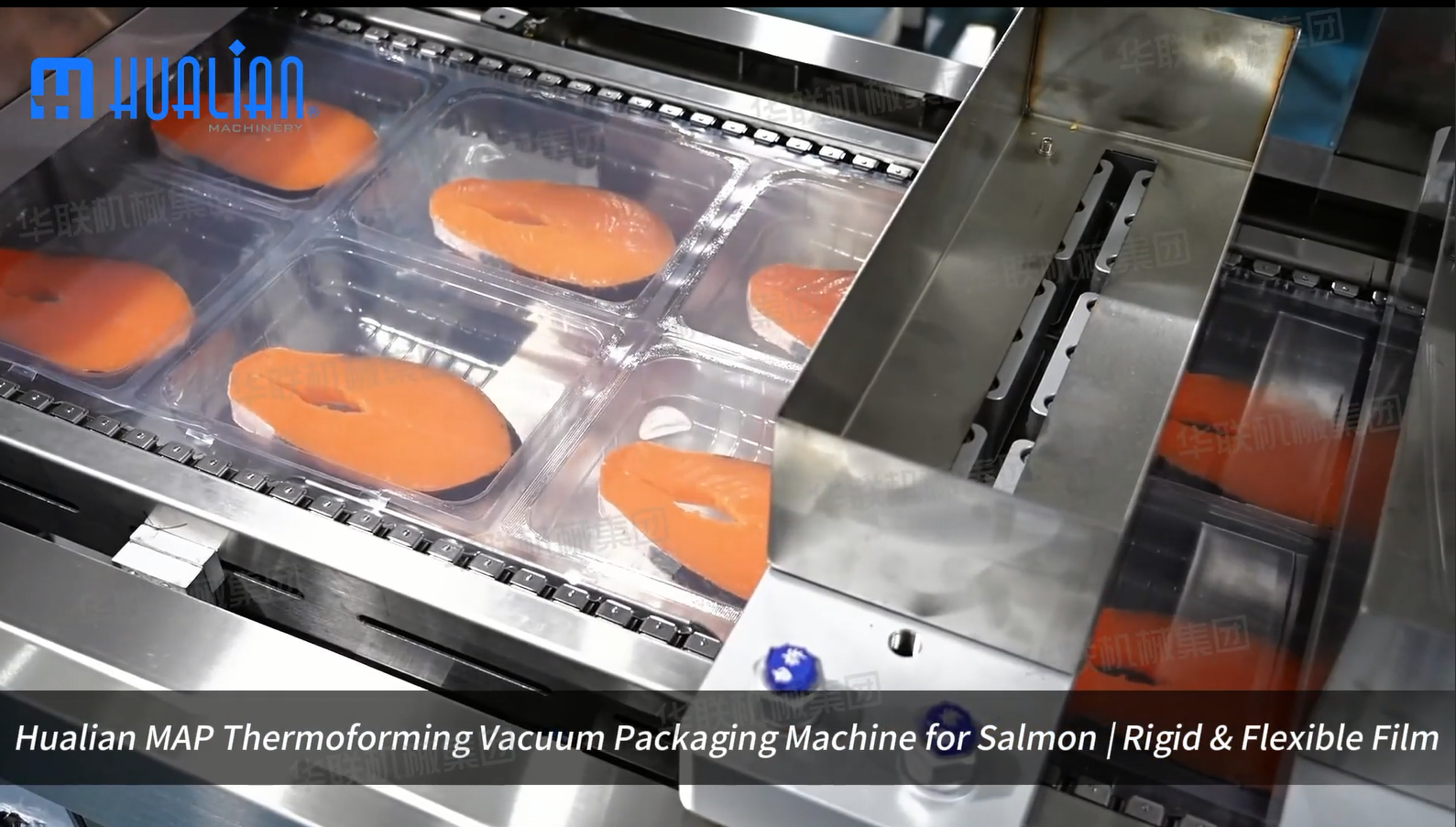

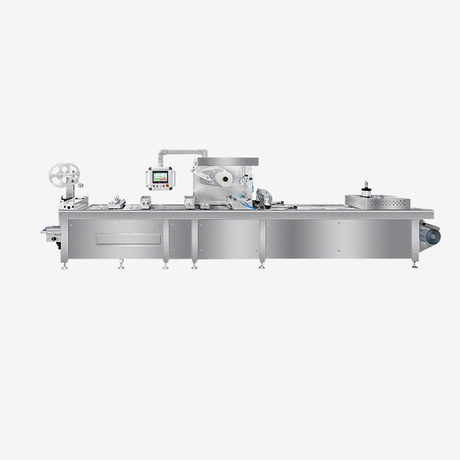

Hualian HVR-420T(Q) Rigid Film MAP Thermoforming Vacuum Packaging Machine for Salmon Seafood Ready Meals Meat
Hualian HVR-420T(Q) Rigid Film MAP Thermoforming Vacuum Packaging Machine for Salmon Seafood Ready Meals Meat

More

Automatic Compact Economical Map Thermoforming Vacuum Packaging Machine For Food HVR-320A(Q)
Automatic Compact Economical Map Thermoforming Vacuum Packaging Machine For Food HVR-320A(Q)

More

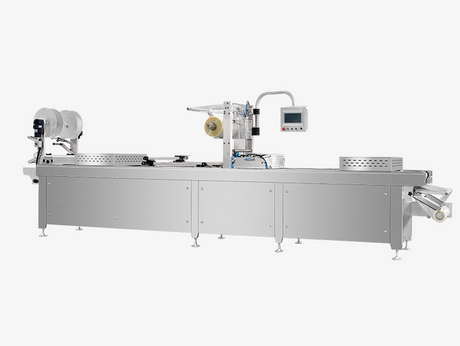

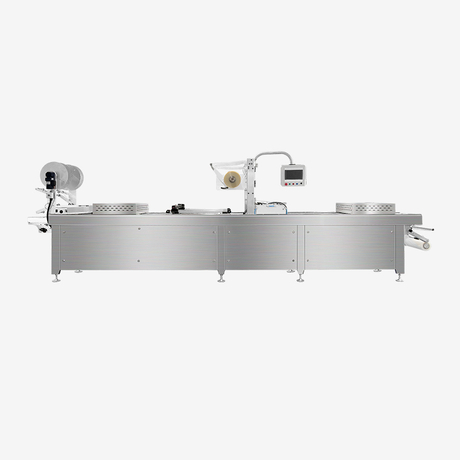

Hualian HVR-420A-U Automatic High-output Map Thermoforming Vacuum Packaging Machines For Food Packaging
Hualian HVR-420A-U Automatic High-output Map Thermoforming Vacuum Packaging Machines For Food Packaging

More

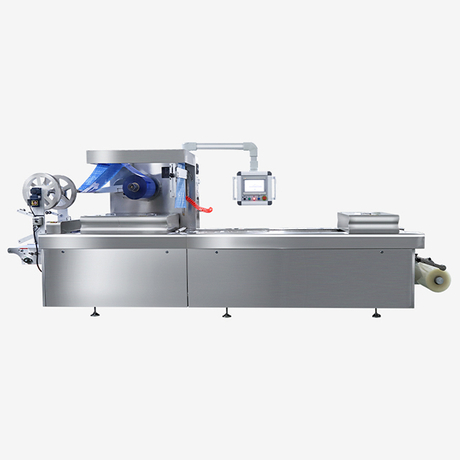

Automatic Vacuum Thermoforming Packaging Machine For Food HVR-420A
