Map Tray Sealer From Hualian

Hualian tray sealer

Hualian Tray Sealing Machine Series

Hualian's tray sealing machines series support 3 types of packaging technologies: Modified Atmosphere Packaging (MAP), Vacuum Skin Packaging (VSP), and top sealing. Based on the specific characteristics of each product, the most suitable packaging method can be selected to maximize the freshness of the food and extend its shelf life.

Hualian MAP tray sealer uses a 304 stainless steel shell and a food-grade aluminum mold, which has strong corrosion resistance and durability. And it uses a servo motor drive to achieve high-precision control, achieving higher packaging efficiency and production throughput. It is used to seal PP, PE and Paper + PE trays for packaging various fresh product trays, fast food trays, student lunch boxes, etc. And widely used in the pre-prepared food, catering, supermarkets and other industries.

To meet the different needs of the market for tray sealing machines,Hualian has launched a series of tray sealer machines with different speeds, sizes and outputs. It has greatly improved the quality, speed and precision, as well as the reduction of film use. And It can operate fully automatically and work in coordination with the production line.

Tabletop Map Tray Sealer Series

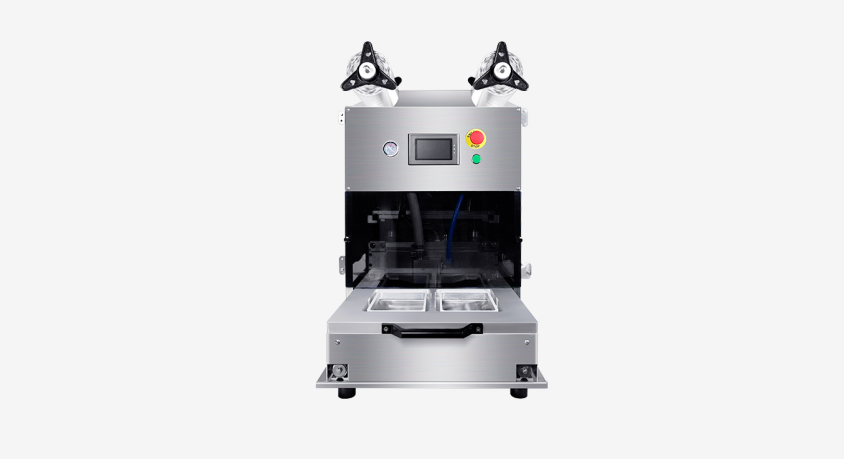

EV-272 Table MAP Tray Sealer

Our compact tabletop tray sealer is suitable for small-batch production across various settings. It supports Vacuum MAP packaging and allows for rapid mold changes within 5–10 minutes. The PLC touchscreen interface is user-friendly and ideal for beginners. And it operates entirely on electric power, eliminating the need for compressed air.

Semi-automatic Map Tray Sealer Series

Hualian semi-automatic tray vacuum machine series has a compact structure and a small footprint, which is suitable for small and medium-sized factories with relatively small output. It adopts PLC smart panel, which is easy to control and convenient to operate. At the same time, the connection between the upper and lower molds of this series of tray sealer machines does not require any air pipes and lines, which greatly guarantees the high vacuum degree in the mold, without worrying about air leakage.

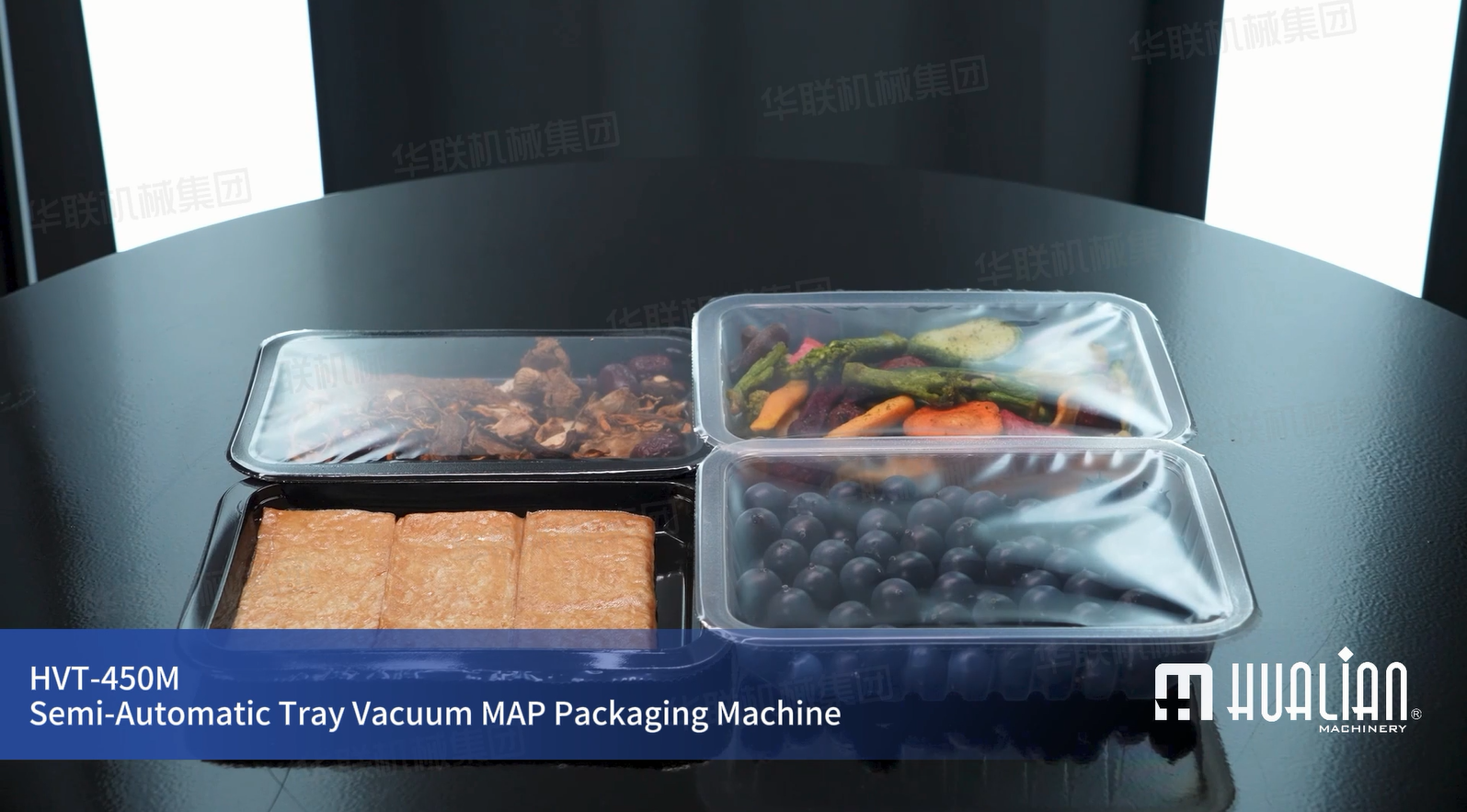

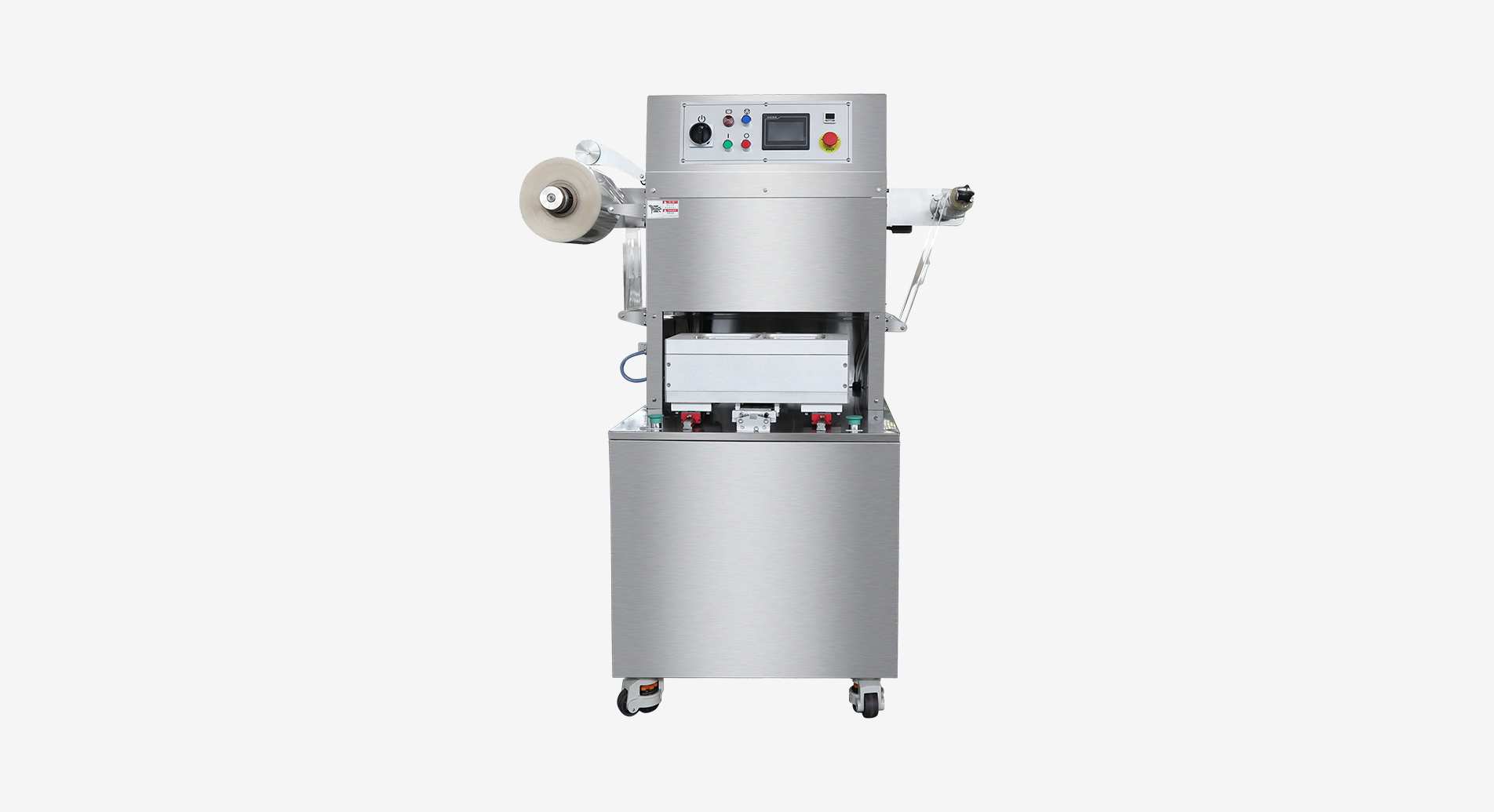

HVT-450M MAP Tray Sealer

This is our hot-selling food MAP tray sealer at a more affordable price. The model has a lower working chamber, which needs to wait for the entire working cycle of this chamber before taking out the packaged tray box or putting in the tray box to be packaged. It is more suitable for small-scale production.

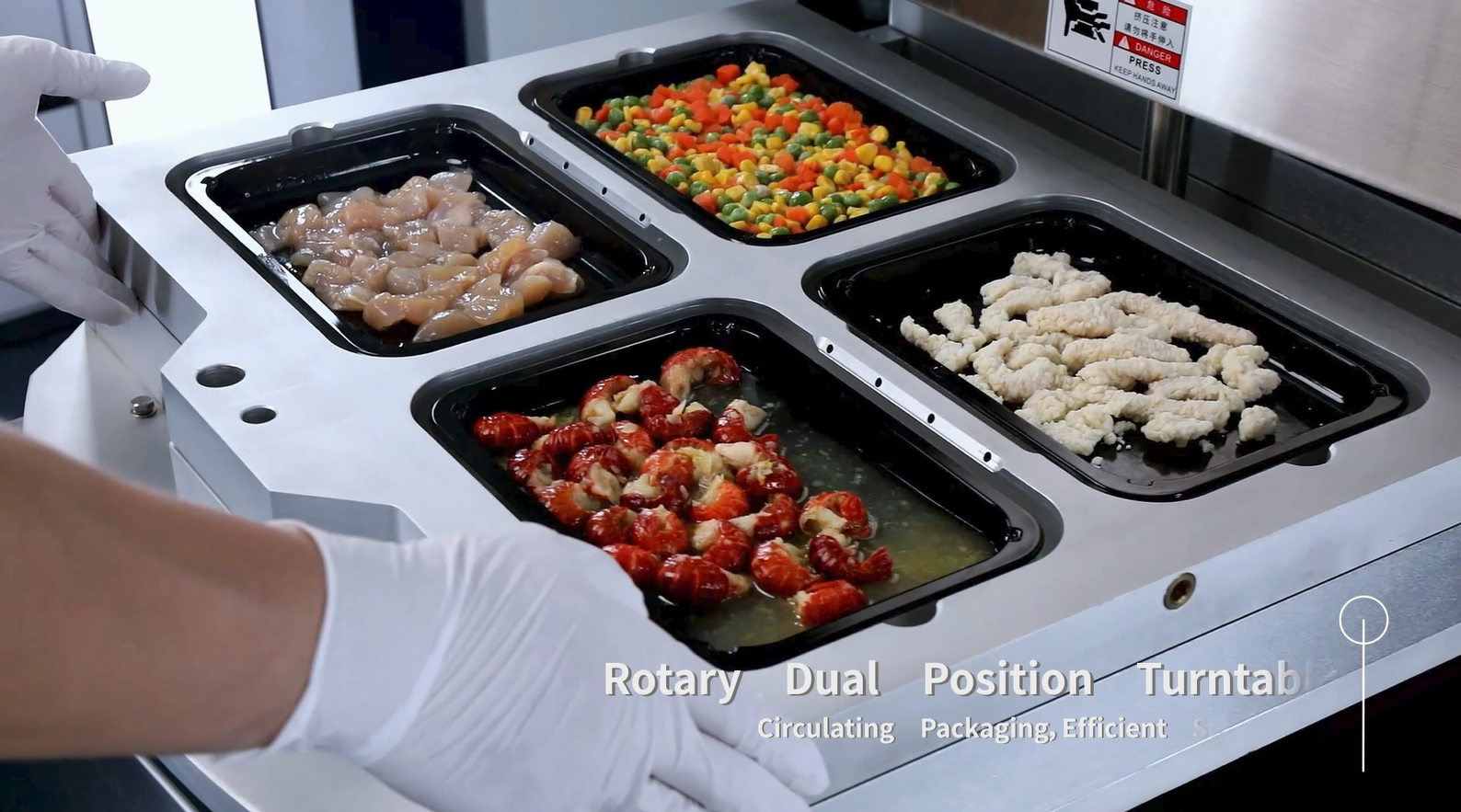

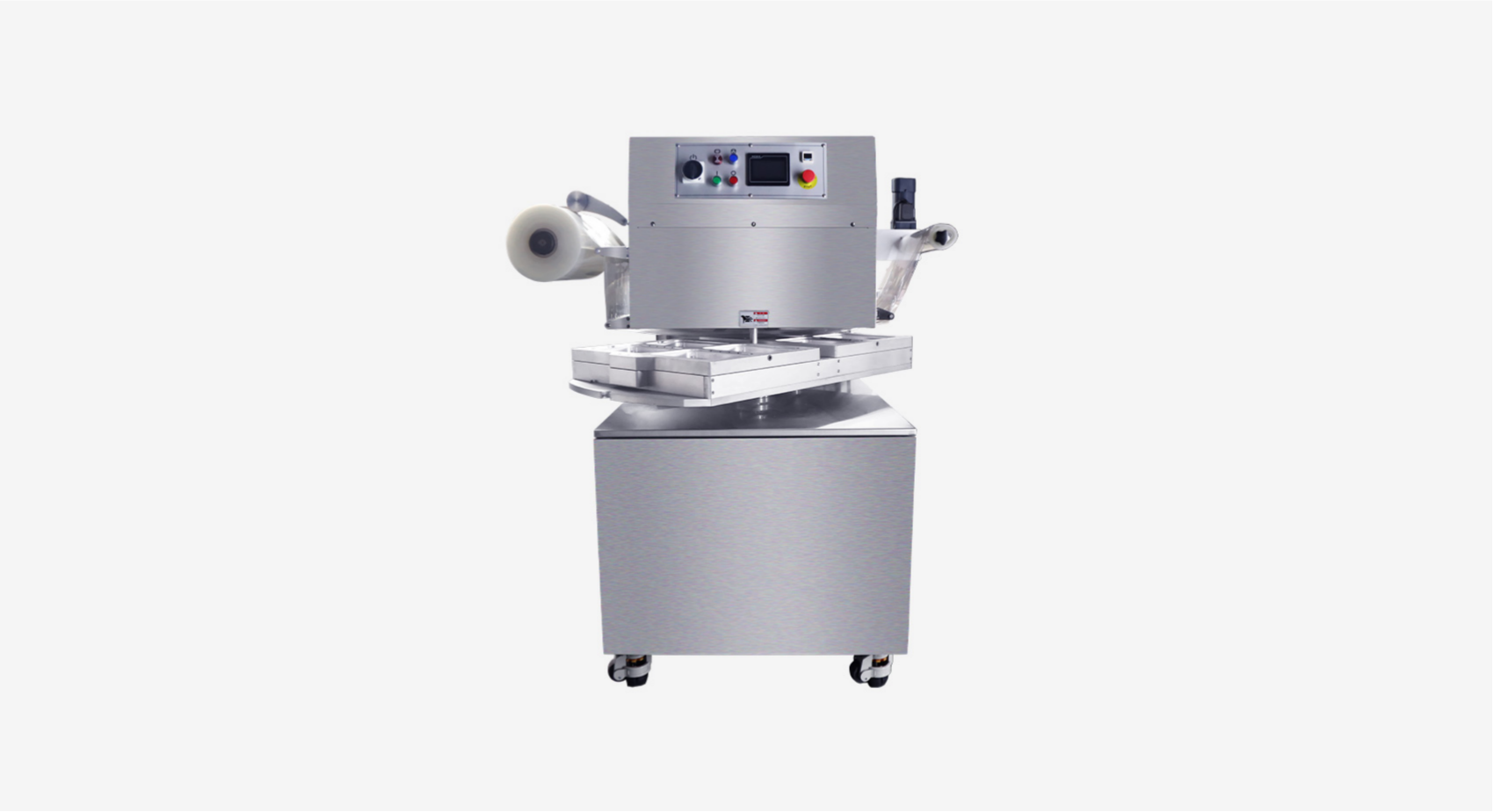

HVT-450R Rotary MAP Tray Sealer

This rotary tray sealing machine is dual mold more efficient than the traditional HVT-M and it can be customized to achieve MAP sealing even if the cargo height is 30 mm higher than the tray. We use a rotary double-station turntable in the lower mold of this tray sealer machine, which can cycle and alternately package continuously. Not only reducing the waiting time for packaging, but also increasing the production capacity by about 35%-45%. This tray sealer is designed to solve the needs of small factories pursuing higher speeds and higher outputs but with a lower budget. This is a good choice for you.

Full Automatic Tray Sealer Machine Series

Hualian's fully automatic tray vacuum machine series has extremely high working efficiency, has made great improvements in speed and precision, can be fully automated and integrated into existing production lines, and is suitable for large-scale enterprise assembly line production with high output.

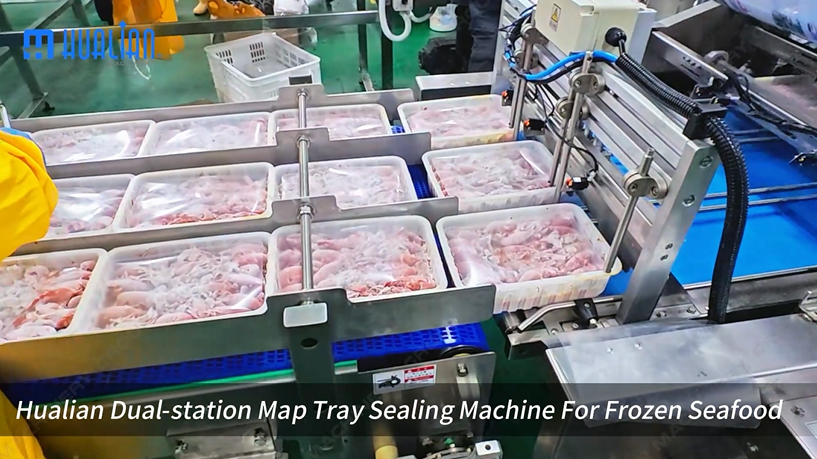

HVT-450A Fully Automatic Tray Sealer Machine


Hualian fully automatic MAP vacuum tray sealer can be equipped with a conveying and sorting line at the front end and a discharging and sorting line at the rear end, which can realize fully automated assembly line operation and greatly improve efficiency. And a sensor switch is installed at the entrance for induction alarm, which greatly ensures the accuracy and safety of packaging.

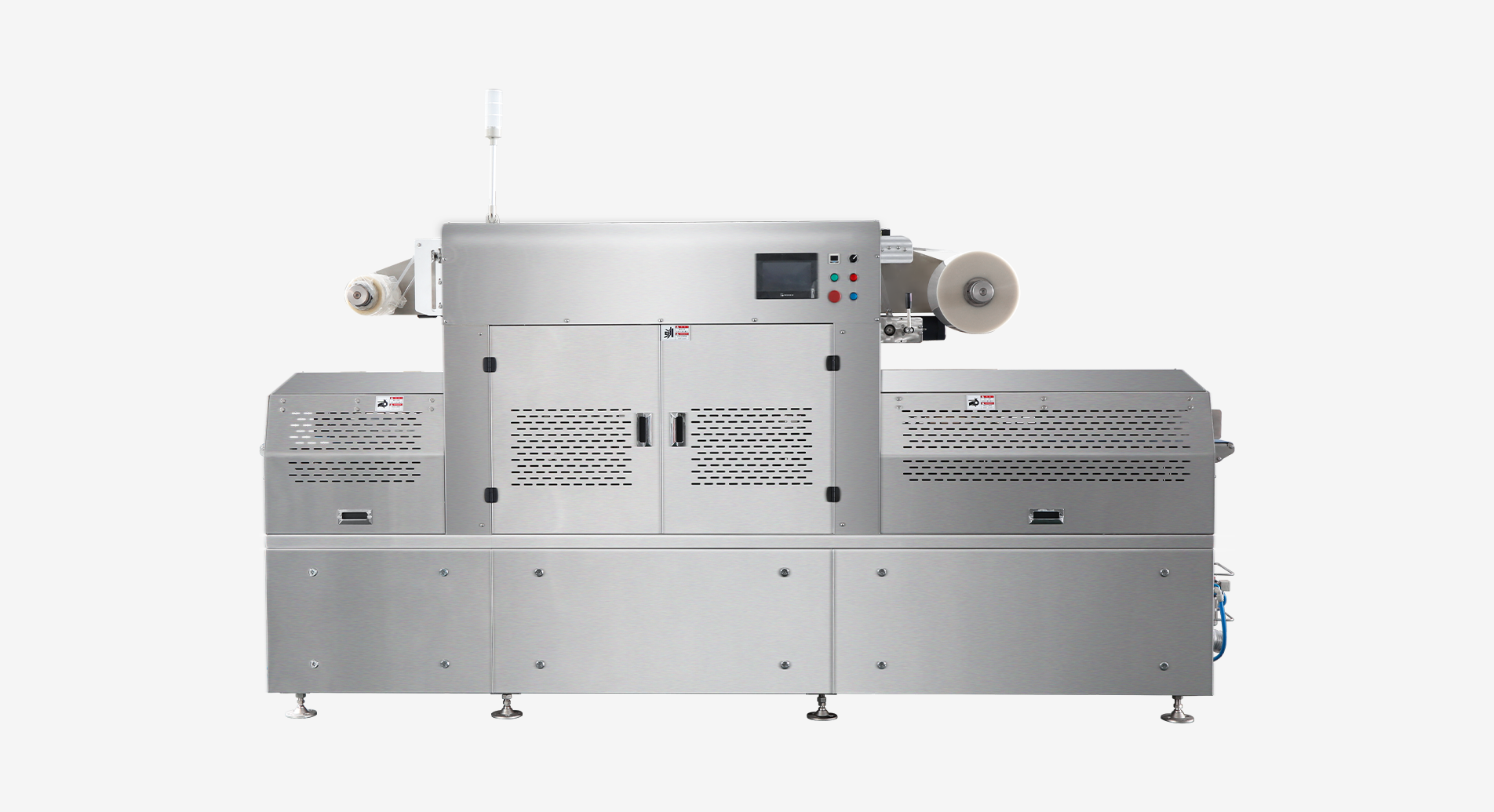

HVT-350AZ One-line MAP Tray Packaging Machine


Hualian linear tray map packaging machine with a high operating speed (1800-2400 pieces/hour) and production capacity. The linear structure is more convenient for assembly line operation with packaging lines, and the linear conveyor belt and mold are easier to clean and maintain. If you need higher speed and production capacity, you can choose a larger vacuum pump to increase the vacuum speed. And this model is equipped with an external pump for easy replacement, easily achieving high speed and high production capacity!

How To Choose The Right Tray Sealer Models

If you are in the market for a suitable tray-sealing machine, please provide the following information: the type and dimensions of your product, your packaging size requirements, the specific packaging functions you need (such as MAP, VSP, or simple sealing), and your target daily production output. And please indicate whether you require features like date printing, labeling, or other auxiliary functions. Finally, please specify your available floor space and budget. With these details, we can recommend the most appropriate packaging machine for your needs.

Our current product lineup includes the EV series tabletop tray sealers, the HVT-M/R series semi-automatic rotary tray sealers, and the HVT-A series fully automatic tray sealers. These models are categorized primarily based on packaging speed and product dimensions. All three series can be configured with three different packaging functions(MAP, VSP, Only Sealing). For small businesses, supermarkets, or operations with limited floor space and lower daily production requirements, our EV series tabletop tray sealers is an excellent choice. For small-to-medium-sized food processing or catering facilities with moderate production needs, we offer the HVT-M or HVT-R rotary tray sealer series; the HVT-R, in particular, features a rotary design that offers higher efficiency, making it a preferred choice in the food service industry. For high-volume production requirements or scenarios that necessitate integration into an existing production line, HVT-A fully automatic series or HVT-AZ inline (linear) series would be the most suitable options.

Hualian Tray Sealer Packaging Technology(Option)

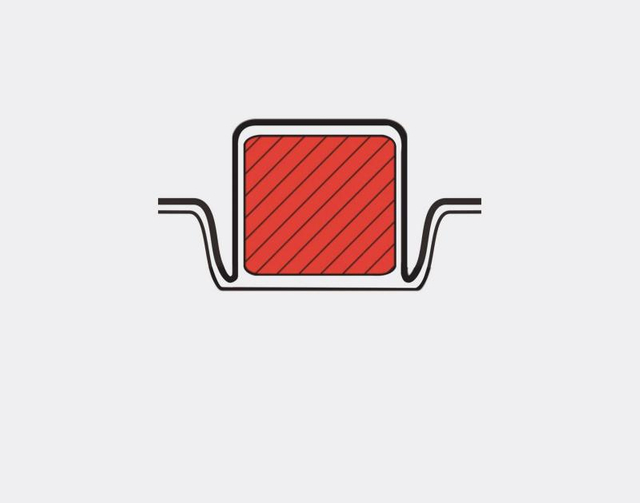

Sealed Only, Modified Atmosphere Packaging(MAP), Vacuum Sealed, Vacuum Skin Packaging(VSP), Extra Skin Packaging, etc.

Hualian Tray Sealer Customization(Option)

  • ︎ Mold Changeable
    The size, shape and depth of the mold can be customized
  • Packaging Styles
    MAP/VSP/Flushing/Vacuum/Sealing
  • Waterproof Feature
    The equipment can be configured for partial or complete waterproofing.
  • Infeed|Outfeed Conveyor
    Equipped with an Infeed or Outfeed conveyor to form an assembly line
  • Easy Tear
    Customizable tear-off edges of different shapes
  • Coding
    Printing on the film surface
  • Language Customization
    Customizable language according to your country
  • Water Cooling
    Water-cooled packaging effect is more stable for oil

Hualian MAP Tray Sealer One-stop Service

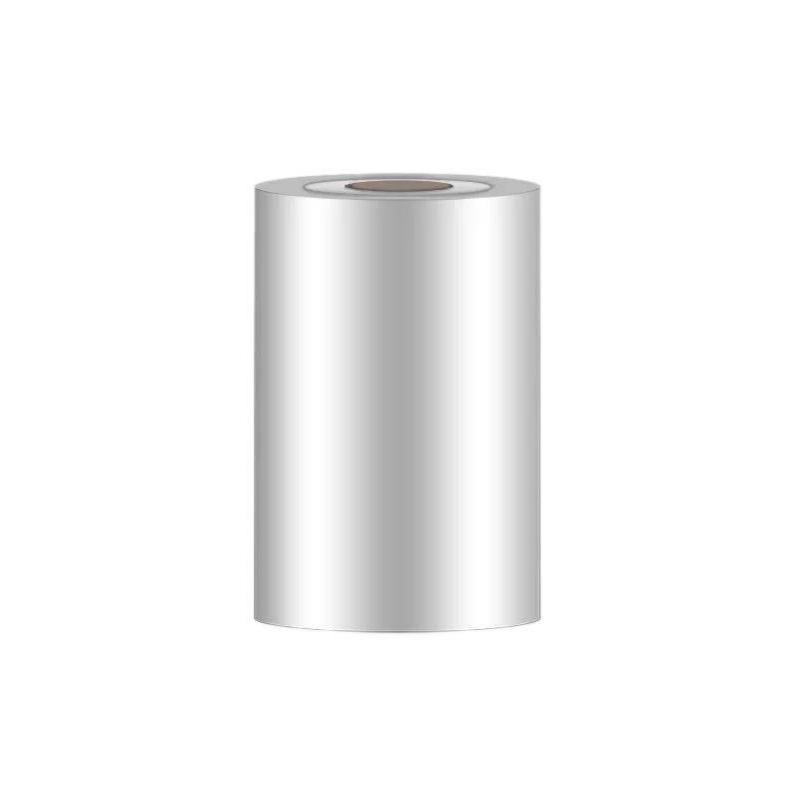

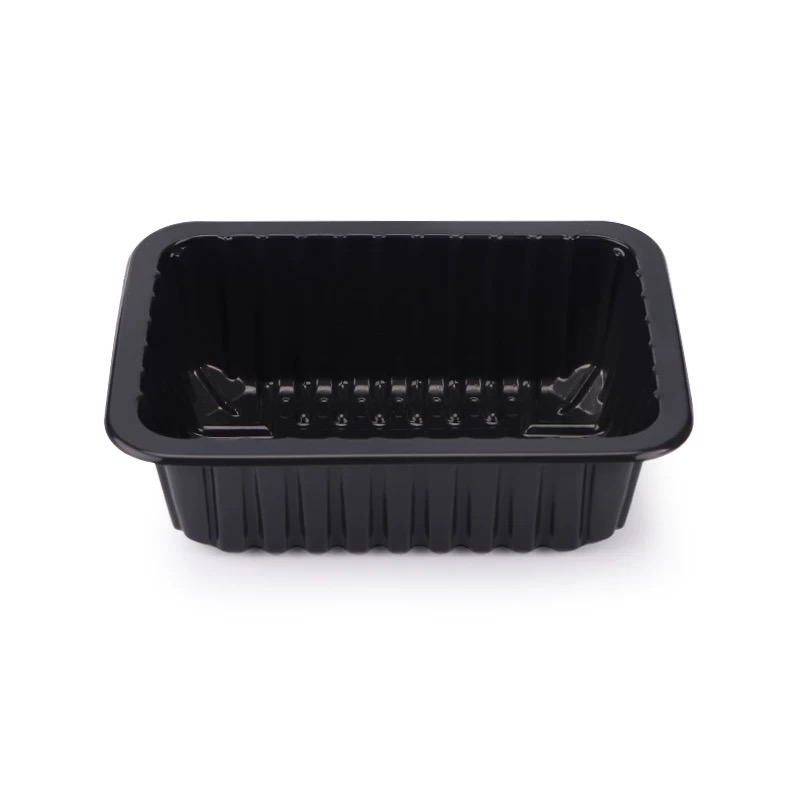

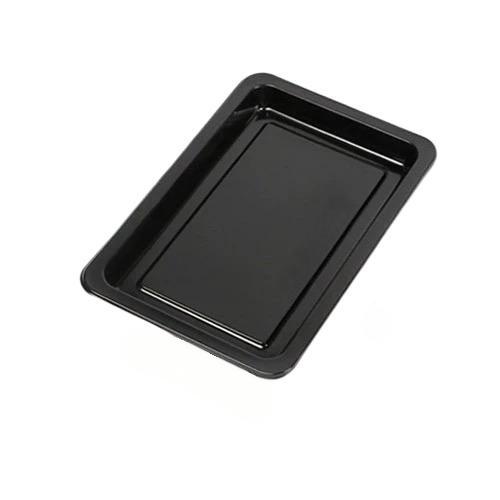

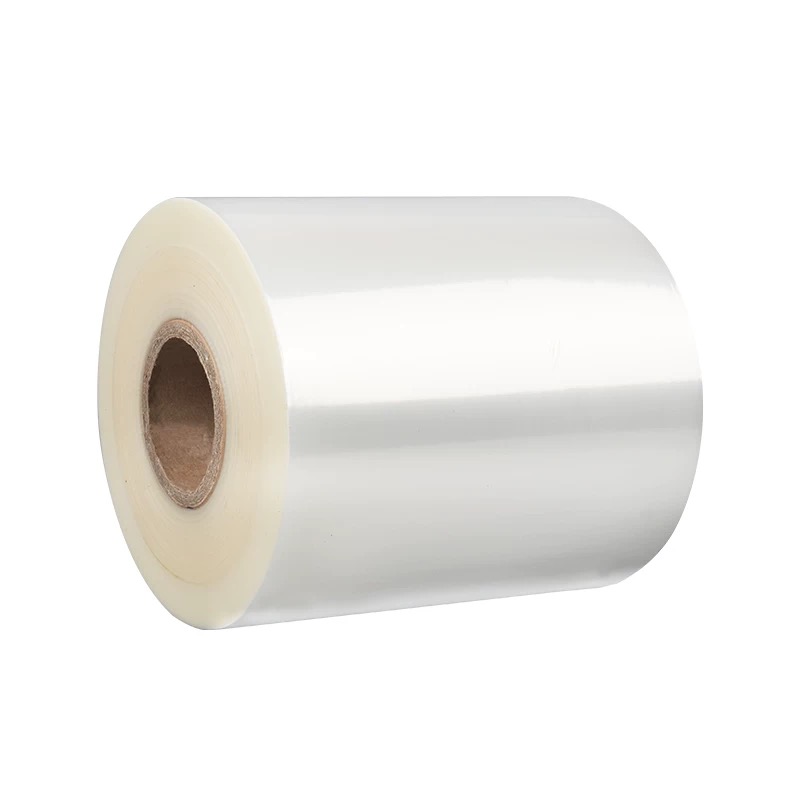

If you are concerned about how to choose the corresponding consumables after purchasing the tray sealer machine, we can offer you a one-stop solution. Whether it's trays, films, or wearables, we can provide corresponding recommendations. If you have any additional customization requirements, pls let us know.

Hualian MAP Tray Sealer Customer Case

Over 1000+ Clients Choose Hualian to Drive Efficient and Precise Packaging Across 9 Major Industries.

Hualian Map Tray Sealer Feature

  • High vacuum degree:  Vacuum rate reaches more than 99.5%
    Whole line solution:  Hualian has the ability to design whole line solutions for the front and back sections
    High production capacity:  According to the continuous update and iteration of Hualian tray sealer machine, the production capacity has been increased by more than 3-4 times
    High safety:  The Map tray vacuum sealer machine has real-time fault alarm prompts and is equipped with an emergency switch to ensure the safety of the machine and personnel
    Dual-mode vacuum controller:  Two modes are available, digital pressure gauge control and time control, real-time monitoring of pressure changes in the mold
    Eco-saving and environmental protection:  Equipped with automatic film supply/film collection system, film waste is minimized
    High quality:  Using higher performance and more durable accessories and electrical components from major brands
    Human-computer interaction:  PLC intelligent control panel, all parameters are adjustable, easy and fast to operate
    Easy to operate:  Easy to operate without training
    Packaging effect:  Hualian map packaging machine adopts precise film delivery system, precise film lamination, beautiful and flat sealing and firm, which can not only better protect the product, but also can be used for shelf display​​​​​​​
    Film delivery method:  Two modes of fixed length and color mark tracking are available to achieve accurate and efficient lamination

Hualian Tray Sealer Standard Specification

Model EV-272 HVT-450M/2 HVT-450R HVT-450A HVT-350AZ
Voltage(V/Hz) 220/50 110/60 AC 380/50(3PH) AC 380/50(3PH) AC 380/50(3PH) AC 380/50(3PH)
Air Compressor(Mpa) - 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8
Transmission Power(KW) - 0.75 - 0.75 -
Capacity(times/min) 2-3 Only Sealing:7-8
Gas flushing+Sealing: 3-5
MAP: 2-3
VSP: 2-2.5
Only Sealing:7-8
Gas flushing+Sealing: 3-5
MAP: 2-3
VSP: 2-2.5
Only Sealing:8-10
Gas flushing+Sealing: 3-5
MAP: 2-3
VSP: 2-3
Gas flushing+Sealing: 5-6
MAP:4-5
(with 360m³/h vacuum pump)
Gas Displacement Rate - ≥99.5% ≥99.5% ≥99.5% ≥99.5%
Max. Tray Size(L×W)(mm) 330×220 (1 trays/time)
220×150 (2 trays/time)
150×95 (3 trays/time)
370×370 (1 trays/time)
370×167.5 (2 trays/time)
370×100 (3 trays/time)
∞
390×250(2 trays/time)
250×180(4 trays/time)
 180×155(6 trays/time)
∞
390×280 (1 trays/time)
280×180 (2 trays/time)
280×110 (3 trays/time)
∞
290*170 (4 trays/cycle)
290*130 (5 trays/cycle)
∞
Max. Tray Height(mm) - 120 80 120 80
Max. Width of Roll Film(mm) 270 450 450 450 350
Max. Diameter of Roll Film(mm) 220 300 300 300 300
Max. Inner Diameter of Reel(mm) - 76 76 76 76
External Dimension (L×W×H)(mm) 1000×620×940 1270×1135×1575 1430×1265×1540 2800×950×1620     3535X900X1720
Net Weight (kg) 160 650 750 782 850

Hualian Tray Sealer FAQ

  • Where Can I Buy Reliable Map Sealing Equipment?

    You can search for relevant product keywords on Google and select suppliers based on their search rankings. Since Google evaluates results using various criteria—such as user experience and the authority of a supplier’s website—the suppliers that appear are generally of higher quality. Alternatively, you can use other e-commerce platforms(Such as Alibaba,MIC,etc); however, as these are third-party sites, their rankings may be heavily influenced by advertising, so you will need to conduct further due diligence to verify the actual capabilities of any given supplier.

  • How Do I Choose The Right Map Sealer for My Packaging Needs?

    First, you need to clarify the following details: the type and dimensions of your product, packaging specifications, the specific packaging functions required (such as Modified Atmosphere Packaging/MAP, Vacuum Skin Packaging/VSP, or standard sealing), and your expected daily production volume. Additionally, please indicate whether you require features like date printing, labeling, or other auxiliary functions. Finally, please provide information regarding your available floor space and budget range. Once you have defined these requirements, you can use them to filter and identify the appropriate tray-sealing packaging equipment for your needs.

  • Can You Explain How a Map Machine Works in Packaging?

    Modified Atmosphere Packaging (MAP) machines operate by replacing the air inside a food container with a specific blend of gases—typically a mixture of two to four different gases, proportioned according to the characteristics of the food product. By altering the external environment surrounding the food, the process inhibits the growth and reproduction of bacteria (microorganisms), thereby extending the food's freshness or shelf life.

  • What is the difference between vacuum packaging, tray sealing and thermoforming packaging?

    Vacuum packaging works by extracting air from the vacuum bag so that it fits snugly against the food, thereby preserving freshness. The material costs are relatively low, and packaging equipment comes in various types—including tabletop, vertical, dual-chamber, and continuous models—each with different packaging speeds.
    Tray packaging includes various methods such as simple sealing, MAP, and VSP. It not only provides excellent freshness retention but also offers an attractive appearance, making it particularly suitable for high-end supermarkets.
    Thermoforming packaging includes both flexible and rigid film options, as well as various methods such as simple sealing, MAP, and VSP. Fully automated packaging significantly improves packaging efficiency and output.
  • How Long Does MAP Packaging Last?

    Modified Atmosphere Packaging (MAP) can extend the shelf life of food products by 3-5 times their original duration. The actual shelf life is determined by a variety of factors, including the specific gas mixture ratio used in the modified atmosphere, the storage environment, and the packaging materials.
