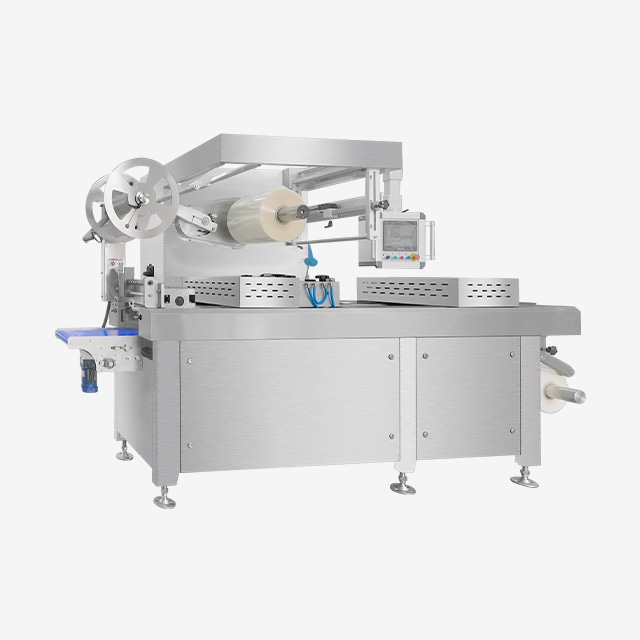

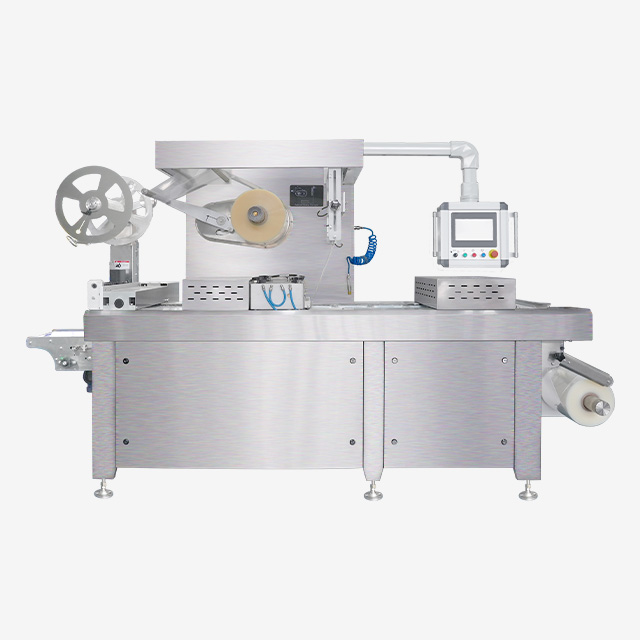

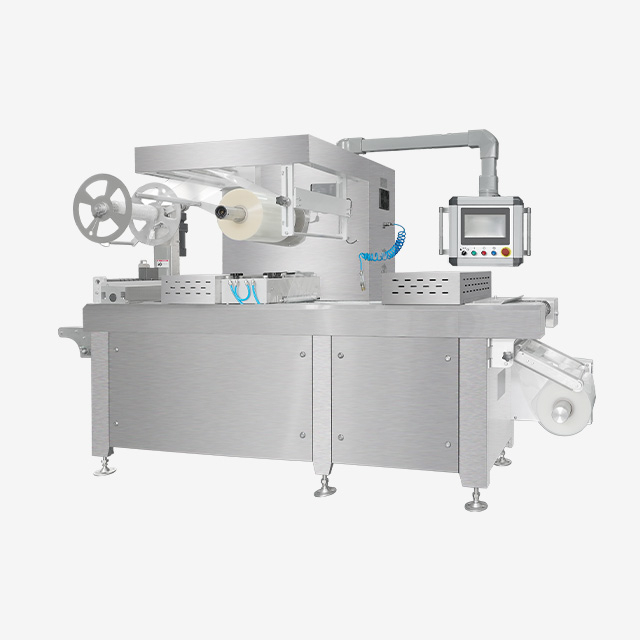

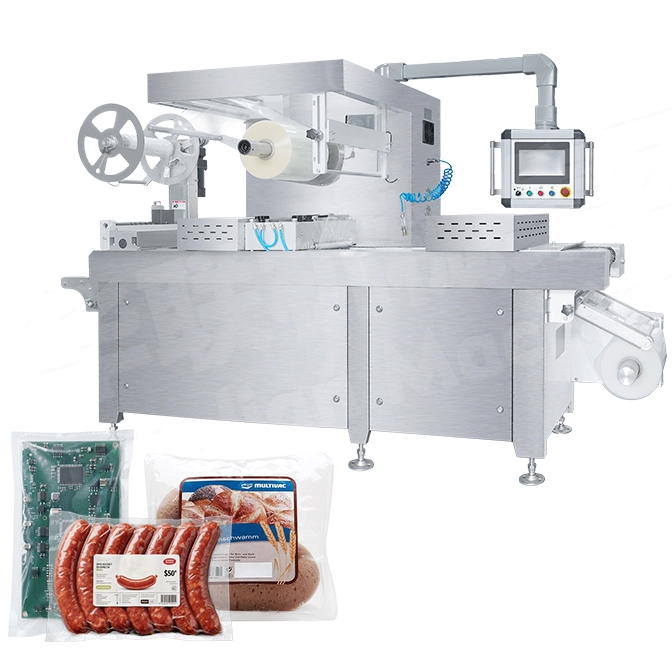

Automatic Compact Economical Map Thermoforming Vacuum Packaging Machine For Food HVR-320A(Q)

  • 3M Compact Body
  • High Speed: 4-6 Times/Min
  • Low Energy Consumption
  • Adoption of combined moulds
  • Simple Smart Control
  • Integration of forming,stuffing,sealing,slitting,etc.
  • 304 Stainless Steel & Aluminum Alloy Construction
  • Smooth and wrinkle-free film feeding,quick film change
Availability:
Quantity:
  • HVR-320A(Q)

  • Hualian

  • Bags

  • Vacuum

Description


Hualian New Auto Compact Map Thermoforming Vacuum Packaging Machine


1. Product Description

This thermoforming packaging machine with compact 3M body is made of 304 stainless steel, high quality at a favorable price. It allows for easy mold replacement, one machine for multiple uses. And it also equipped with a 200m3/h BUSCH vacuum pump and Extemal Vhiller, ensuring high production efficiency.

2. Features

  • Material: Made of 304 Stainless Steel and Aluminum Alloy

  • Sample Operation: 10.1-inch PLC touch screen for intuitive human-computer interaction

  • Multiple uses of one machine

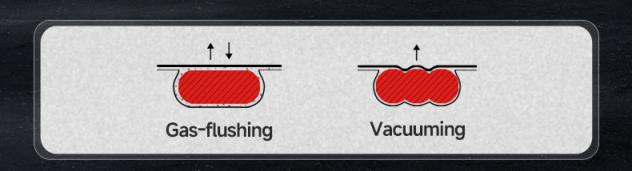

HVR-320A(Q) thermoforming packaging machineGas flushing(Map) or Vacuuming

Hualian thermoforming packaging machine

The Mold is Replaceable

Product Detail


Benefit Of Hualian Thermoforming Packaging Machine For Food


Automatic thermoforming packaging machine

High Efficiency

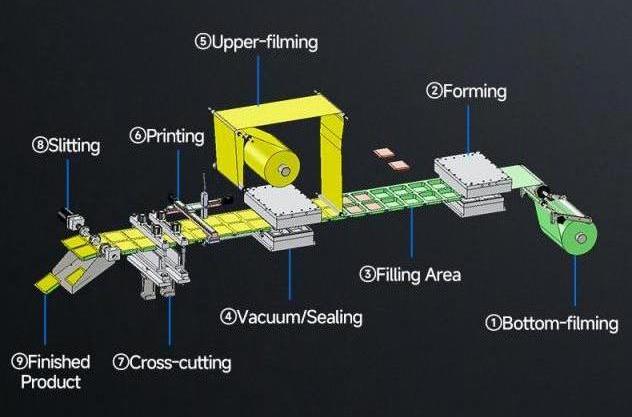

This automatic thermoforming packaging machine integrates the whole process of filling,stuffing,sealing and slitting,etc. And the machine is equipped with a 200m3/h BUSCH vacuum pump and an external cooler, which has high production efficiency and improves the factory's production capacity.

thermoforming packaging machine details 02

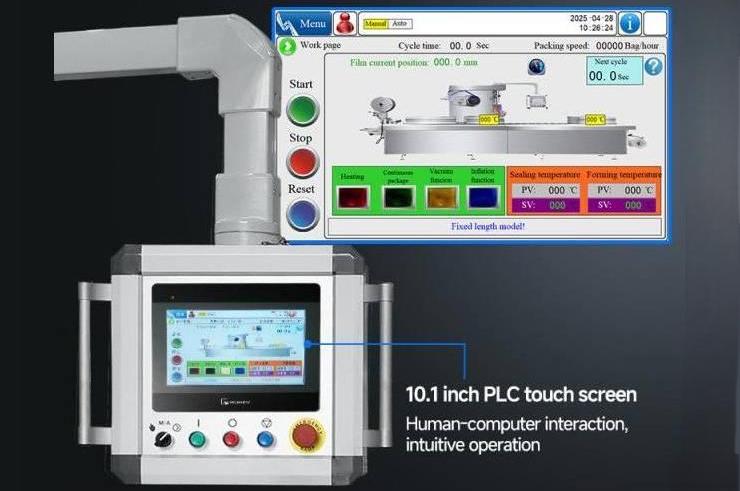

Simple Smart Control

The 10.1-inch PLC touch screen enables multi-functional Settings, with simple operation and intuitive human-machine interaction.



thermoforming packaging machine details 03

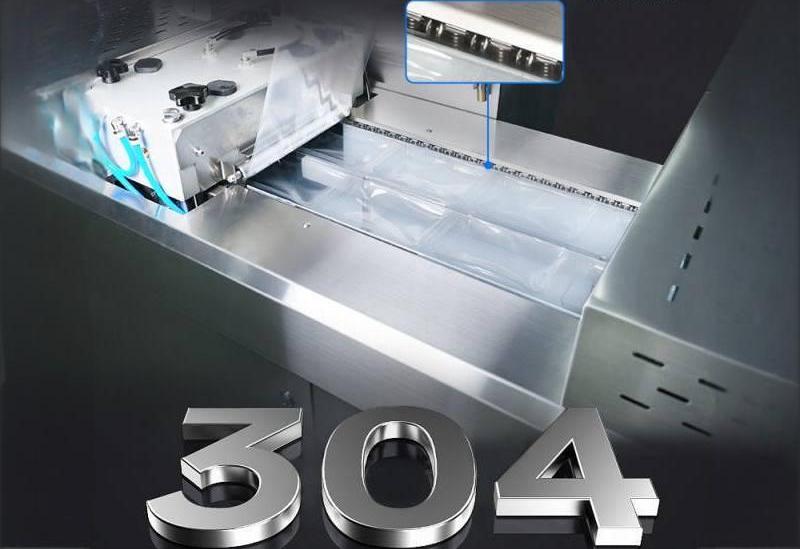

304 Stainless Steel & Aluminum Alloy Construction

This food thermoforming packing machine is made of 304 Stainless Steel and Aluminum Alloy, it not only meets high hygiene standards, but also has a smooth surface and is easy to clean. And stainless steel is corrosion-resistant, which can extend the service life of the equipment and reduce costs.

thermoforming packaging machine 04

Food-grade Material And Stable Structure

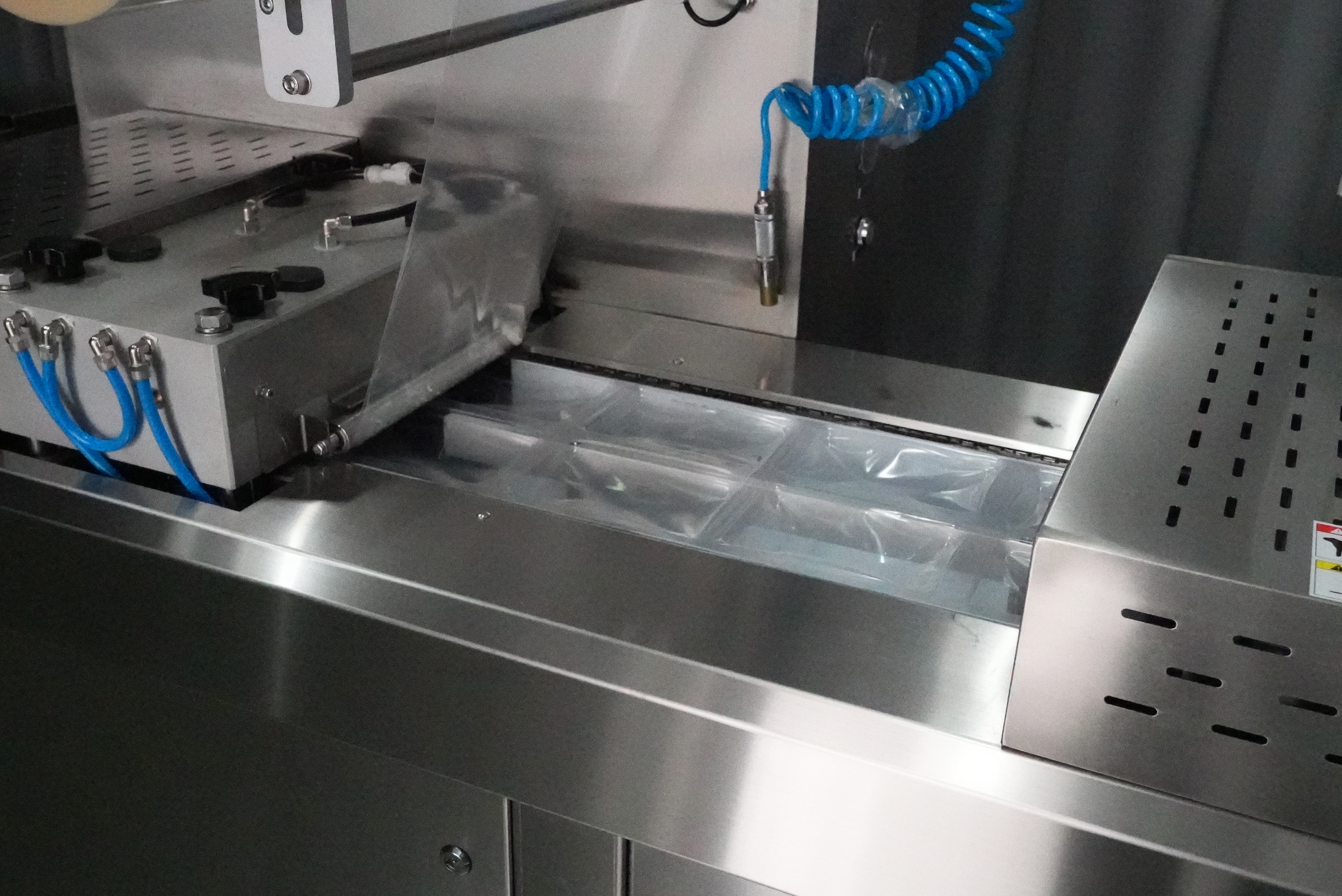

This thermoforming packer is made of 304 Stainless Steel and Aluminum Alloy,balancing structural durability with lightweight design. It features an imported film clamping chain that delivers strong clamping force, ensuring stable film holding and minimizing waste.

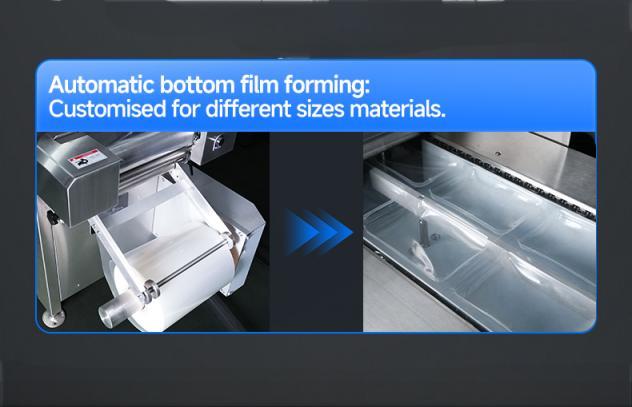

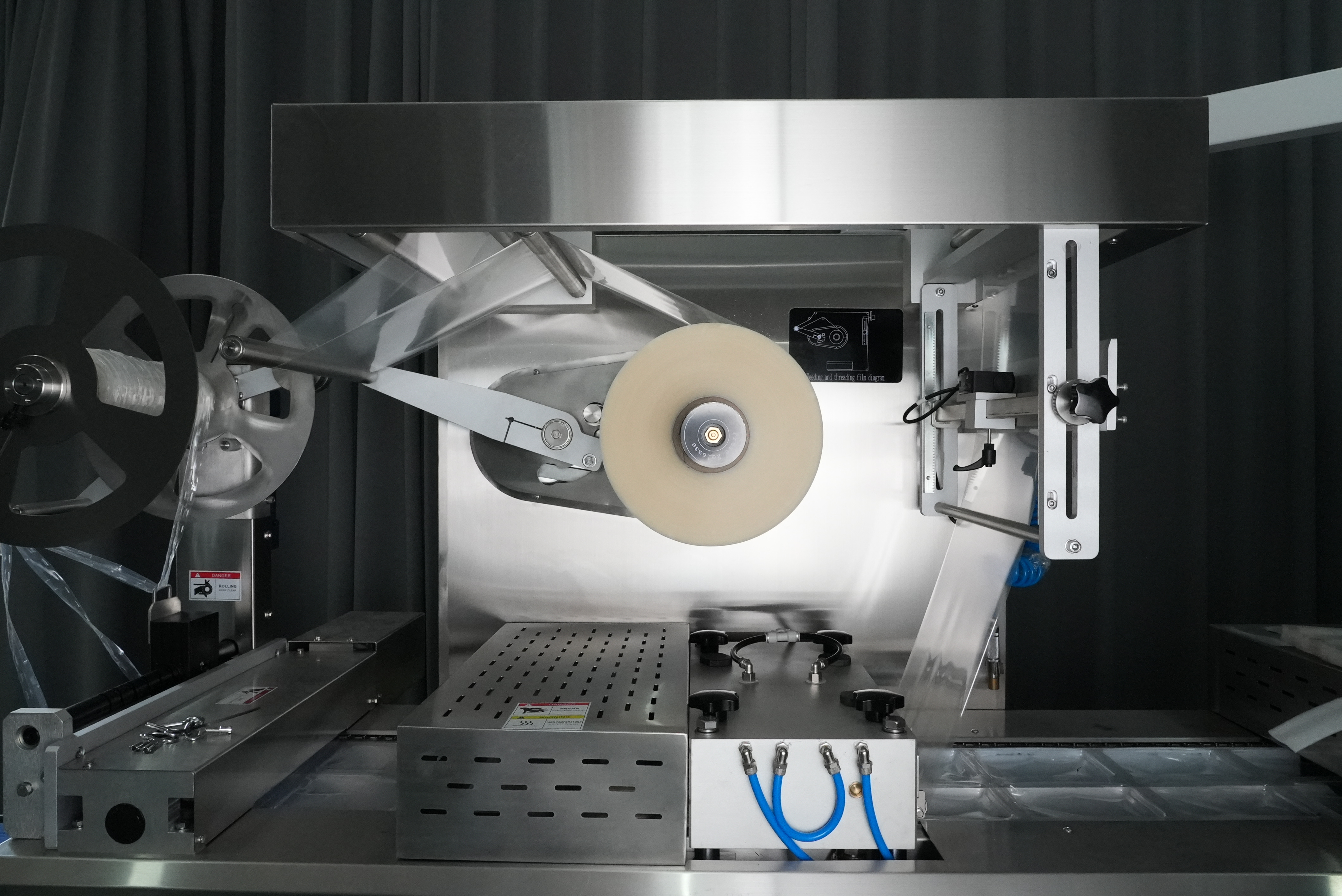

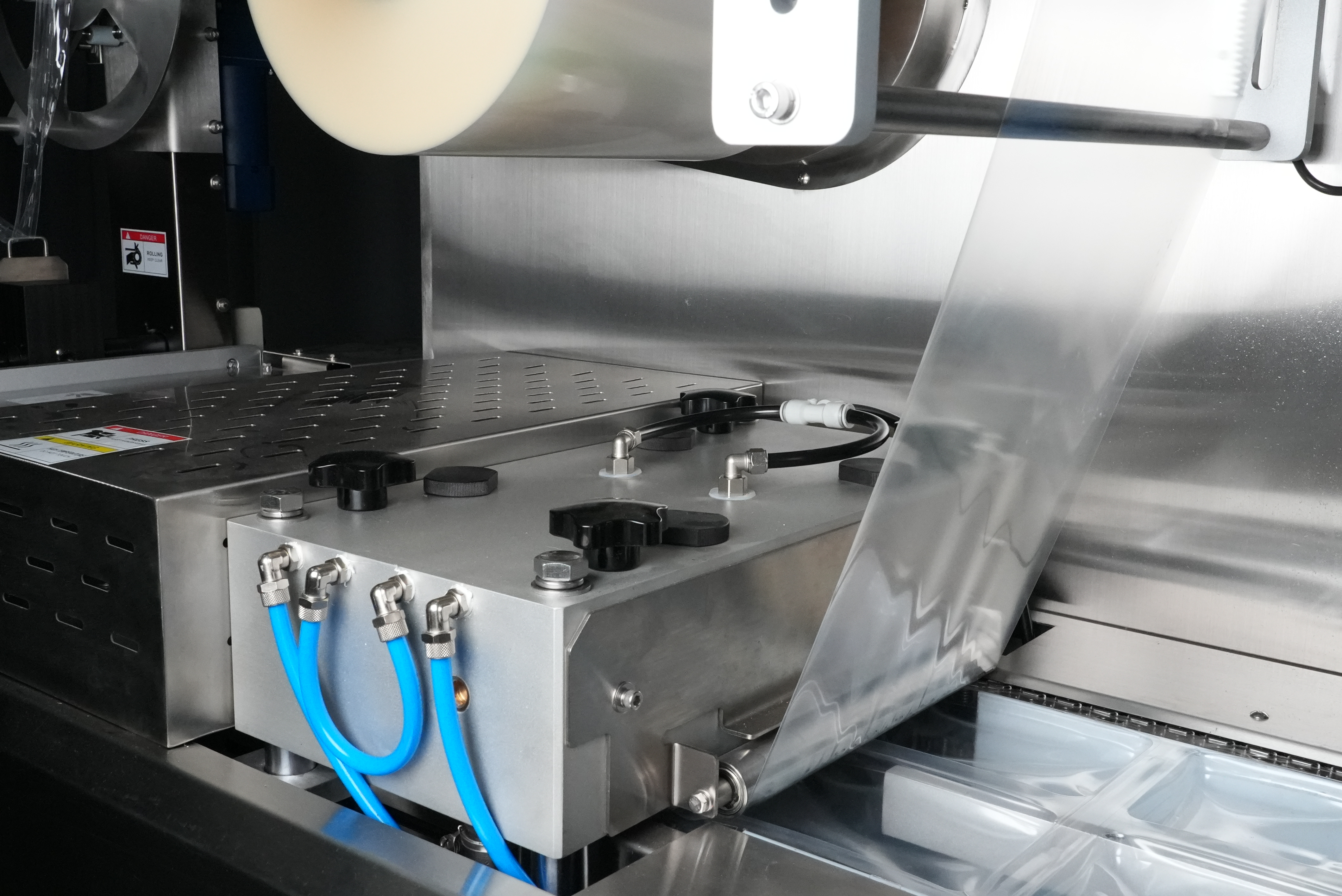

Precise Film Delivery, Efficient And Worry Free

This system truly understands your production needs. It allows the film to be transported in such a way that the packaging is flat and smooth. The film can be quickly changed with simple operations, greatly reducing downtime and waiting. What is even more commendable is its intelligent film-forming function. No matter what specifications of the material, it can be accurately adapted to meet your changing packaging needs.


HVR-320A(Q) Hualian thermoforming packaging machine for food packaging

Name1

HVR-320A(Q) Hualian thermoforming packaging machine for food packaging

Name2



High Energy Efficiency, Low Operation

This automatic thermoforming packaging machine is using Extermal Vhiller and 200m3/h Busch Vacuum Pump, high-quality core components provide packaging efficiency and reduce the long-term cost of the product.

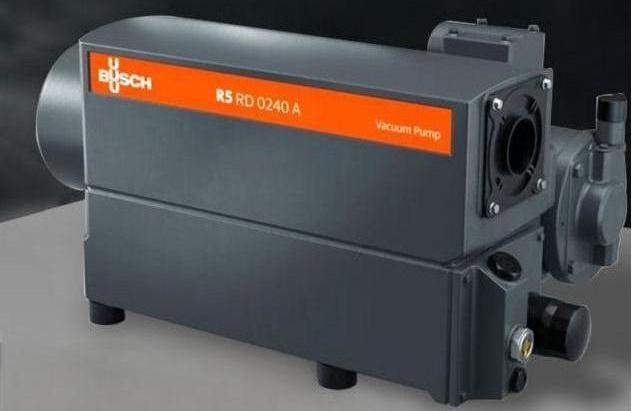

thermoforming packaging machine with Busch vacuum pump

BUSCH Vacuum Pump

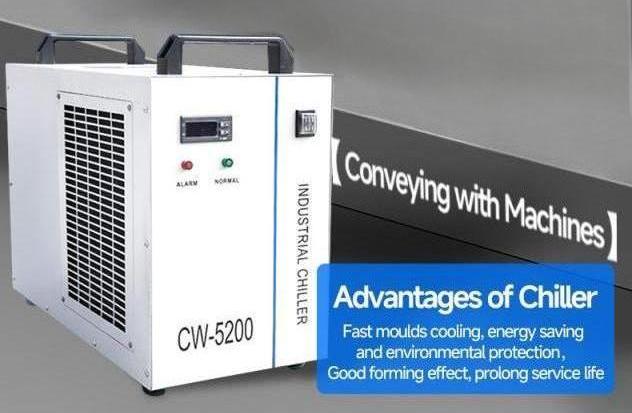

thermoforming packaging machine with Chiller

Industry Chiller

Customizable

  • Customizable Auto Thermoforming Packaging Machine – Optional Labeling Printing, Cross-Cut Sealing Styles (Toothed/Flat/Easy Tear), and Automatic Feeding device.

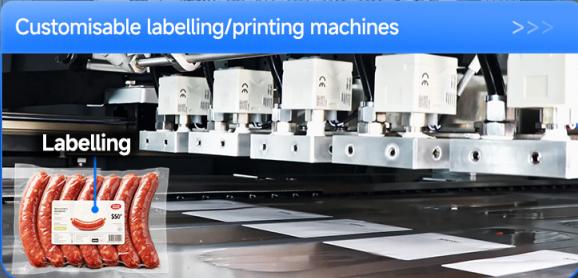

thermoforming packaging machine with labeling machine

Labeling or Printing Machine

thermoforming packaging machine with Cross-cut sealing styles

Cross-ut Sealing Styles

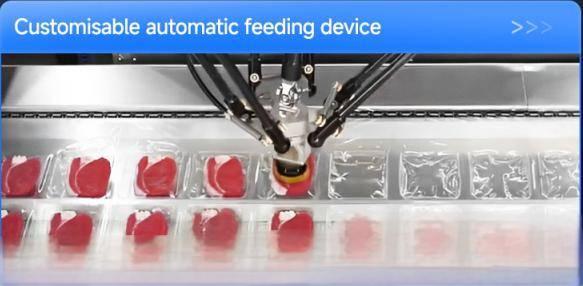

thermoforming packaging machine with Feeding device

Feeding Device



Hualian company Introduction

Parameters

Model

HVR-320A(Q)

Supply Voltage

380V/50HZ 3P

Sealing Power(W)

2000

Air Pressure(Mpa)

0.5-0.8

Upper Film Width(mm)

292

Bottom Film Width(mm)

322

Chamber Size(L*W)(mm)

284*(200-400)

Capacity(times/min)

Vacuum+Heat Sealing 4-6 times/min

Pump Exhaust Capacity(m3/h)

200

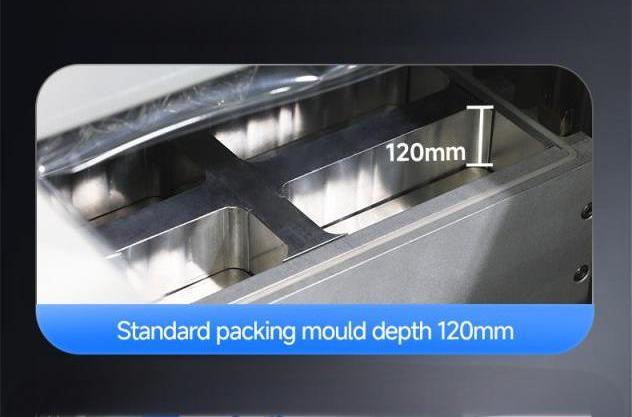

Max Forming Depth(mm)

≤120

Dimension(L*W*H)(mm)

3012*1014*1905
