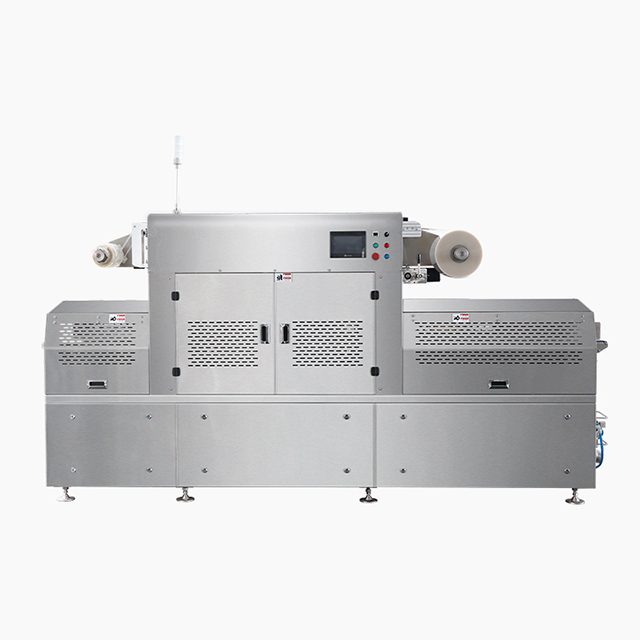

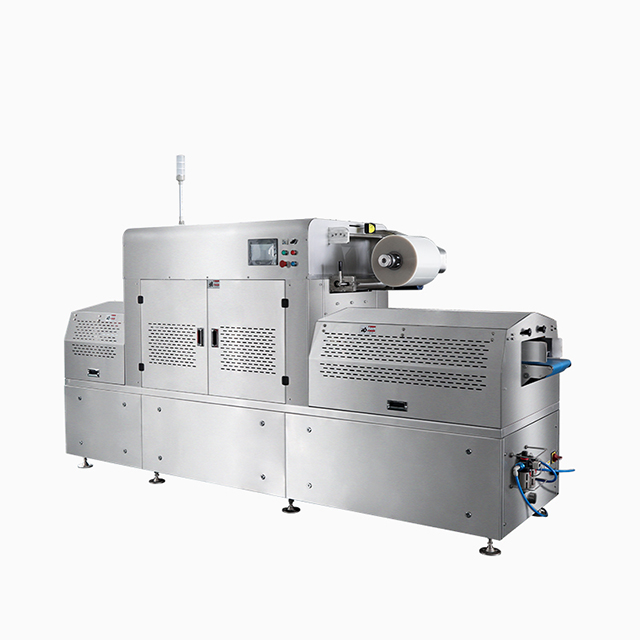

Linear Type Tray Vacuum Packaging Machine HVT-350AZ

Voltage (V/Hz)

380/50 3P

Power (KW)

9 (exclude vacuum pump)

Working Pressure (MPa)

0.6-0.8(Clean, dry, continuous air source)

Gas Replacement Ratio (%)

Over 99.5

Tray Size (mm) (L×W)

Max. 280X170 (4 trays/cycle)
Min. 180X100 (6 trays/cycle)

Max. Tray Height of Standard Machine (mm)

80

Max. Film Width (mm)

350

Max. Film Roll Outer Diameter (mm)

300

Film Roll Inner Core Diameter (mm)

76

Infeed and Out feed Conveyors Height from Floor (mm)

850

Capacity (cycles/min)

4-5 (MAP packing, with 360m3/h vacuum pump)

External Dimension (mm) (L×W×H)

3280X910X1620
