FROZEN FOOD PACKAGING SOLUTIONS

Home Solution Frozen Food Packaging Solutions

Reliable Packaging for Frozen Foods from Production to Cold-Chain Distribution

Frozen foods present various challenges, such as moisture loss and surface dehydration caused by excessive internal air; the intrusion of ice crystals, surface moisture, or product fragments into the sealing area; breakage of fragile products during dropping or conveying; and the risk of packaging film punctures from sharp bones or irregular edges.


Addressing these common pain points, Hualian comprehensively evaluates product characteristics—including shape, moisture content, unit weight, packaging material, target output, and packaging method. We offer vacuum packaging, tray sealing, and thermoforming sealing solutions for a wide range of products—from frozen meat and seafood to ready-made meals, vegetables, and baked goods—all designed to ensure reliable protection, high production efficiency, and consistent packaging quality. Furthermore, we provide complete line solutions that seamlessly integrate with coding, inspection, conveying, and case-packing processes, significantly boosting overall production efficiency.

b96bfca88464e51bc479e37196599c90

Choose the Right Frozen Food Packaging Method

Pizza Packaging Solution

Vacuum Packaging

Vacuum packaging creates a compact package by removing air from the bag, securely holding the frozen food in place. This minimizes movement and collisions while saving space, making it ideal for long-distance cold chain transport. However, when using vacuum packaging, it is necessary to assess whether the food has sharp edges or high liquid content, and whether the vacuum bag offers adequate puncture resistance.


Suitable for: Frozen meat cuts, poultry, seafood, prepared ingredients, and products that can withstand vacuum compression.

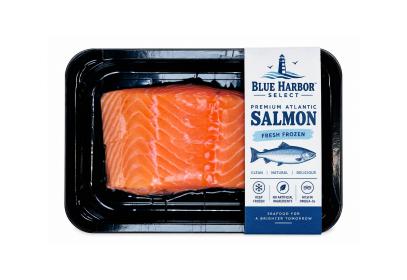

Skin Packaging(1)

Tray packaging

Tray sealing supports various functions, such as vacuum packaging, Modified Atmosphere Packaging (MAP), or skin packaging. Since the freezing environment itself helps extend shelf life, simple top-sealing is sufficient for most frozen food trays. However, some premium frozen foods utilize skin packaging or MAP to ensure optimal product quality.


Suitable for: Frozen ready meals, portioned seafood, premium meat products, and retail tray-packed items.

Thermoforming Packaging(2)

Thermoforming Packaging

Thermoforming packaging involves an integrated, continuous process that combines thermoforming, filling, vacuuming or MAP, sealing, and cutting. This high-speed, all-in-one approach significantly boosts packaging efficiency, making it ideal for high-volume frozen food suppliers.


Suitable for: Portioned frozen meat, seafood, meal components, and products requiring continuous, high-volume packaging.

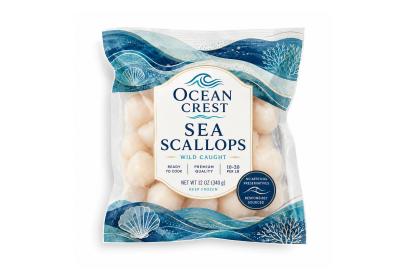

Flow Pack

Flow Wrapper

Flow wrapping (pillow-pack style) offers high packaging speeds and provides excellent retail display appeal for regularly shaped products.


Suitable for: Frozen pizzas, frozen shrimp, frozen meatballs, single-serve packs, and products arranged on trays or in groups.

MAP packaging

Vertical Form-Fill-Seal (VFFS) or Pre-made Bag Packaging

VFFS packaging allows for flexible adjustment of fill weights, offers a retail-friendly appearance, and enables efficient, continuous packaging. Equipment selection requires product testing to evaluate material flow, surface frost levels, drop height, contamination risks at the seal area, and packaging material properties.


Suitable for: IQF (Individually Quick Frozen) fruits and vegetables, French fries, dumplings, meatballs, chicken nuggets, shrimp, and mixed frozen food products.

Hualian Frozen Food Packaging Lines:

From Product Feeding to Case Sealing

Hualian can configure frozen food packaging lines according to product form, primary pack, production capacity and factory layout. The system may include product feeding or weighing, bag or tray handling, vacuum or sealing, coding, inspection, conveying, cartoning, case packing, carton sealing and strapping.

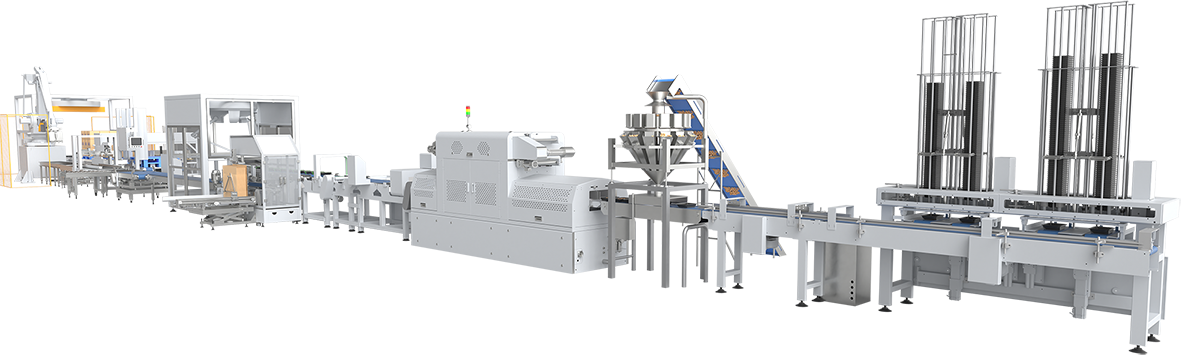

Tray Packaging Line for Frozen Food

a0e72f2ee5b9275a8cfc8b240a759579

Our tray packaging line is designed for frozen food facilities that prioritize high quality and high output. The system operates by filling pre-formed trays with product, transporting them to the sealing station for lidding, and applying vacuum, gas flushing, or skin packaging processes as required. After the film is cut and the finished packages are discharged, the sealed trays are conveyed to the case-packing area for boxing and subsequent palletizing. This tray packaging integrated line is ideally suited for the packaging of premium products such as salmon, beef, seafood, and ready-to-cook meals.

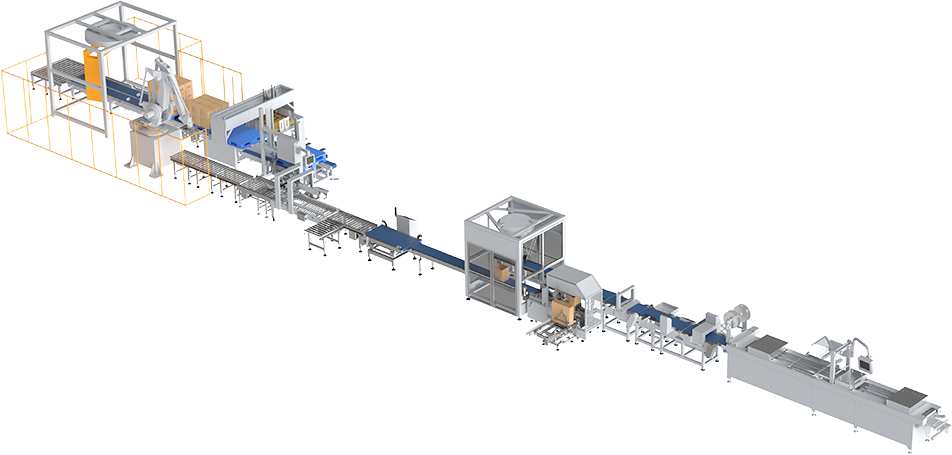

Thermoforming Packaging Line for Frozen Food

0ff6846fc23c13efcdf4ddc99eba9371

Our thermoforming packaging line is designed for frozen food applications. The machine thermoforms a packaging cavity from the bottom film, fills it with the product, and seals it with a top film—incorporating processes such as vacuuming/gas flushing, heat sealing, and cutting—before the finished packages proceed to boxing and palletizing. Capable of high-speed production, the system supports various packaging formats, including Vacuum Skin Packaging (VSP), Modified Atmosphere Packaging (MAP), and rigid tray packaging. It is ideally suited for frozen food facilities that require high output and need to upgrade their production capacity.

Recommended Frozen Food Packaging Machines

HVT-450R-4S-正 800 白底 无logo

Hualian Tray Sealer Machine Series for Frozen Food

Tray packaging machines primarily package products by filling them into trays, offering various methods such as modified atmosphere packaging (MAP) and skin packaging. Hualian offers a wide range of equipment—including tabletop, vertical, linear, and fully automatic models—designed for diverse frozen food packaging scenarios, such as home use, commercial settings, supermarkets, and food processing plants; these machines are frequently used in the premium food sector.

caa74d111a967e165abb999d1e223cab

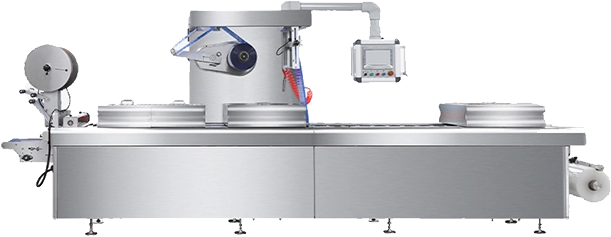

Hualian Thermoforming Packaging Machine Series for Frozen Food

Thermoforming packaging machines primarily support configurations for flexible or rigid films; due to their high-speed operation, they are ideal for frozen food plants with high-volume production requirements. Hualian offers three product series—compact, mid-range, and high-speed models—to meet varying production volume and speed needs. A single thermoforming machine can execute multiple packaging methods, such as VSP (Vacuum Skin Packaging), MAP (Modified Atmosphere Packaging), and vacuum packaging, making it widely applicable for high-volume products requiring diverse packaging formats, including cheese, sausages, dates, and meat.

fdf48cd49d72860ea6906d3a1a085355

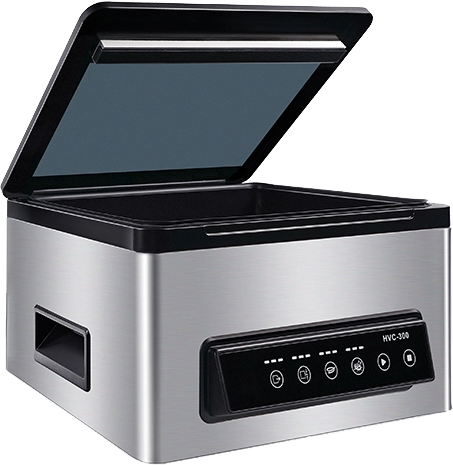

Hualian Vacuum Packaging Machine Series for Frozen Food

Vacuum packaging machines operate by extracting air from the bag and then heat-sealing it. Hualian offers a wide range of models—including tabletop, single-chamber, double-chamber, and continuous vacuum machines—to meet varying packaging volume requirements for frozen foods. Thanks to their convenient packaging method, these machines are suitable for diverse frozen food applications and are frequently used for firmer frozen products, facilitating long-distance cold chain transport.

770ad2829e04fe3486c6be0fe4d350d5

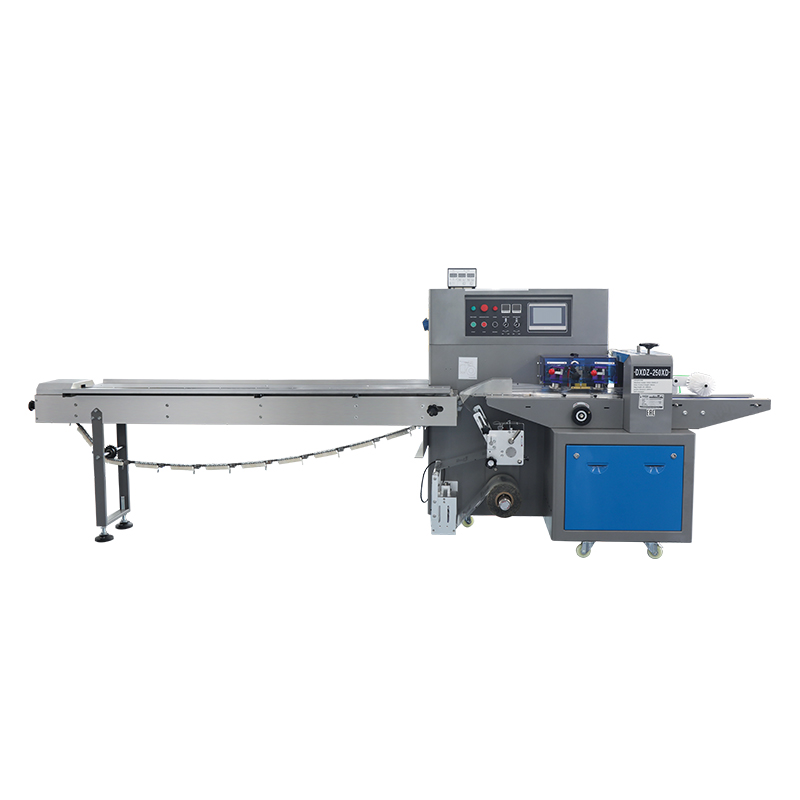

Hualian Horizontal Flow Wrapper for Frozen Food

Suitable for regular-shaped products or products first arranged in a tray or group. For frozen pizza, bakery items or individual frozen portions, final suitability should be confirmed through product, film and low-temperature testing.


12b38b7541b45eb1c09b7802e82a8e3c

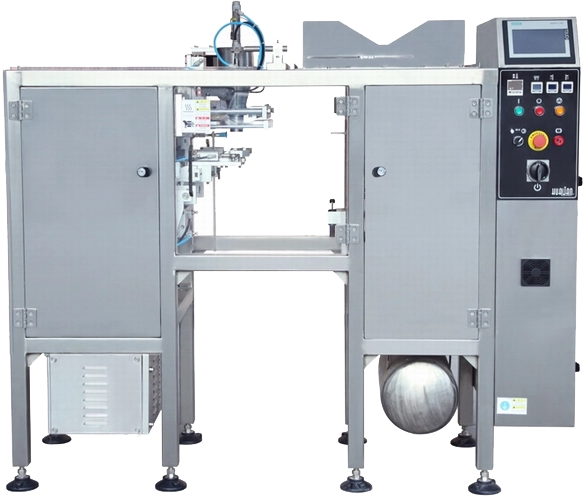

Hualian Premade Pouch Packaging Machine for Frozen Food

Suitable for compatible premade pouches used for frozen foods and other free-flowing products. The official product page lists 6-15 bags/min depending on pouch configuration. It supports different premade pouch formats and can be configured with a vacuum function.


Frozen Food Packaging Applications

Hualian frozen food packaging equipment can be evaluated for a wide range of products:

vegetable packaging solution(1)
IQF vegetable
Peas, corn, carrots, broccoli, cauliflower, mixed vegetables and edamame
fruit ready meal
Frozen fruit
berries, mango pieces, pineapple, cherries and mixed fruit
thermoforming packaging machine for ready meal
Potato products
French fries, wedges, hash browns and potato portions
pasta packaging solution(1)
Frozen dumplings and pasta
dumplings, wontons, buns, ravioli and
noodles
Pizza Packaging Solution
Breaded and formed foods
chicken nuggets, meatballs, croquettes, fish fingers and breaded portions
Frozen Meat Packaging Solution(1)

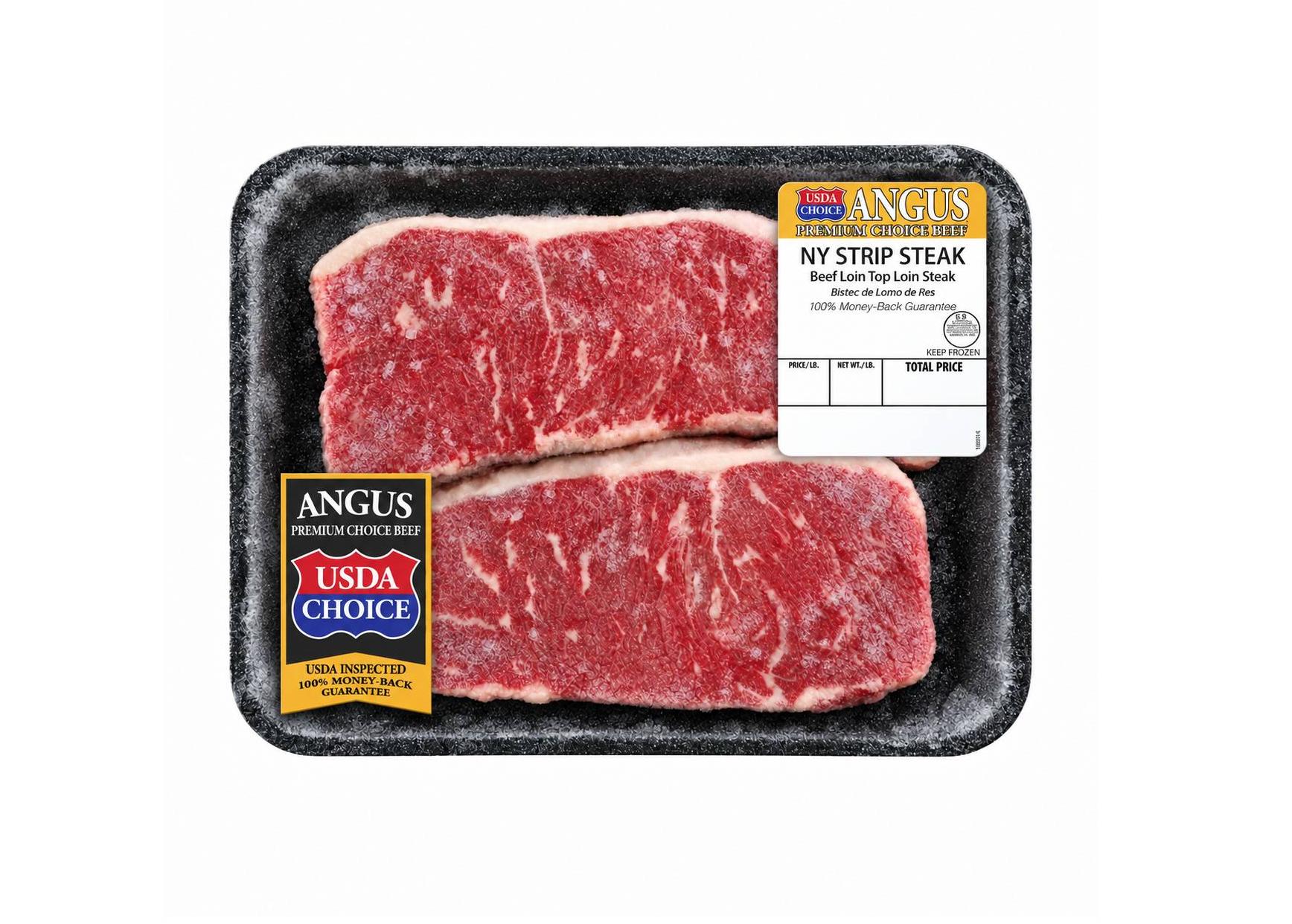

Frozen meat and poultry
steaks, sliced meat, chicken portions, patties and prepared protein
frozen prawn packaging solution(1)
Frozen fish and seafood
shrimp, fish portions, shellfish and mixed
seafood
Pizza Packaging Solution
Frozen pizza and bakery
pizza, pastries, waffles, pancakes, bread and dough products
ready meal
Frozen ready meals
rice meals, pasta dishes, stir-fry mixes, meal trays and prepared dishes
001

Customize Your Frozen Food Packaging Solution

The same frozen product may require a different machine when portion weight, film, pack style or output changes.

Send the following information so our team can evaluate a suitable configuration:

Low-Temperature Adaption

Our packaging equipment is designed to perform reliably in the low-temperature environments required for frozen food packaging.

Production Capacity

Hualian operates fully equipped assembly-line workshops, enabling significant improvements in production efficiency and capacity.

Hygienic & Easy To Clean

The equipment is constructed from food-grade S304 stainless steel, ensuring hygiene and ease of cleaning.

Tray & Film Compatibility

We offer equipment for tray packaging, film packaging, and hybrid systems capable of handling both trays and film.

Packaging Method Customization

A variety of packaging formats are available, including Vacuum, MAP, and VSP.

Complete Line Integration

Our standalone units integrate seamlessly into production lines, greatly enhancing operational convenience and throughput.

1586

Why Choose Hualian for Frozen Food Packaging

 Low-Temperature Adaptability

Constructed from stainless steel and featuring moisture-resistant electrical components, our packaging equipment is well-suited for low-temperature environments.

Versatile Packaging Methods

A single unit supports multiple packaging modes—such as vacuum, modified atmosphere (MAP), and vacuum skin packaging (VSP)—ensuring adaptability across various scenarios.

Reliable Sealing

Utilizing specialized sealing technology, the equipment ensures a secure seal, effectively extending the shelf life of food products.

Hygiene and Cleanliness

Built with food-grade SUS304 stainless steel and featuring a design that allows for easy disassembly and cleaning, the equipment meets high standards of hygiene and sanitation.

Automation and Line Integration

Our frozen food packaging equipment offers seamless integration into complete production lines, enabling high levels of automation.

After-Sales and Delivery

We provide professional global service and remote after-sales support, backed by a one-year warranty. With a massive 100,000 m², we ensure rapid delivery.

Frozen Food Packaging Machine Videos and Case Studies

See how Hualian packaging equipment handles pouch packaging, vacuum sealing, tray sealing, thermoforming and end-of-line automation for food products.
Use real videos to show product feeding, package forming, sealing quality, finished packs, cleaning access and line connection.

Thermoforming Packaging for Frozen Lamb Rolls

Client Situation: The client previously used a traditional sealing machine, resulting in slow processing speeds and poor product freshness.

Hualian Solution: Based on the client's requirements regarding speed, output, and packaging style, we recommended our thermoforming packaging machine.

Results: Production output increased fivefold, and the product's shelf life was extended by 3 to 5 times, leading to a significant increase in market share.

Tray Packaging Line for Frozen Meat

Client Situation: Due to increased market demand and production capacity, the client needed to upgrade their production line, which currently produces only 500 units per day.

Hualian Solution: Based on the client's budget, capacity requirements, and site conditions, we designed a comprehensive in-plant production line solution covering the entire process from filling and sealing to boxing and palletizing.

Results: Meat packaging production capacity was significantly enhanced, increasing by more than fivefold, thereby boosting market share.

FAQ About Frozen Food Packaging Machines

Q1. What is the best packaging machine for frozen food?

The best machine depends on product form and package format. Free-flowing IQF vegetables, fries and dumplings often use weighing with vertical bagging or premade pouches. Frozen meat and seafood may use vacuum or thermoforming equipment, while frozen ready meals may use tray sealing or thermoforming.

Q2. Can Hualian machines package IQF vegetables and fruit?

Hualian can evaluate premade pouch, vertical bagging and thermoforming directions for IQF products. The final setup should be confirmed using product flowability, surface frost, target weight, film and output requirements.

Q3. Can frozen dumplings be packaged automatically?

Yes. Frozen dumplings can be weighed and bagged or packed into compatible premade pouches, followed by coding, inspection, conveying and carton packaging. Product drop height and breakage risk should be tested before final machine selection.

Q4. How can packaging help reduce freezer burn?

A suitable barrier film and a reliable airtight seal help limit moisture loss and air exchange. Vacuum packaging can also remove package air for products that tolerate compression. Packaging alone cannot correct an unstable freezing or cold-chain process.

Q5. What should be checked when ice or frost enters the seal area?

The packaging test should evaluate sealing temperature, dwell time, jaw design, film structure, product settling and the amount of frost or product trapped in the seal. The correct solution depends on the actual product and film.

Q6. Can frozen meat and seafood be vacuum packaged?

Yes. Chamber vacuum and thermoforming vacuum machines can be considered for compatible frozen meat and seafood. Sharp bones, shell edges, film puncture resistance and product height must be checked.

Q7. Can a tray sealer package frozen ready meals?

Yes. A tray sealer can top-seal compatible frozen meal trays. Depending on the machine configuration and product, vacuum, MAP or skin packaging may also be evaluated. Tray material, sealing film and heating requirements must be confirmed.

Q8. When should I choose a thermoforming packaging machine?

Choose thermoforming when continuous production, repeatable pack dimensions, lower manual handling and integration with loading, coding, inspection or secondary packaging are important. Hualian offers compact, medium and higher-output HVR configurations.

Q9. Can Hualian provide a complete frozen food packaging line?

Hualian can configure a line with primary packaging and compatible modules such as conveying, coding, inspection, carton handling, case sealing and strapping. The final scope depends on the factory layout and upstream/downstream equipment.

Q10. What information is needed for a quotation?

Provide the frozen product, product temperature, piece size, target weight, package format, film or tray size, required output, available space, packaging function and any inspection or end-of-line requirements. Product samples and current package photos are highly useful.
