HVC-610S/2B
Hualian
Bags
Description

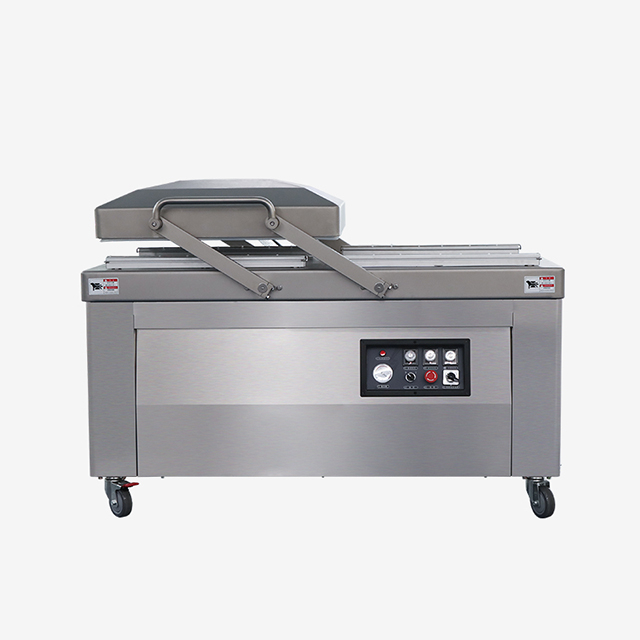

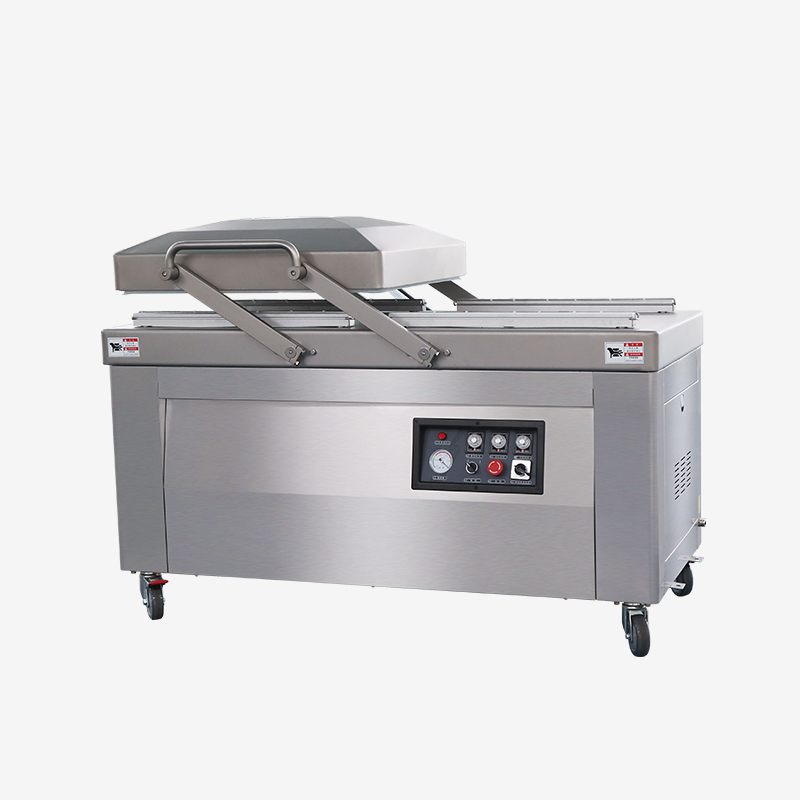

This double chamber vacuum sealer machine can vacuum pack several products at the same time, which is efficient in continuous production in middle or small scale.
High Quality: Features an integrated, arched vacuum lid constructed from 3mm-thick S304 stainless steel. Additionally, components such as the short shaft and connecting rods are made entirely of stainless steel, ensuring both superior quality and exceptional durability.
Safety Features: The machine casing features rounded corners on all sides, minimizing the risk of accidental bumps or injuries and enhancing overall safety.
Multifunctional Configuration: Can be equipped with a gas flushing function; the vacuum chamber is designed for direct rinsing, facilitating rapid packaging operations.
Control Panel: The control panel housing is precision-molded; users may choose between a traditional relay-based control system or an advanced computer board control system.
Customizable:
1) Depth of vacuum chamber
2) Material of the machine hull and the vacuum pump
3) Equipped with dust filter for the products similar to powder.
4) Optional PCB control or relay control
The vacuum chamber could be added with PP insert plate for products with different heights to improve the vacuum efficiency.
The vacuum chamber is designed to be flat without blind angle, which is convenient to wash and clean.
Parameters
Model | HVC-610S/2B |
Voltage (V/Hz) | AC 380/50 220/50 |
Motor power (W) | 1500 |
Sealing Power (W) | 1000 |
Ultimate Vacuum Pressure (Kpa) | 1 |
Sealing Width (mm) | 10 or 2×3 or 3+ cut-off |
Chamber Dimension (L×W×H) (mm) | 720×550×150 |
Vacuum Pump capacity (m3/h) | 2×20 |
Material for Vacuum Chamber | SUS304 |
External Dimensions (L×W×H) (mm) | 1485×735×930 |
Net Weight (Kg) | Approx.255 |
