EV-272
Hualian
Trays
Seal
Product Detail
Parameters
Model | EV271 | EV272 | EV273 |
Voltage（V/HZ) | 220V/50Hz 110V/60Hz | ||
Sealing Power（KW） | 1.2 | ||
Max Film Width(mm) | 270 | ||
Max Roll Diameter（mm) | 220 | ||
Pump Capacity(m³/h) | -- | 20 | |
Packaging Mode | GAs flush | MAP | MAP/Vacuum Skin |
Flush Gas | N2 or N2+CO2 | ||
Packging Speed(cycles/min) | 5-6 | 2-3 | |
Total Power(Kw) | 1.5Kw | 2.2 | |
Dimensions(L*W*H)(mm) | 830x550x770 | 1000x620x940 | |
New Weight(KG) | ≈80 | ≈160 | |
Description

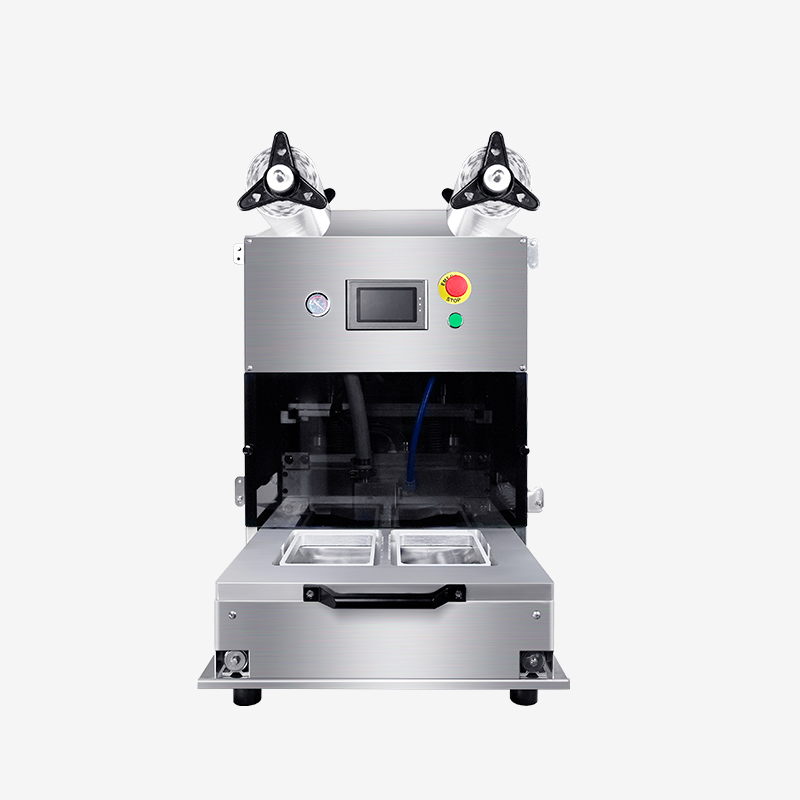

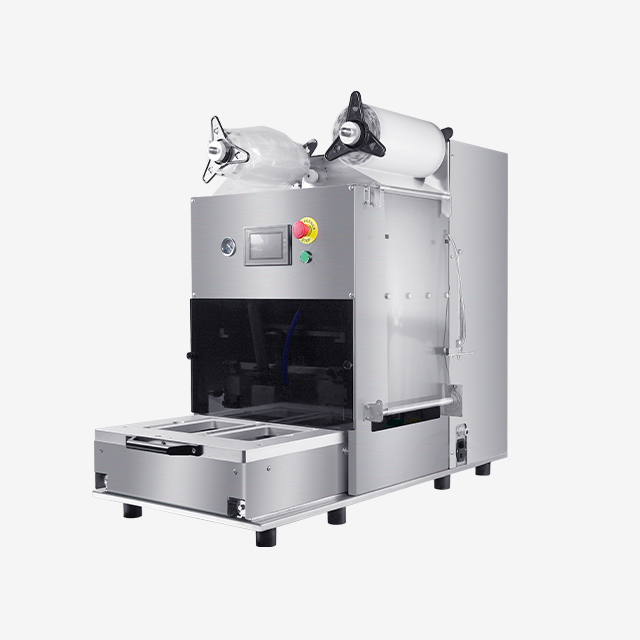

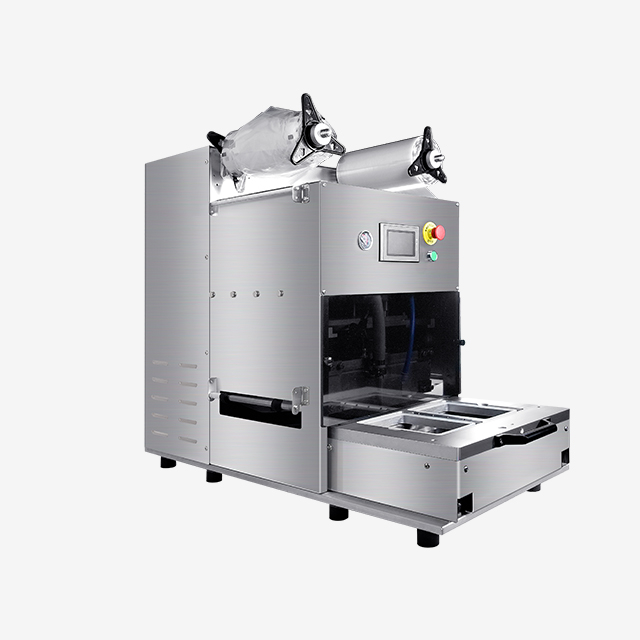

Compact Footprint: Our tabletop tray sealer features a compact design and flexible layout, making it suitable for various settings.
Versatile Application: One machine accommodates multiple mold types, with rapid mold changes in just 5–10 minutes.
User-Friendly Operation: Controlled via a PLC touchscreen, the system is easy to operate and master; it features a streamlined button layout, a clean interface, and real-time operational status display.
Film Feeding: Supports two film feeding methods to accommodate various film materials.
Two Easy-Peel Options: Offers wavy sealing and easy-peel designs to meet diverse packaging requirements.
