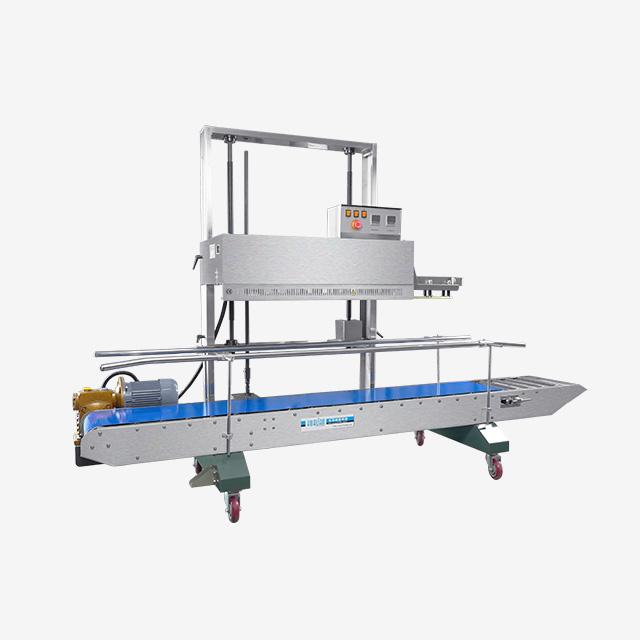

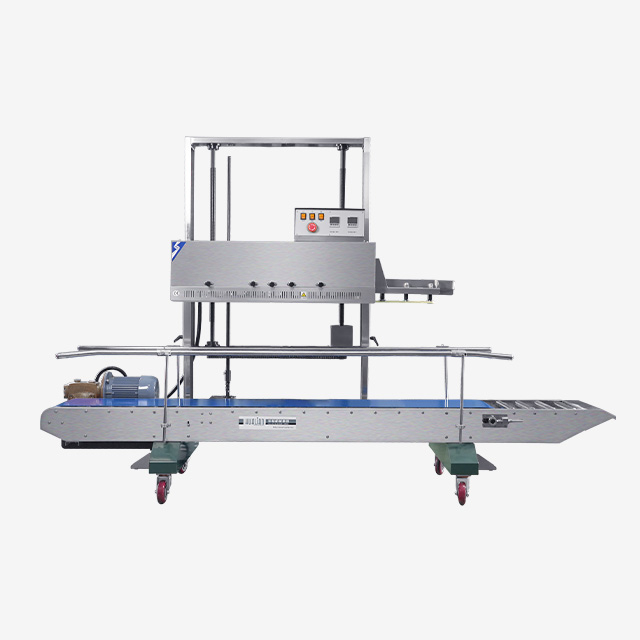

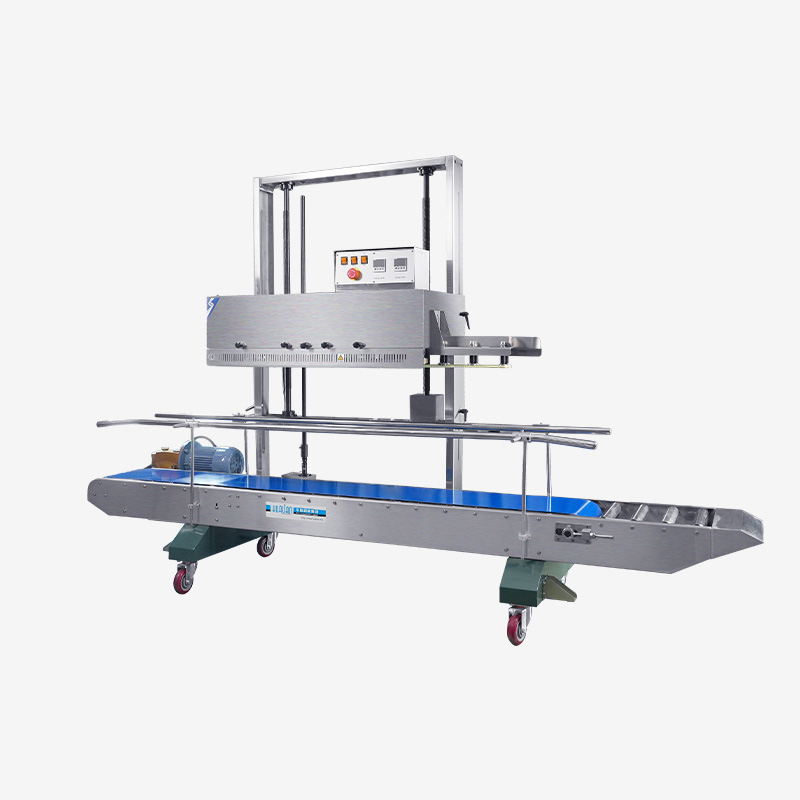

Plastic Bag Continuous Heat Band Sealer FR-1370AL/L

Availability:
Quantity:

Description


  • The machines of FR-1370 series are two sets of heating blocks for heat-sealing of thick film packing, used to seal the package weighing under 5kgs, 10kgs and 20kgs respectively.


Parameters


MODEL

FR-1370AL/L

Voltage (V/Hz)

AC 220/50 110/60

Motor Power (W)

550(750)

Sealing Power (W)

300×4

Speed(m/min) (m/min)

8

Seal Width (mm)

 10

Temperature Range (℃)

0-300

Distance from Sealing Center to Conveyor (mm)

300-900

Distance from Sealing Center to Conveyor (mm)

1300

Conveyor Size (L×W )(mm)

2400×350

Max. Conveyor Load for Single Bag (kg)

≤20

Overall Conveyor Load (kg)

≤60

External Dimensions (L×W×H) (mm)

2565×720×1450

Net Weight (kg)

250


Dimension

4FR-1370AL-L尺寸图

Product Detail


6 FR-1370AL∕L局部7 封口机样品图9 产品包装

Video
