| Quantity: | |
|---|---|
FBHS-24
Bags
Product Description

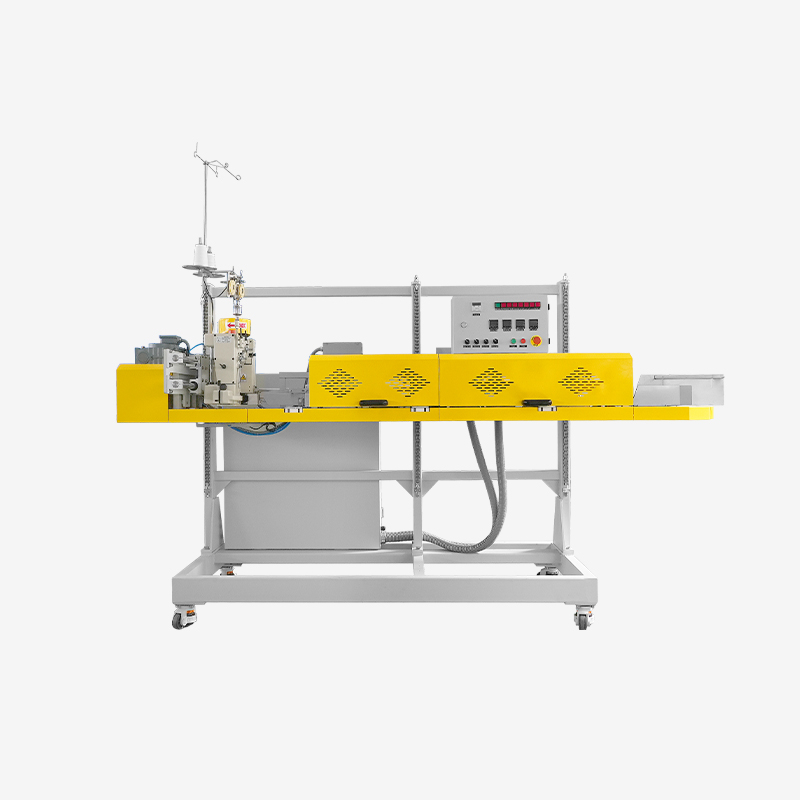

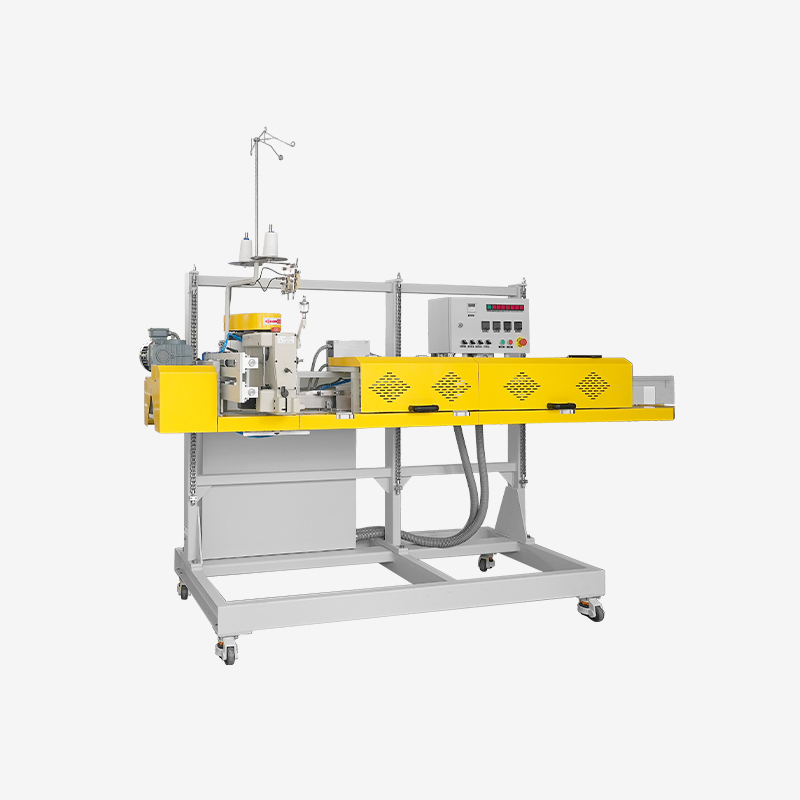

Our heavy-duty bagging sealing machine integrates sealing, folding, and sewing into a single unit.
This heavy-duty bagging sealing machine is frequently used for sealing plastic woven bags.

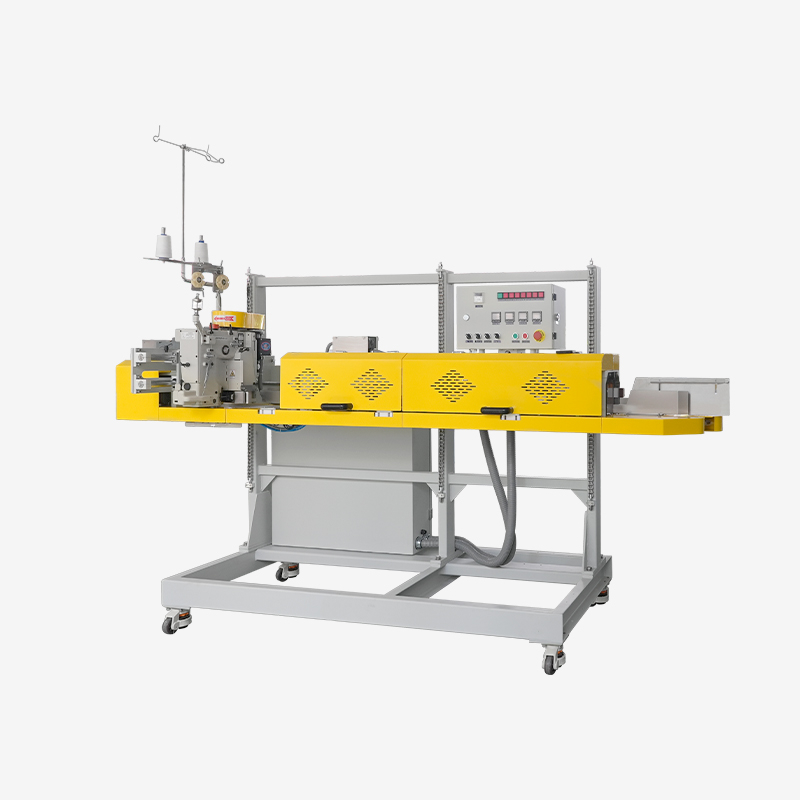

This model is well-suited for packaging granular materials, such as plastic pellets and pet food.
Slid-out sewing module No disassembly required; Effortless threading,trouble shooting and maintenance
Parameters
Model | FBHS-24 |
Voltage (V/Hz) | AC 380/50 3PH |
Drive Power (KW) | 0.75 |
Heating Power (KW) | 0.5X8 |
Sealing Speed (m/min) | 8.5 |
Total Power (KW) | 5.2 |
Sewing Head Drive Power (KW) | 0.37 |
Temperature Range (℃) | 0-300 |
Max Bag-top Folding Width (mm) | 60 |
Height From Sealing Center To The Ground (mm) | 800-1400 |
Min Height From Material to Bag Mouth (mm) | 270 |
External Dimensions (LXWXH) (mm) | 3120X950X1800 |
Net Weight (Kg) | 600 |
Product Detail
