Home / Products / Carton Sealer / Semi automatic Carton Sealer / Hualian Automatic Eco-Friendly Flap-folding Water-actived Gummed Tape Carton Sealer Sealing Machine HCS-655FW

Product Description

Benefit of Hualian Water-actived Carton Sealer HCS-655FW

High efficiency: speeds up to 18 m/min; reduces manual intervention and increases production capacity.
Adapts to various carton sizes: No need for frequent machine adjustments,handle both small and large cartons with the touch of a button.
Flexible switching: Supports independent top and bottom sealing modes, with the option to enable or disable the top and bottom sealing functions.
Intelligent control system: simple interaction logic and a well-organized interface layout.
Precise paper feed length: Uses a stepper motor for paper feeding, ensuring accurate output length with a margin of error of ±5mm.
Safety Features: Includes automatic fault detection and alarms, low air pressure alarms, and alerts for jammed or dropped cassettes.

Product Detail

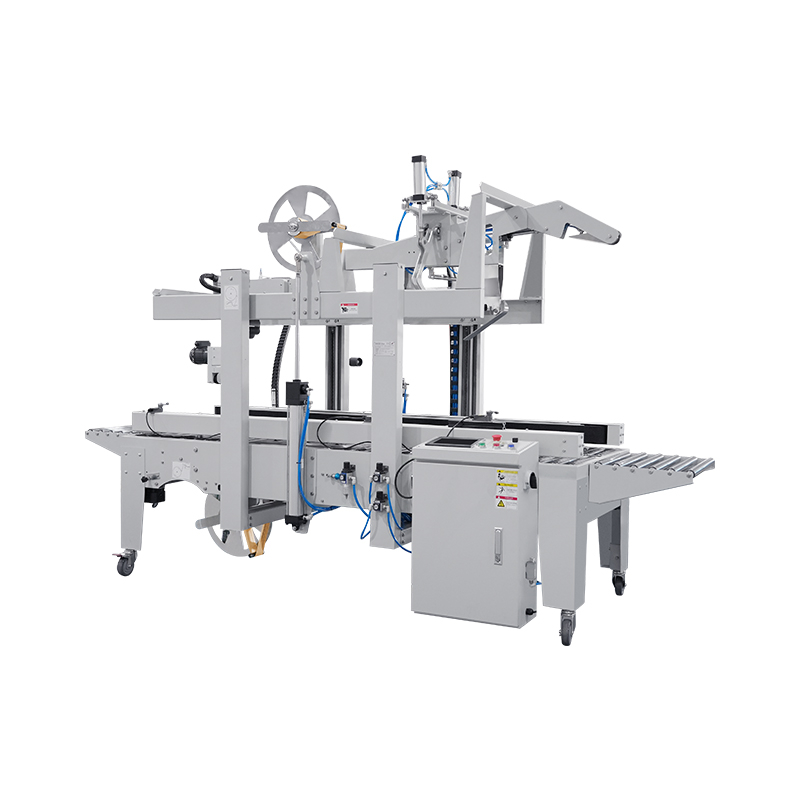

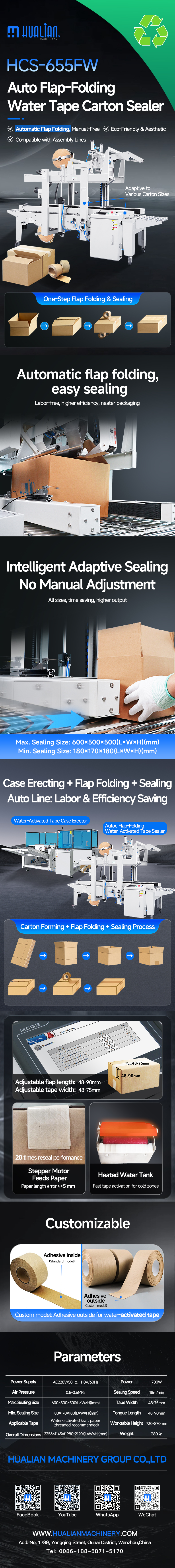

HCS-655FW auto flap-folding water tape carton sealer

Parameters

MODLE	HCS-655FW
Power Supply(V/Hz)	AC 220/50 110/60
Power（W）	700
Air Pressure(Mpa)	0.5-0.6
Sealing Speed (M/MIN)	18
Max.Sealing Size(L×W×H)(mm)	600×500×500
Min.Sealing Size(L×W×H)(mm)	180×170×180
Tape Width(mm)	48~75
Tongue Length(mm)	48~90
Applicable Tape	Water-activated kraft Paper (threaded recommended)
Worktable Height(mm)	730~870
External Dimension(L×W× H)(mm)	2356×1145×(1980-2120)
Net Weight (kg)	380
