Home / Products / Sealer / Band Sealer / Hualian UV Laser Marking Continuous Band Sealer Sealing Machine FRJ-1120W

Model:
FRJ-1120W
Brand:
Hualian
Type:
Bags

Product Advantage

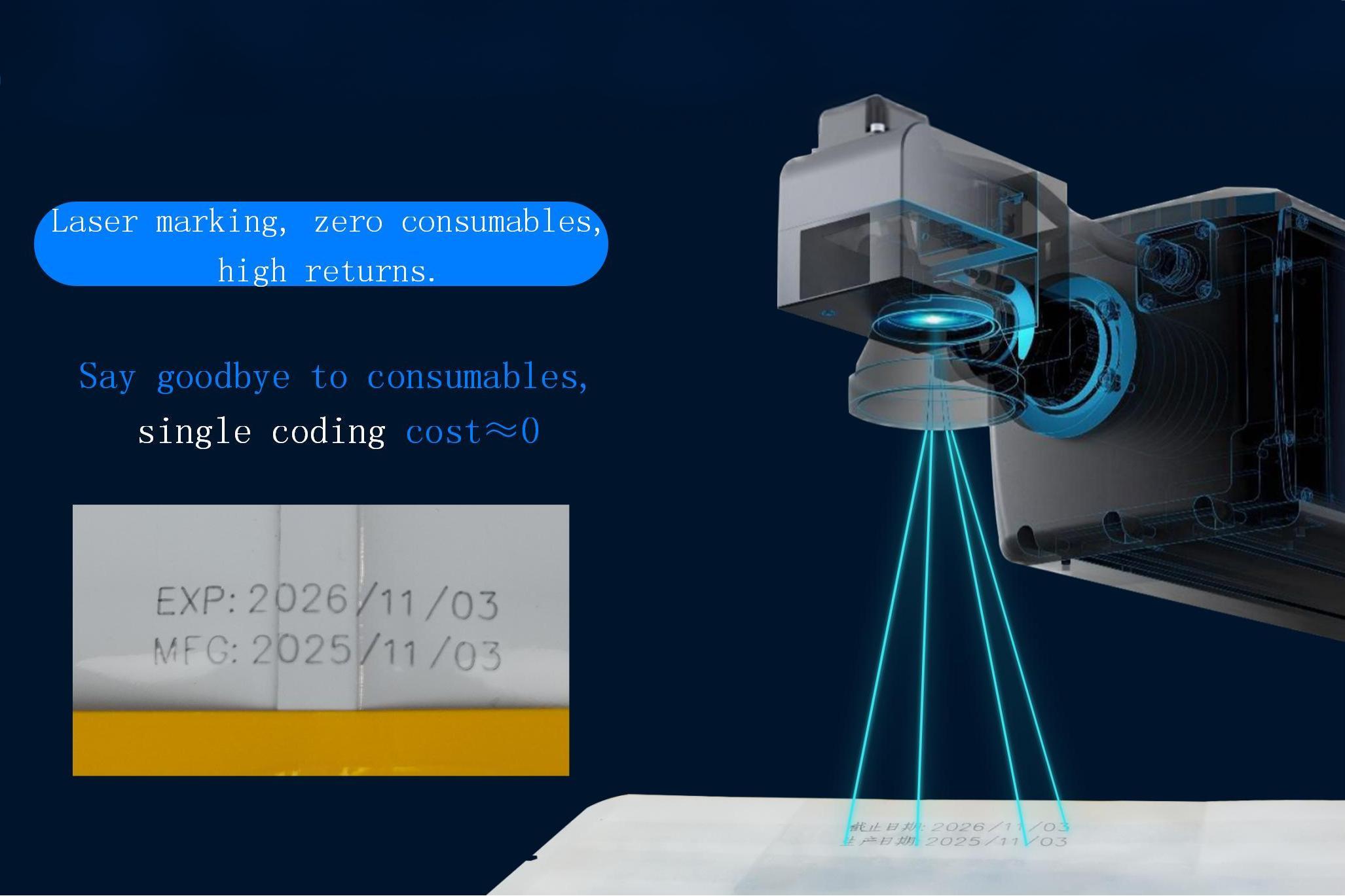

Laser Marking | Zero Consumables

Laser marking, zero consumables, high returns.
Say goodbye to consumables, single coding cost≈0

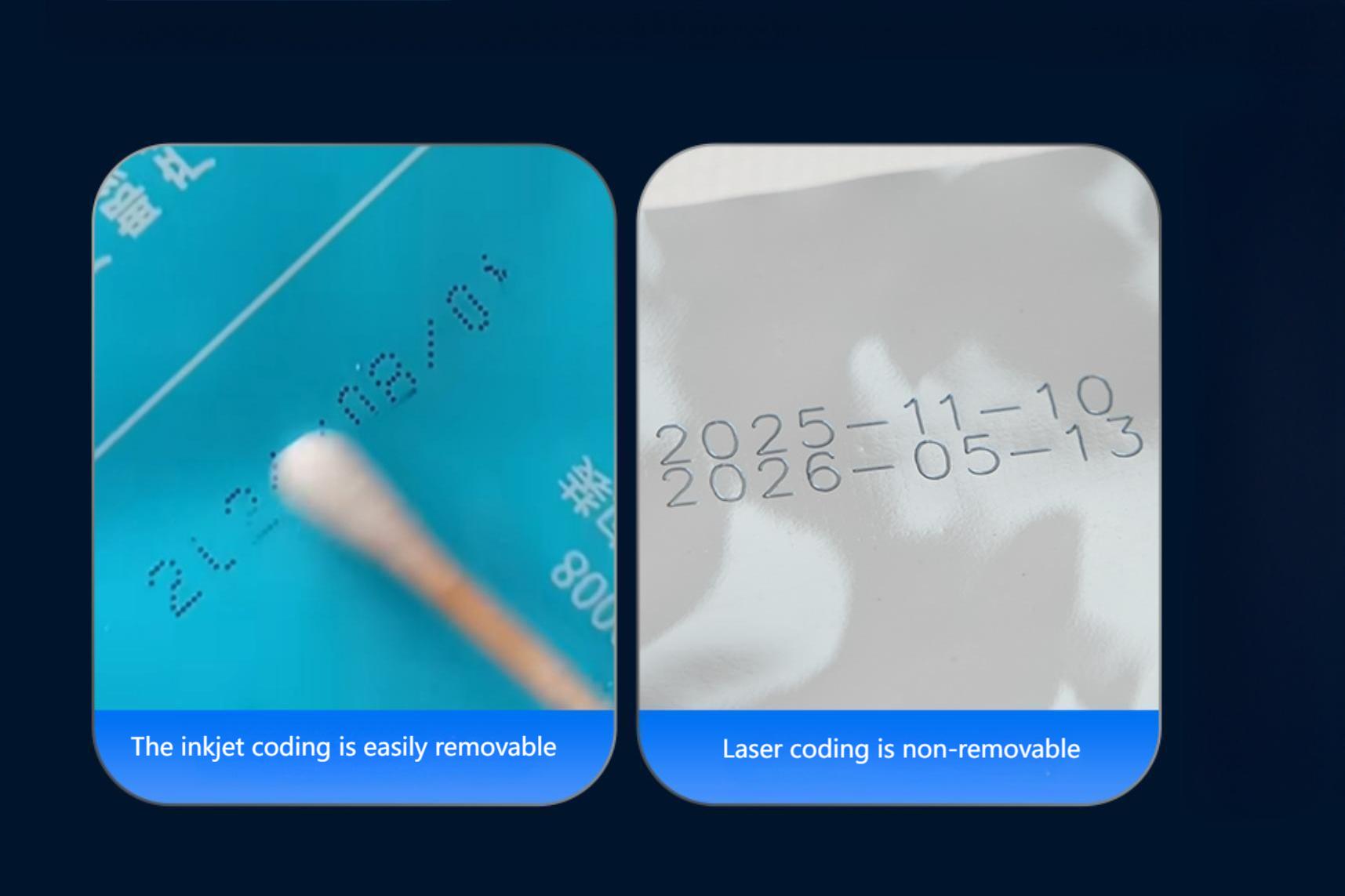

Permanent Marking

Traditional ink-based codes are susceptible to damage from refrigeration, freezing, humidity, and corrosion, and are prone to peeling and deterioration. Laser direct marking, on the other hand, offers triple protection against friction, temperature changes, and corrosion. Suitable for harsh environments such as those used in food, chemical, and medical device industries, the markings are clearly legible throughout the entire process, ensuring product traceability and compliance.

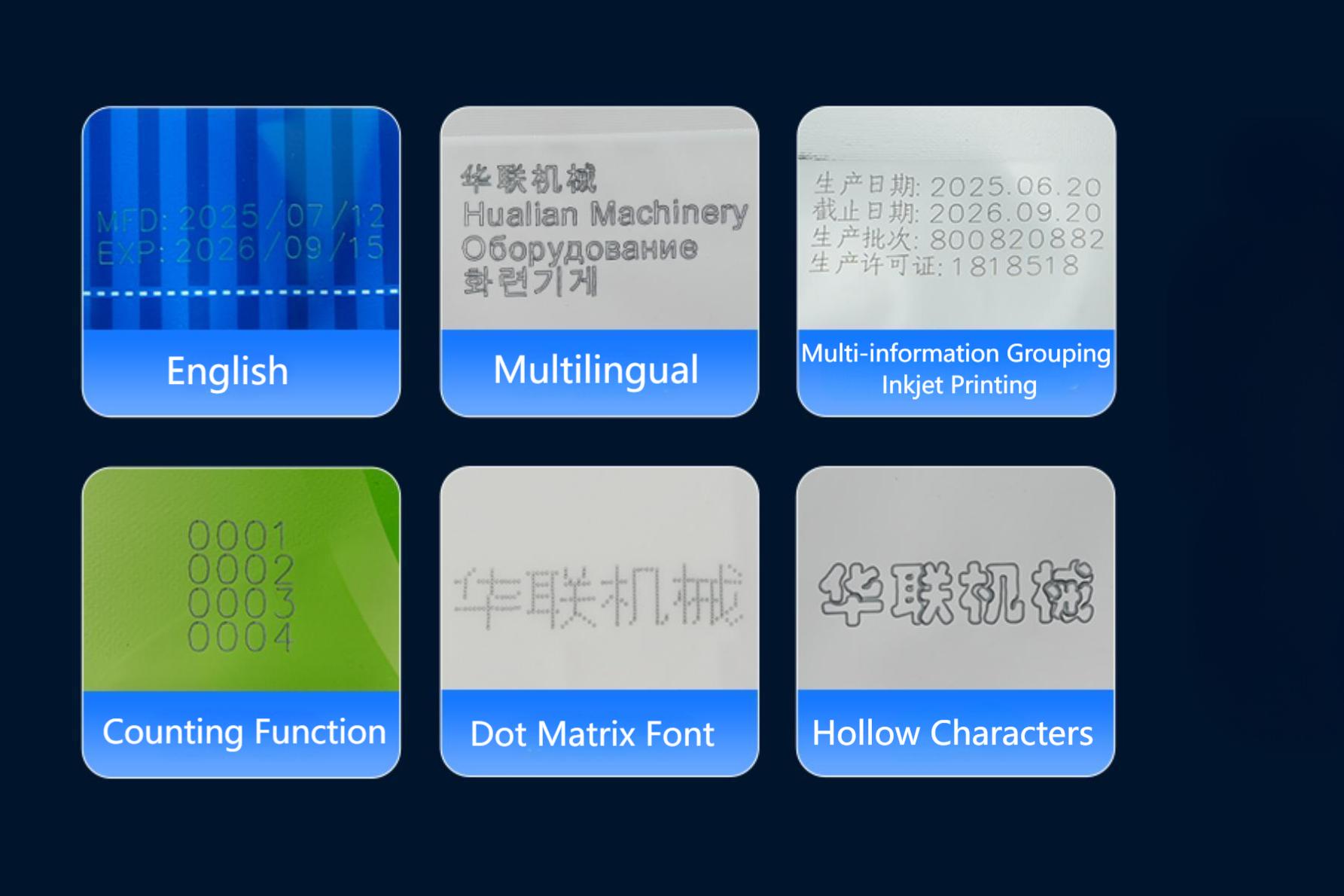

Diverse Coding Options.

This band sealer can print text, dates, symbols, multiple languages, counts, and other content. The coding precision is extremely high, enabling ultra-fine text/image printing.

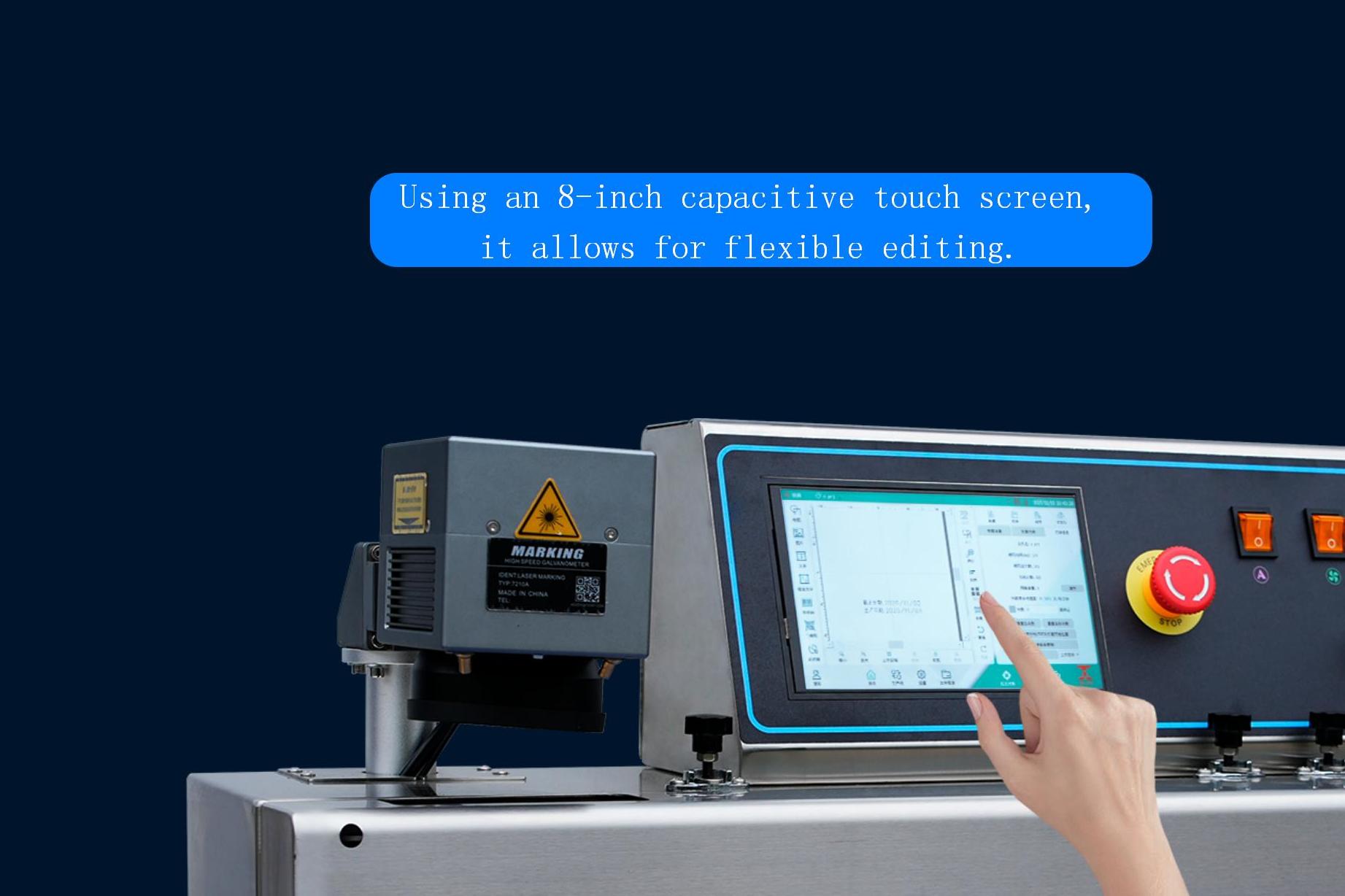

8-inch Touch Screen

Using an 8-inch capacitive touch screen, it allows for flexible editing.

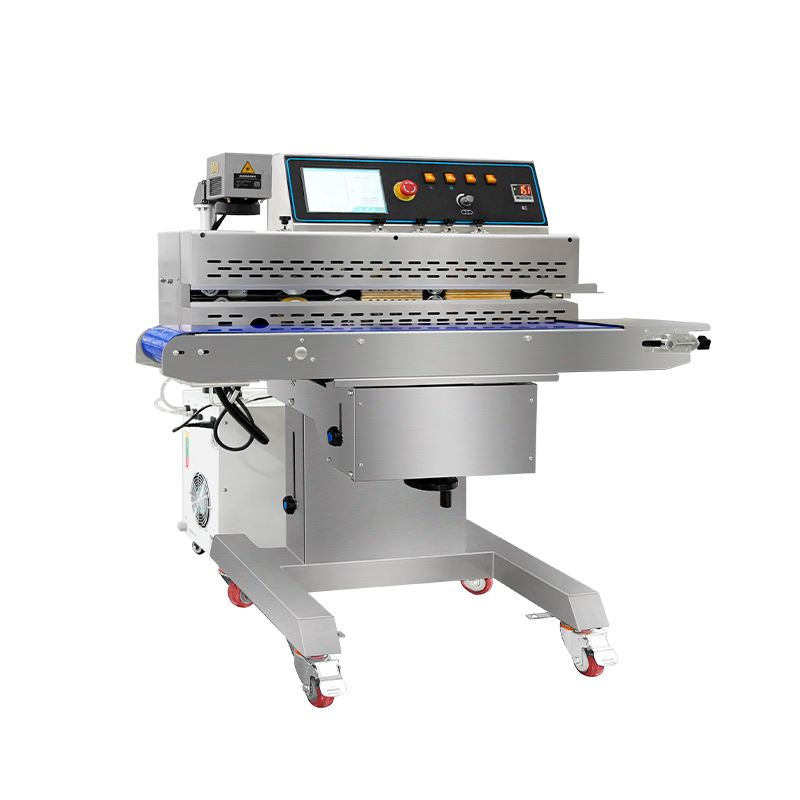

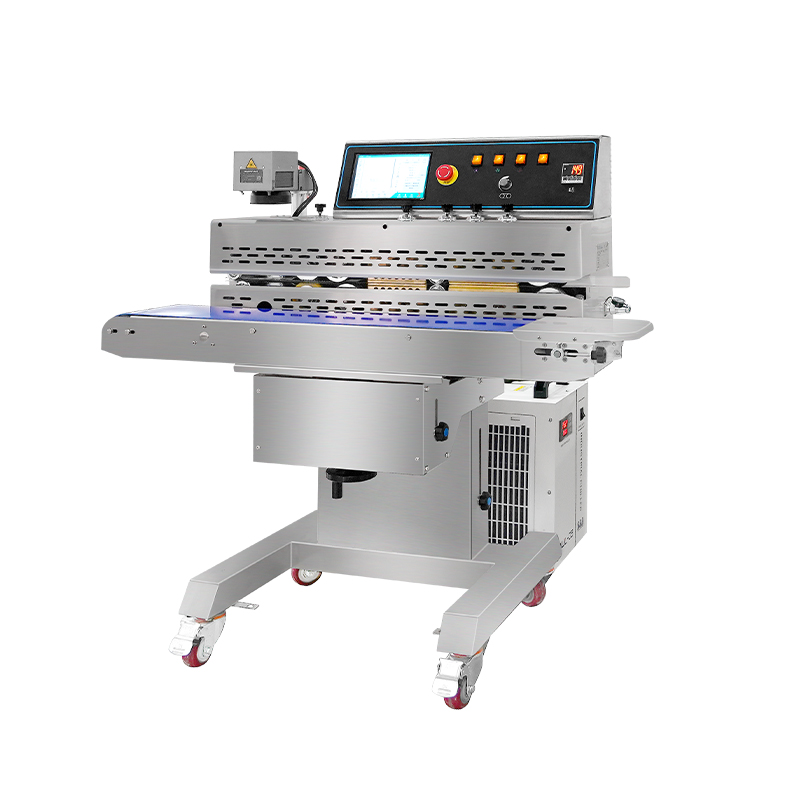

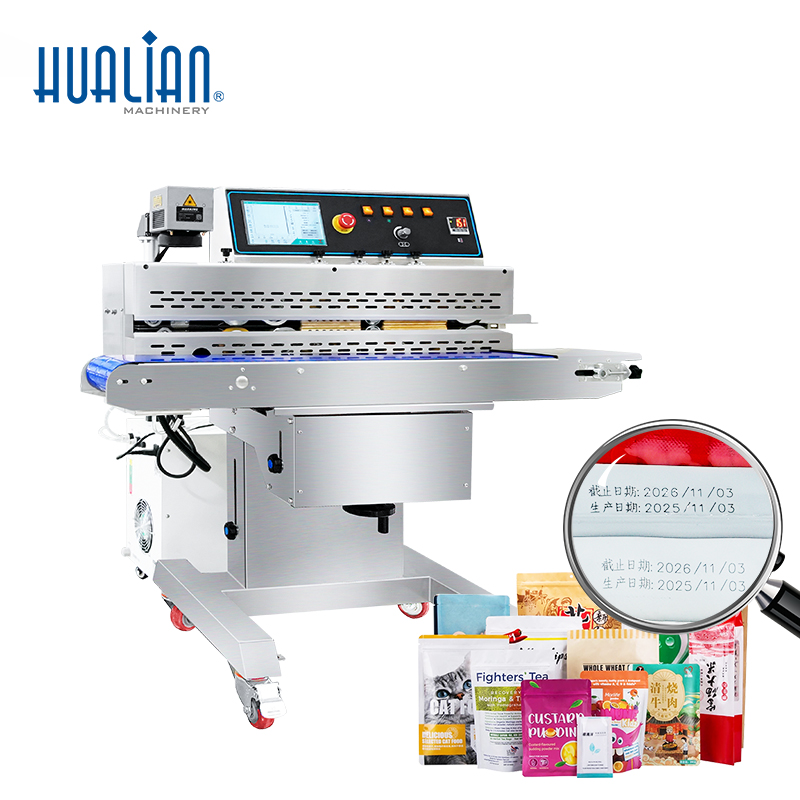

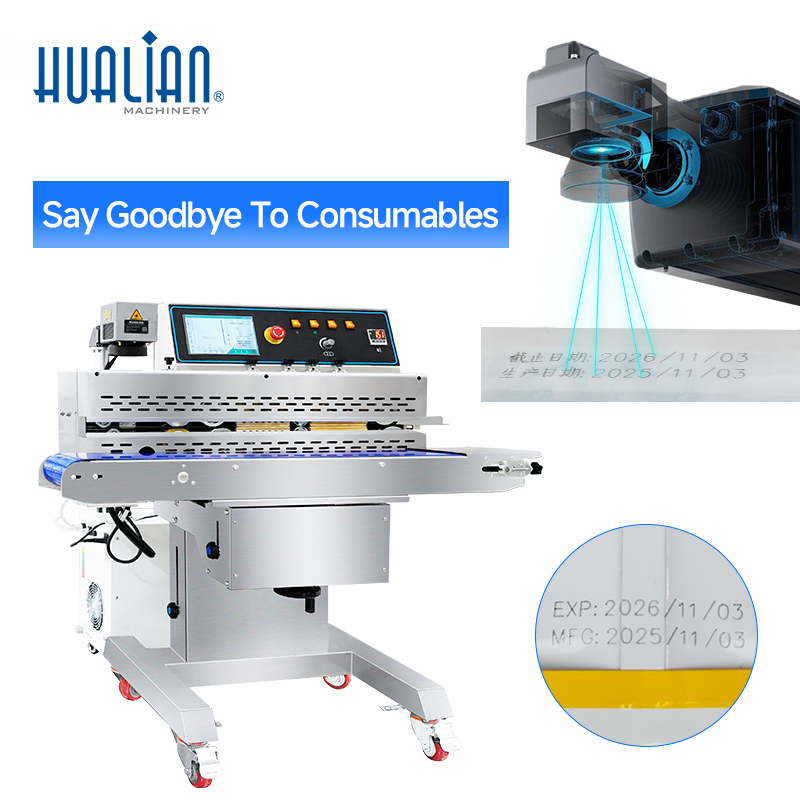

Hualian UV Laser Coding Continuous Band Sealer Machine

This multi-functional sealing machine integrates laser printing, sealing, and counting. It features various laser printing styles, capable of printing text, dates, symbols, multiple languages, and counts, offering versatility and easy operation. Compared to traditional inkjet sealing machines, this laser sealing requires no consumables, reducing costs. It boasts extremely high inkjet printing accuracy, capable of printing ultra-fine text/patterns. It offers fast, continuous sealing. An 8-inch capacitive touchscreen allows for flexible editing.

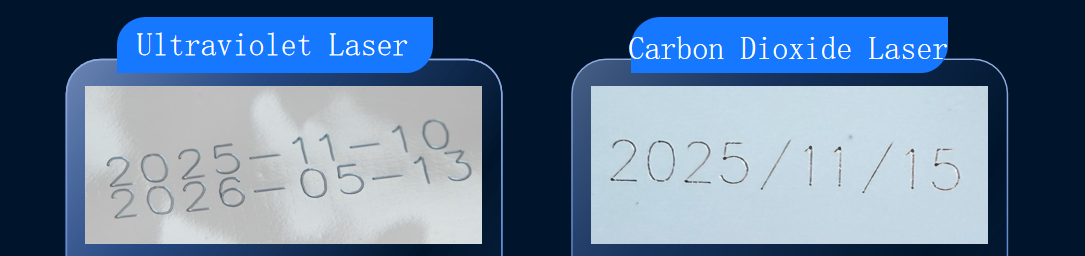

003

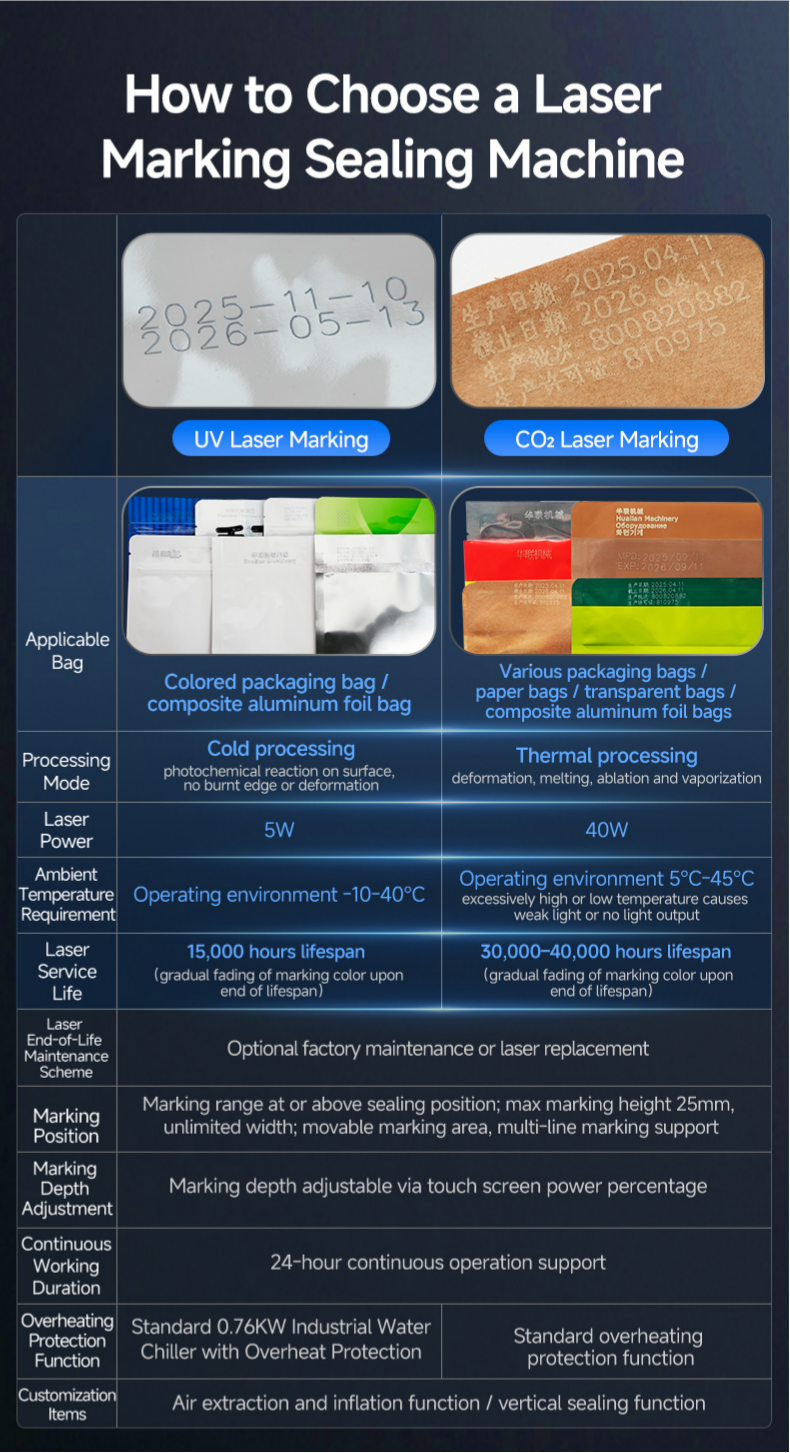

Type

Ultraviolet Laser

Carbon Dioxide Laser

Advantages

1. Cold processing mode, does not damage the surface of plastic bags, no scorching edges or deformation.

2. Extremely high coding accuracy, capable of achieving ultra-fine text/patterns.

3. Zero consumables, low operating costs, no smoke.

1. Affordable equipment price, low initial investment cost

2. Can print on transparent bags

3. Provides clearer contrast for coding on dark-colored, high-density plastic bags

Disadvantages

1. Initial purchase cost of the equipment is higher than that of CO2 machines.

2. Cannot code transparent bags; must have color blocks or the bag must be colored; cannot code pure aluminum foil bags.

1. Thermal processing mode, high energy, prone to causing slight scorching or shrinkage of plastic bags in certain areas

2. Lower precision than UV printers, resulting in poor reproduction of fine patterns

3. Produces smoke and odor; requires a smoke purifier for processing in enclosed spaces.

Parameters

Model	FRJ-1120W
Voltage(V/Hz)	AC 220/50 110/60
Motor Power (W)	100
Sealing Power (W)	400×2
Overall Conveyor Load(KG)	10
Conveyor Size(L×W)(mm)	1111×205
Speed(m/min)	0-16
Printing Type	UV Laser Marking
Distance From Sealing Center to the Conveyor(mm)	20-70
Seal Width(mm)	10
Temperature Range(℃)	0-300
Max.distance from sealing center to bag opening(mm)	37

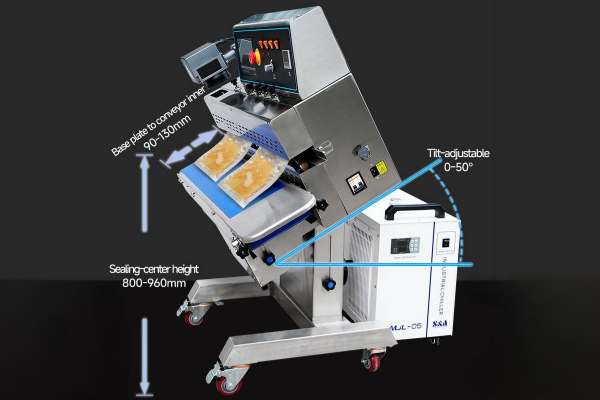

Distance from base plate to interior conveyor(mm)	90-130
External Dimension(L×W×H)(mm)	1111×570×1104
Net Weight (kg)	92
