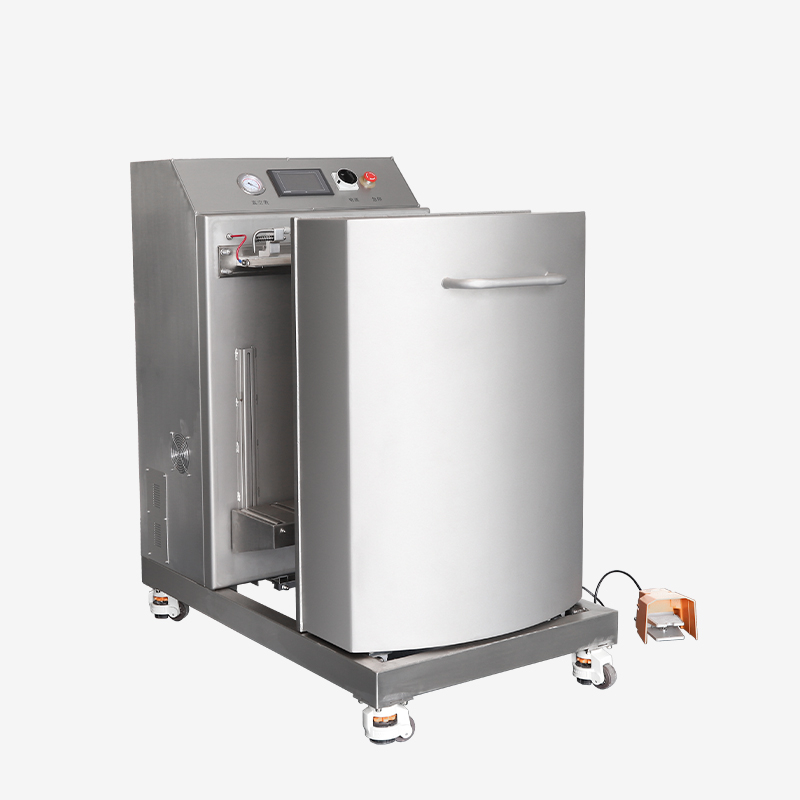

Hualian Vertical Single Chamber Vacuum Packaging Machine for Grain Cereals Packaging for HVV-610F/1B

Availability:
Quantity:
  • HVV-610F/1B

  • Hualian

  • Bags

Description

HVV Vertical Vacuum Packaging Machine possesses the advantages of superior function,  simple maintenance, easy operation, wide application etc. It applies to the flexible packing  materials such as compound film, aluminium-plastic compound film and so on.


It is especially suitable for materials that require vertical vacuum (inflatable) packaging or  square packaging, such as packaging rice, peanuts, flour, coffee beans, seeds, etc. The  packaged product can prevent oxidation, mildew, moth-eaten, corruption, dampness, can  maintain the quality and keep fresh to extend the product storage period, and is  convenient for storage and transportation.


It can vacuum products such as grain, food, fruit, seed, aromatic substance, medicine,  chemical product, electronic product, precision instrument and meter, rare precious metal  etc. The products after packing can be prevented from oxidization, mildew, moth, rot and  damp, so the quality and freshness are guaranteed and accordingly the product’s storage  period is prolonged.

Parameters

MODEL

HVV-610F/1B

Voltage (V/Hz)

AC 380V/50Hz

Motor power (W)

1500

Sealing Power (W)

500

Ultimate Vacuum Pressure (Kpa)

1

Sealing Length (mm)

610

Sealing Width (mm)

10 or 2×3 or 3+ cut-off

Conveyor Width (mm)

235

Vacuum Pump capacity (m³/h)

63

Max. Vacuum Bag Length (mm)

720

Chamber Dimension (L×W×H) (mm)

700×356×980

External Dimensions (L×W×H) (mm)

730×1300×1346

Net Weight (Kg)

Approx. 335





Product Detail

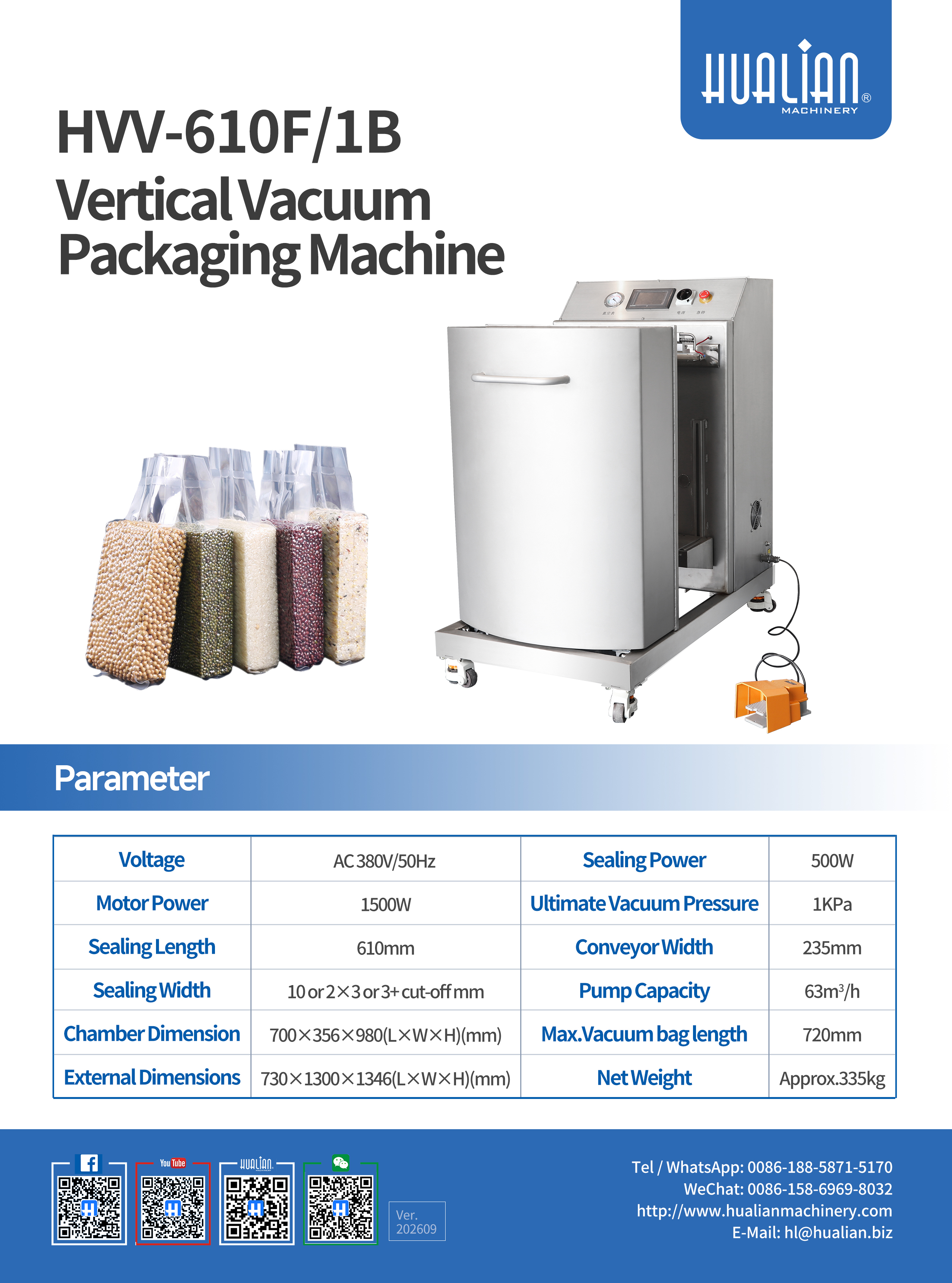

HVV-610F-1B Vertical Vacuum Packaging Machine
