Automatic Heat Shrink Tunnel With High Speed BS-5030X

Availability:
Quantity:
  • BS-5030X
  • Hualian

Description

BS-5030X High-Speed ShrinkTunnel is suitable for fully automatic shrink wrapping with high speed.



Features:

√Transparent window function can show shrinking process inside

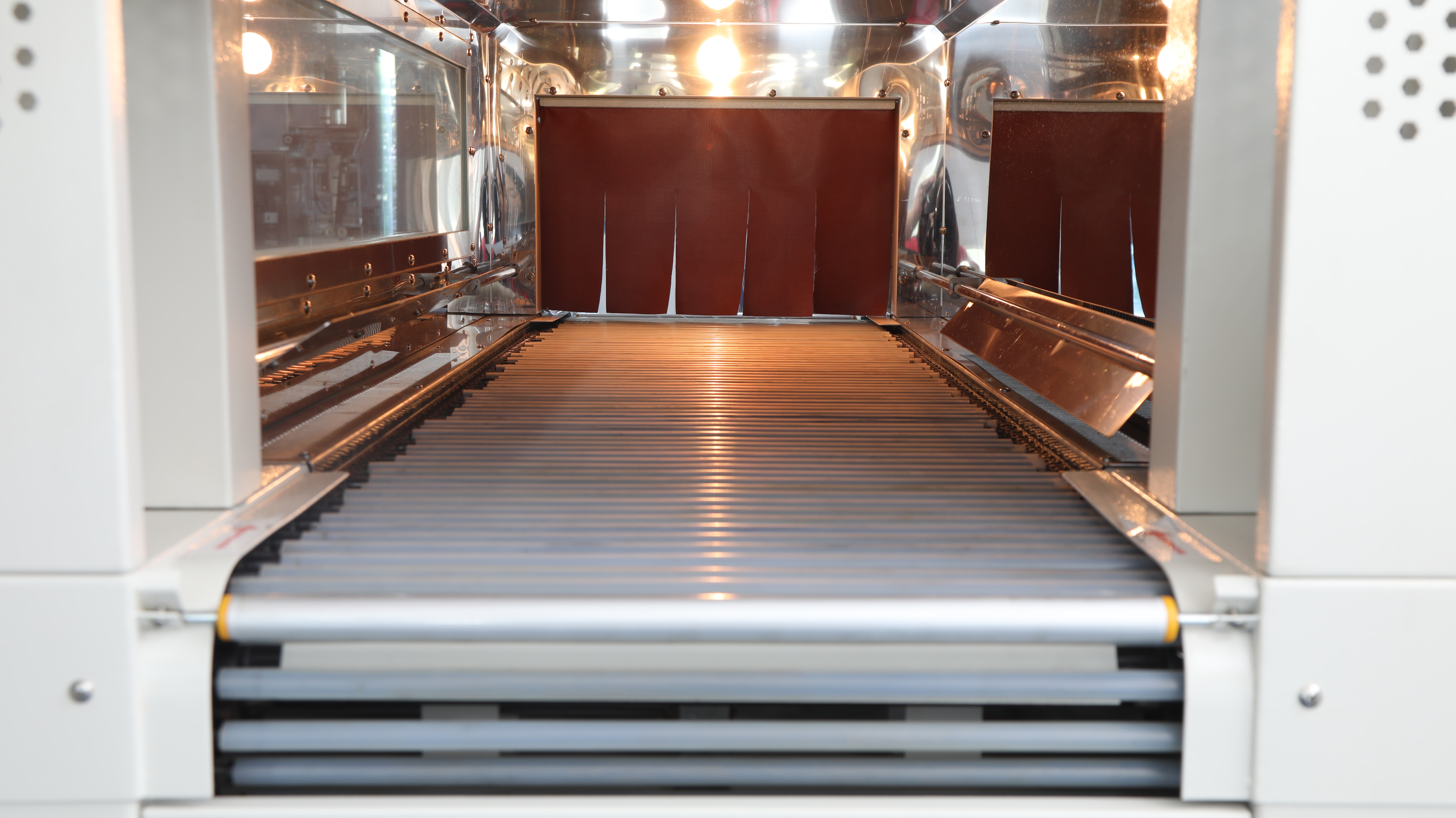

√It adopts a roll conveyor belt, also can adopt a TEFLON mesh belt or stainless steel mesh belt.

√Inner insulate shell, temperature uniformity.

√Speed of conveying belt can be regulated at will by the electric speed controller.



Application:

1. BS-X series shrink tunnels are applied to heat shrinkable film such as PVC, POF, PP, etc.

2. It is suitable for single and combinations packages such as cookies, books, CDs, glassware, tissue, paper card, photo frame, aluminum section, woodwork, etc.

3. To use in place where there is enough space, such as factory and warehouse, etc.


Parameters

MODEL

BS-5030X

Voltage(v/hz)

3 Phase 380/50  or  3 Phase 220/60

Power (kw)

13

Max. Packing Size (W×H)(mm)

400×250

Speed (m/min)

0~25

Tunnel Size (L×W×H)(mm)

1500×500×300

External Dimensions (L×W×H)(mm)

1800×990×1300

Net Weight (kg)

300


Product Detail

5 局部图上框

BS-5030X细节图

热缩封切机包装样品图


9 产品包装
