Rotary and inline tray sealers can perform many of the same packaging functions, but they organise production very differently.
Rotary systems alternate between loading and sealing stations, while inline systems move trays continuously through a conveyor-based line.
This guide compares both tray sealing machines to help you decide which setup better fits your production process.
The main difference between both is the production pattern.
A rotary tray sealer works as an alternating production cell. While one group of trays is inside the sealing station, the operator can load or unload another set. Once the sealing cycle is complete, the platform rotates and the next group takes its place.
An inline tray sealer works as part of a forward-moving production line. Trays enter through an infeed system, are positioned for sealing, pass through the machine, and continue toward downstream processes without returning to the loading operator.
Comparison Factor | Rotary Tray Sealer | Inline Tray Sealer |
Production flow | Alternating loading and sealing | Continuous forward movement |
Loading | Usually manual or semi-automatic | Usually conveyor-fed |
Sustained output | Strong for batch production | Stronger for high-volume continuous production |
Operator involvement | Higher | Lower direct tray handling |
Format flexibility | Well suited to planned batch changes | Strongest with longer repeated runs |
Initial line complexity | Lower | Higher due to greater integration |
Floor-space pattern | Compact work cell | Longer linear production path |
Automation potential | Semi-automatic to partially integrated | Strong full-line automation potential |
Best fit | Growing and flexible producers | High-volume continuous processors |
Your choice ultimately comes down to one question:
Does your production operate more like a flexible work cell or a continuous packaging line?
If trays are filled manually, products change regularly, and operators remain involved in loading and unloading, rotary equipment usually makes more sense.
If trays already arrive automatically and need to continue directly into inspection, coding, labelling, or case packing, inline equipment has the clearer advantage.
Understanding tray movement explains most of the differences between the two machine types.
A rotary machine normally uses two or more positions arranged around a rotating platform.
The operator loads filled trays into the available mould. The platform then moves them into the sealing station, where the machine performs the selected cycle. During that time, the operator can prepare the next set.
When sealing finishes, the platform rotates again. Finished packages become available for unloading while the newly loaded trays enter the sealing station.
This overlapping activity is the main productivity advantage.
With a conventional single-station semi-automatic machine, an operator may need to wait while the machine completes its cycle. Rotary production uses that same cycle time for loading and unloading.
Hualian’s HVT-450R rotary tray sealer, for example, uses a rotary double-station arrangement. Its rotary configuration can increase production capacity by approximately 35 to 45 percent compared with its conventional tray-sealing format, depending on the application.
This makes rotary equipment particularly useful for businesses that have outgrown basic tray sealing but do not yet need a fully automated production line.
An inline machine takes a different approach. Filled trays arrive through an infeed conveyor. Guides or indexing systems establish the correct spacing and position before a group of trays enters the sealing station.
Once the cycle finishes, those packages continue to the discharge side while the next group enters.
The trays keep moving in one direction.
That seemingly simple difference matters because it allows the sealing machine to become one stage within a larger automated process. Automatic filling equipment can feed it from one side, while inspection, coding, labelling, case packing, or robotic handling operates on the other.
Hualian’s HVT-350AZ inline tray sealer uses this linear production approach.
Fully automatic tray-sealing lines are designed around continuous product movement and can integrate with upstream and downstream automation.
For maximum sustained output, inline is the stronger choice.
That does not mean every inline machine is faster than every rotary machine. Output depends on the model, tray dimensions, tooling, packaging process, and number of trays sealed per cycle.
However, inline equipment has a higher ceiling because trays can be supplied continuously rather than depending on repeated manual loading and unloading.
A useful output calculation needs two numbers:
cycles per minute × trays per cycle = theoretical tray output
Consider two machines:
A machine completing ten cycles per minute with a four-cavity mould could theoretically process 40 trays per minute.
A different machine completing 15 cycles per minute with a two-cavity mould would theoretically process 30.
The machine with the higher cycle rate is not necessarily producing more packages. Tray dimensions, product height, mould layout, sealing area, and available machine width all influence how many packs can be processed during each cycle.
A rotary machine performs efficiently when the operator can unload and reload the available station before the sealing cycle finishes.
If the machine completes its cycle before the next set of trays is ready, it must wait.
This means actual output can be affected by:
Manual filling speed
Product arrangement
Operator movement
Tray availability
Quality inspection
Finished-pack collection
For a business already operating this way, rotary equipment can produce a significant improvement without forcing the entire process to become automated.
An inline machine faces a different constraint. The sealing machine itself may have substantial capacity, but that capacity only matters if the line keeps it supplied.
Slow portioning, missing trays, uneven spacing, filling interruptions, accumulation downstream, or labelling delays can reduce actual output.
This is why the highest-rated tray sealer is not automatically the highest-output packaging line.
Automatic inline systems from established manufacturers can operate at much higher throughputs than semi-automatic rotary equipment, illustrating the greater scalability of the format.
If reducing repetitive tray handling is a priority, inline has the advantage.
A rotary tray sealer uses labour efficiently, but an operator normally remains part of the cycle.
That person may:
Bring filled trays to the machine
Place trays into the mould
Remove sealed packs
Check package quality
Transfer completed trays to the next stage
Because one station can be loaded while another is sealing, the operator is not simply standing and waiting. That is one of the rotary format's biggest strengths.
But the process remains operator-supported.
An inline machine can remove much of that direct handling when integrated properly.
If operators will continue filling and handling individual trays, rotary often makes better use of the labour already available. If the goal is to reduce those handling steps, inline is better positioned for automation.
For frequent tray-format changes and shorter batches, rotary is generally the better fit.
The reason is not that an inline machine cannot change formats. Modern automatic tray sealers can be designed for excellent changeover performance.
The difference is how much of the production system a format change affects.
With a rotary work cell, the main changes may be concentrated around:
Tooling or mould
Film
Sealing settings
Loading position
For example, mould changes on HVT-450R rotary model can be completed in approximately 5 to 10 minutes. Other rotary systems in the market are also specifically engineered around quick tooling changes for flexible small and medium-batch production.
An integrated inline line may require adjustments to more equipment.
Changing the physical tray dimensions can potentially affect:
Tray denesting
Filling position
Conveyor guides
Indexing
Sealing tooling
Coding
Labelling
Inspection
Case packing
This does not make inline equipment inflexible. It means the benefit of an automated line becomes greatest when production runs are long enough to justify each setup.
Depending on your production volume, rotary generally has the lower entry complexity. Inline can produce the better cost per pack at sufficiently high and consistent volumes.
A rotary tray sealer can operate as a relatively self-contained workstation. Depending on the facility, it may only require the machine, tooling, operators, and short supporting conveyors or preparation tables.
A fully integrated inline system may involve:
Infeed conveyors
Automatic tray supply
Filling equipment
Guides and indexing
Discharge conveyors
Accumulation
Controls integration
Guarding
Inspection systems
Downstream equipment
The initial engineering commitment is therefore usually greater.
However, purchase price alone gives an incomplete picture.
Rotary production requires more repeated operator interaction.
Inline automation can spread labour across a much larger volume of finished packages.
If a plant is producing continuously across several shifts, reducing manual tray handling may eventually outweigh the additional automation investment.
Every production interruption has an economic effect.
For a batch producer that changes trays several times per day, a compact rotary work cell may avoid the complexity of adjusting an entire integrated line.
For a plant producing the same package for long periods, inline automation can take advantage of long uninterrupted runs.
Therefore, rotary is generally more economical when volumes are moderate, orders vary, and formats change regularly. Inline becomes more economical when high production volume, long runs, and reduced direct handling justify the additional automation.
A rotary tray sealer concentrates loading, sealing, and unloading around one operating area.
This can make it attractive where:
Factory space is compact
Trays arrive manually
Short conveyors are used
One or two operators manage packaging
Finished packs go to nearby equipment
Only the sealing stage is being upgraded
There still needs to be enough room for operators, film loading, cleaning, tray supply, maintenance, and finished-pack handling.
But the process does not require the same long forward path as a fully integrated inline line.
Inline equipment needs more than a place to put the tray sealer.
The installation may also require space for:
Infeed and discharge conveyors
Tray accumulation
Filling equipment
Checkweighing
Metal detection
Leak inspection
Coding
Labelling
Case packing
Guarding and maintenance access
That larger footprint has an operational benefit: the product can move through each stage without repeated manual transfers.
Modern integrated tray-sealing lines are increasingly designed around this connected approach, linking dosing or filling directly with tray sealing and downstream automation.
Neither format inherently guarantees better seal quality.
“Rotary” and “inline” describe how trays move through production. They do not define the actual quality of the bond between the tray and film.
Consistent sealing depends more directly on factors such as:
Tray-flange cleanliness
Tray positioning
Film tension
Film advance
Material compatibility
The main operational difference is how the tray reaches the tooling.
With rotary equipment, positioning often depends heavily on the operator placing the tray correctly into the mould.
With inline equipment, guides, conveyors, sensors, and indexing systems take greater responsibility for tray positioning.
Both approaches can produce consistent packages when set up correctly.
For food packaging in particular, product or liquid on the tray flange should be controlled before sealing. Accurate portioning and tray presentation are therefore part of seal consistency, not separate concerns.

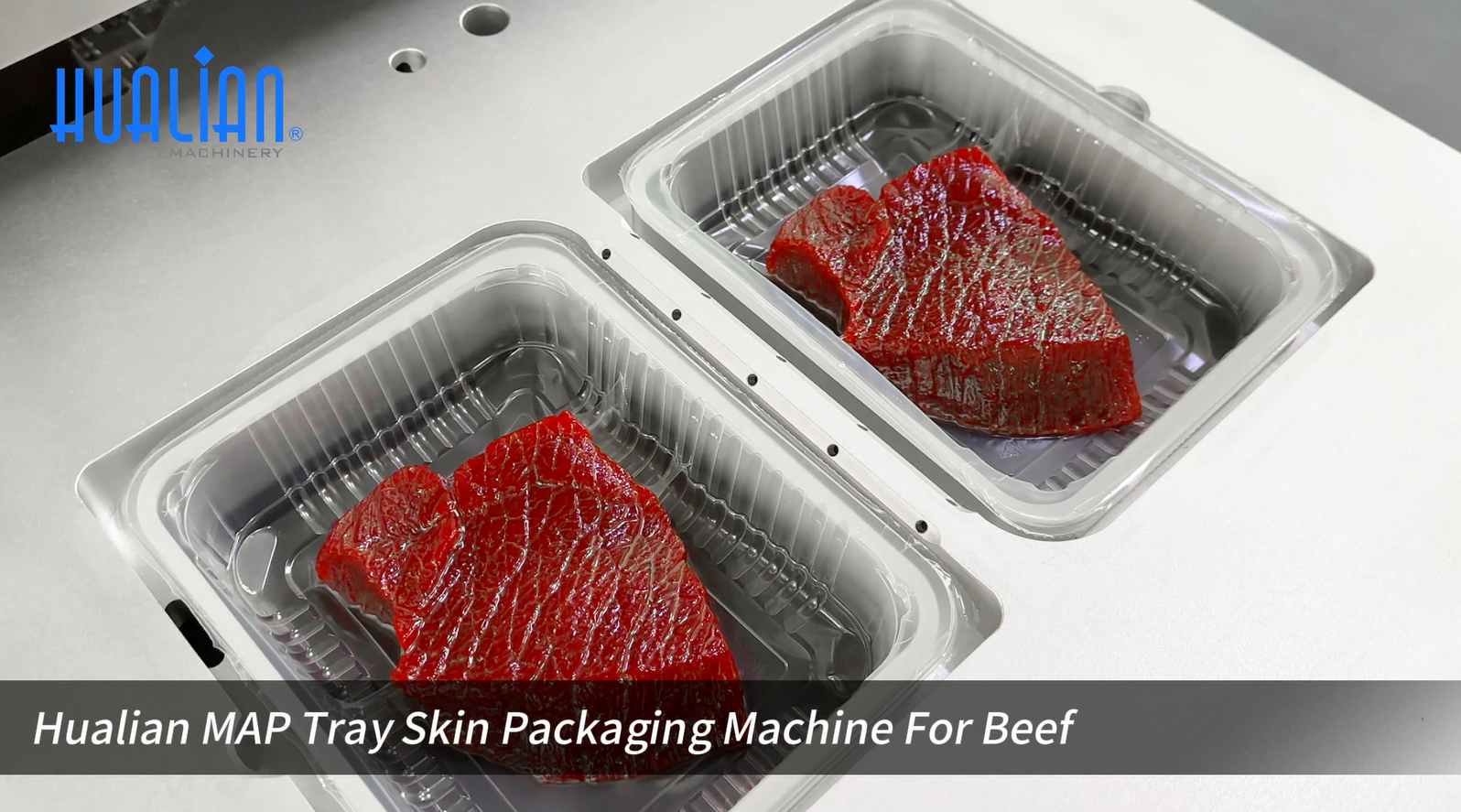

Yes, depending on the machine model and tooling. Rotary or inline machines may be configured for:
Simple tray sealing
Modified atmosphere packaging
Vacuum packaging
Vacuum skin packaging
If you require modified atmosphere packaging, for example, first confirm that the particular machine, tooling, tray, film, gas system, and vacuum configuration support MAP.
Then decide whether rotary or inline movement better fits the required production process.
Do not choose inline simply because you need MAP, or rotary simply because you need skin packaging. Those functions depend on the individual machine.
A rotary tray sealer is generally the stronger choice when production still benefits from human flexibility.
Consider rotary when:
Trays are loaded manually or semi-automatically.
Production runs in small or medium batches.
Several tray formats are used regularly.
Products or orders change throughout the day.
Factory space is compact.
Operators already handle filling and finished packs.
Demand fluctuates between products or seasons.
Greater output is needed than a basic single-station machine provides.
Full line automation is not yet commercially justified.
A growing ready-meal business is a good example.
If employees already portion food into trays manually and different recipes are produced in batches, replacing that entire workflow with automatic denesting, filling, conveying, sealing, and downstream automation may be unnecessary.
A rotary system can increase sealing productivity while preserving the flexibility of the existing operation.
This is why semi-automatic rotary tray sealers are commonly positioned for smaller businesses, new-product development, and small or medium production runs.
An inline tray sealer is generally the stronger choice when production volume and process consistency justify automation.
Consider inline when:
Trays already move on conveyors.
Automatic denesting or filling is used.
Production runs are long and repetitive.
High sustained output is required.
Direct tray handling needs to be reduced.
The sealer must connect with inspection, coding, labelling, or packing.
Adequate linear floor space is available.
Production volume supports the additional integration.
Future expansion is centred on automation.
Consider a processor packaging the same ready-meal tray across long shifts.
If trays can be automatically denested, portioned, sealed, inspected, labelled, and packed with minimal direct handling, the value of inline equipment extends well beyond sealing speed.
The entire production line becomes more coordinated.
This is where inline technology has its strongest advantage.
Instead of comparing machine specifications in isolation, work through the production process in the order the trays experience it.
Start with the overall operation.
Is production:
Batch-based or continuous?
Manually loaded or automatically supplied?
Frequently changing or highly repetitive?
Moderate volume or high volume?
If manual flexibility is still central to the operation, rotary deserves serious consideration.
If continuous flow already defines the process, inline will usually fit more naturally.
Determine how many finished trays are required:
Per hour
Per shift
During peak production
Then allow for real operating conditions such as:
Film replacement
Cleaning
Quality checks
Mould changes
Product changes
Planned maintenance
Do not size the machine solely around a theoretical maximum.
Follow the tray from the point it is created or supplied.
Ask:
How is it filled?
How does it reach the sealer?
Who positions it?
What happens immediately after sealing?
Does it need to enter a checkweigher, metal detector, label applicator, case packer, or another machine?
This exercise often makes the rotary-versus-inline decision much clearer.
Consider the complete production cost. A cheaper machine that cannot support future output may be expensive in the long term. An automated line that operates far below capacity can be equally difficult to justify.
Match the level of automation to realistic production demand.
Before final equipment selection, test the actual:
Product
Tray
Film
Mould
Packaging process
Expected speed
For rotary production, confirm that operators can reliably load and unload during the available cycle time.
For inline production, confirm that filling and downstream equipment can maintain the tray flow required by the sealer.
A production trial provides a much clearer picture of sustainable output and package quality than a specification sheet alone.
A rotary tray sealer and an inline tray sealer can perform many of the same packaging processes, but they solve different production problems.
Rotary is generally the better choice for compact, operator-supported batch production, especially where tray formats change regularly and flexibility is more important than full automation.
Inline is generally the better choice for sustained high output, reduced direct handling, long production runs, and integration with automatic upstream and downstream equipment.
The right system is therefore the one that matches how your factory actually fills, moves, seals, and handles trays.
If you are comparing the two formats for a new line or an upgrade, contact us with your product, tray dimensions, packaging process, required output, number of tray formats, filling method, available floor space, and automation requirements. Hualian Machinery can help determine which tray-sealing configuration best fits the complete production process.
A rotary tray sealer alternates trays between loading and sealing positions on a rotating platform. An inline tray sealer moves trays continuously forward through an infeed, sealing station, and discharge system. Rotary is generally more suitable for operator-supported batch production, while inline is better suited to continuous automated lines.
No. Actual output depends on the machine, trays per cycle, packaging process, tooling, and surrounding production equipment. However, inline equipment generally has the higher sustained-output potential because trays can be supplied continuously without depending on repeated manual loading.
An inline tray sealer generally requires less direct tray handling when integrated with automatic filling and downstream equipment. Rotary systems typically retain an operator for loading and unloading, although the alternating stations make efficient use of that operator's time.
It often is. Rotary systems can be particularly practical for batch operations using several tray formats because changeovers are concentrated around a smaller work cell. With a fully integrated inline line, changing tray dimensions may require adjustments to several connected production stages.
A rotary system generally has lower initial line complexity because it can operate with manual loading and fewer supporting machines. An inline system usually requires more conveyor, control, guarding, and integration equipment. At high production volumes, however, inline automation may produce a lower cost per pack through higher sustained output and reduced direct handling.
Yes. Modified atmosphere packaging is a packaging process rather than a tray-movement format. Depending on the specific machine and tooling, both rotary and inline tray sealers may support MAP, vacuum, seal-only, or vacuum skin packaging.
English
简体中文
ไทย
Pусский
