Water-Activated Tape vs. BOPP Tape at a Glance
How Do the Two Tapes Bond to Corrugated Cartons?
Which Tape Provides Better Closure Performance?
Which Carton Surfaces Work Best?
How Do Application Speed and Labour Compare?
How Does Uniform vs. Random Carton Sealing Affect the Choice?
How Do Tape Consumption, Cost, and ROI Compare?
What Are the Environmental and Recycling Considerations?
How Does Tape Choice Affect Branding and Customer Experience?
Which Tape Is Better for Different Applications?
When Is Water-Activated Tape the Better Choice?
When Is BOPP Tape the Better Choice?
The real difference between water-activated tape and BOPP tape is not simply that one requires water. Each material creates a different type of carton closure and a different packing process.
Water-activated tape uses a paper backing and a dry adhesive that becomes tacky after controlled moistening. When applied correctly to compatible corrugated board, the adhesive bonds closely with the carton fibres. BOPP tape uses a plastic film backing and a pressure-sensitive adhesive that sticks when pressed onto the carton surface.
Water-activated tape is often selected for secure, customer-facing shipments where tamper visibility and an integrated kraft-paper appearance matter. BOPP tape remains common because it is familiar, widely available, and easy to use with conventional carton-sealing equipment.
This comparison explains how each tape performs and how to select the appropriate carton-sealing system for your operation.
Comparison factor | Water-activated tape | BOPP tape |
Backing | Kraft paper, with reinforced and non-reinforced grades | Biaxially oriented polypropylene film |
Adhesive | Dry adhesive activated with water | Pressure-sensitive acrylic, hot-melt, natural rubber, or synthetic rubber adhesive |
Application | Moistened, placed over the seam, and pressed onto the carton | Applied directly and pressed onto the carton |
Carton bond | Bonds closely with compatible corrugated fibres | Adheres mainly to the carton surface |
Tamper visibility | Removal often damages carton fibres | May sometimes be cut, lifted, covered, or replaced with less visible damage |
Appearance | Integrated kraft-on-kraft finish | Clear, brown, coloured, or printed plastic finish |
Equipment | Manual or electric dispensers and automated WAT carton sealers | Tape guns and semi-automatic, automatic, or random carton sealers |
Mixed carton sizes | Possible with a random-adjustment WAT sealer | Possible manually or with a random BOPP carton sealer |
Initial setup | Requires controlled moistening and compatible equipment | Usually simpler where conventional taping equipment is installed |
Best fit | Secure, branded, tamper-evident, paper-oriented carton closure | Familiar workflows, broad availability, clear tape, and existing BOPP systems |
Water-activated tape generally creates a stronger fibre-level bond on suitable corrugated cartons and makes interference easier to see. Reinforced grades can also provide high tensile and tear resistance for demanding shipments. BOPP tape offers lower setup complexity and a wider range of familiar application options.
Water-activated tape, also called gummed tape or kraft paper tape, is a paper-backed carton-sealing material with an adhesive that remains dry until exposed to water.
During application, the tape passes through a moistening system. Water activates the adhesive before the tape is laid across the carton seam. Pressure then brings the adhesive into close contact with the corrugated surface while the bond develops.
A water-activated carton sealing machine controls the feeding, moistening, application, and pressing stages more consistently than uncontrolled hand wetting. The appropriate system may be a manual dispenser for occasional packing or a machine that seals cartons continuously as part of a line.
Non-reinforced WAT is made mainly from kraft paper and adhesive. It may suit lighter cartons, presentation-focused packaging, direct-to-consumer shipments, and operations seeking a more paper-oriented closure.
The filled weight, tape width, flap tension, and handling conditions still need to remain within the tape’s capabilities. Non-reinforced tape should not automatically be used for heavy cartons or boxes exposed to demanding distribution conditions.
Reinforced WAT contains fibres or another reinforcing structure within the backing. This improves tensile strength and resistance to tearing, making it more suitable for heavy cartons, double-wall boxes, longer transport routes, and rougher distribution conditions.
Reinforcement does not remove the need for correct activation. A strong backing cannot compensate for insufficient moisture, poor application pressure, a dusty seam, or a carton surface that prevents the adhesive from bonding.
Performance varies with the paper grade, reinforcement material, tape width, adhesive formulation, water quantity, water temperature, application pressure, and carton construction. Reinforced and non-reinforced WAT should therefore be treated as separate specifications rather than interchangeable versions of the same product.
BOPP tape is made with a biaxially oriented polypropylene film backing coated with a pressure-sensitive adhesive. It does not require moistening. The adhesive bonds when the tape is pressed firmly onto the carton surface.
Its widespread use comes partly from its flexibility. BOPP tape can be applied with a handheld tape gun, a semi-automatic carton sealer, or a fully automated system. It is also available in clear, brown, coloured, and printed formats.
The term BOPP tape covers many different products. Film thickness, adhesive coat weight, tape width, and adhesive chemistry can vary substantially. A low-grade general-purpose roll may perform very differently from a heavy-duty tape selected for recycled corrugated board, cold storage, or extended transport.
Common adhesive systems include acrylic, hot melt, natural rubber, and synthetic rubber. The formulation affects initial tack, holding power, temperature performance, ageing, and compatibility with rough or recycled carton surfaces.
The tapes perform differently because they create different types of contact with the carton.
After activation, the adhesive on WAT spreads across the porous corrugated surface and bonds closely with compatible paper fibres. This can create broad contact along the seam and an integrated paper-on-paper appearance.
When the tape is removed, it often pulls fibres from the carton or tears the outer liner. That visible damage is one reason WAT is used for tamper-evident shipping.
Successful bonding requires the right amount of moisture, adequate pressure, a clean carton seam, and a compatible porous surface. Highly coated, waxed, contaminated, or low-absorbency cartons may prevent the adhesive from forming the intended bond.
BOPP tape relies on a tacky adhesive that remains mainly on the carton surface. Pressure allows the adhesive to flow into small irregularities in the board.
The final bond depends on adhesive formulation, roller pressure, tape tension, carton temperature, surface cleanliness, and shipping conditions. If the tape is stretched too tightly during application, it may pull back and lift at the ends. If pressure is too low, the adhesive may not develop full contact.
Dust, rough recycled board, cold cartons, and low-surface-energy coatings can also reduce adhesion. Common symptoms include lifting, flagging, splitting, and opening under flap tension.
Water-activated tape and BOPP tape therefore fail for different reasons, but neither is reliable without the correct tape-carton-machine combination.
Water-activated tape generally provides stronger sealing performance than standard BOPP tape when correctly specified and applied to compatible corrugated board. Its fibre-level bond, paper backing, and the reinforcement available in heavy-duty grades can provide strong adhesion, tensile resistance, and clear evidence of interference.
That does not mean every WAT product will outperform every BOPP tape. Closure strength comes from several parts of the package working together.
A reinforced WAT may be a strong choice for a heavy double-wall carton, but it can still fail if it is under-moistened or applied to a coated surface. A properly selected heavy-duty BOPP tape may outperform an unsuitable WAT grade under those conditions.
BOPP performance changes with film thickness, adhesive type, coat weight, tape width, application pressure, and the number of strips used. Applying additional strips may increase material use without correcting an underlying adhesion problem.
The meaningful test is not whether a tape can close an empty sample carton. Test the actual box at its normal filled weight and assess it after handling, stacking, storage, vibration, and temperature changes.
WAT usually provides the clearer tamper-evident closure. Because the adhesive bonds with the paper surface, removal often tears the carton liner or leaves disturbed fibres.
BOPP tape may sometimes be cut and replaced, lifted under favourable conditions, covered with another strip, or removed with less visible carton damage. The outcome depends on the adhesive and board, but interference may be less obvious.
This difference can be important for e-commerce orders, electronics, pharmaceuticals, premium retail products, spare parts, and other shipments where the recipient should be able to identify possible opening.
The correct description is tamper-evident rather than tamper-proof. Tape should form part of a broader shipment-security process that includes controlled packing, traceability, access management, and inspection.
A freshly applied seal is only the beginning of the test. Cartons may encounter heat, cold, humidity, vibration, abrasion, stacking pressure, and repeated temperature changes before they arrive.
For WAT, consistent activation is critical. Water quantity and temperature, carton absorbency, pressure, and setting time all affect the bond. The tape should not be judged while the adhesive is still developing.
For BOPP tape, the adhesive chemistry becomes especially important. Acrylic, hot-melt, and rubber-based systems can perform differently during cold storage, high heat, humid transport, and long-term ageing.
Distribution testing is more useful than relying on a seal inspected only a few minutes after application.
WAT performs best on clean, dry, porous corrugated board. Virgin kraft board often provides a suitable surface, but board composition alone does not guarantee performance.
Recycled cartons vary in roughness, dust, fibre quality, absorbency, and surface treatment. Some accept WAT well, while others require a different tape grade or application setting. Printed cartons may also perform differently depending on whether ink, varnish, or coating covers the sealing area.
Waxed board, moisture-resistant coatings, heavy contamination, and low-absorbency surfaces may prevent WAT from bonding correctly.
BOPP tape can work across a broad range of cartons, but dusty board, rough high-recycled-content surfaces, cold cartons, and some coatings may require a more aggressive adhesive or heavier coat weight.
Reused boxes create additional uncertainty. Previous tape, torn fibres, crushed edges, and dirt can all interfere with the new closure.
Buyers should test the actual tape and carton together. A supplier specification for the tape and a separate specification for the box cannot show how the combined closure will behave.
Application method has as much influence on output as tape type.
Manual WAT dispensers measure, cut, and moisten strips for the operator. Electric models can improve repeatability by delivering preset lengths and more consistent activation. The operator still needs to centre the tape over the seam and press it firmly onto the carton.
This approach can work for low- or moderate-volume packing, but the process becomes labour-intensive when carton flow increases.

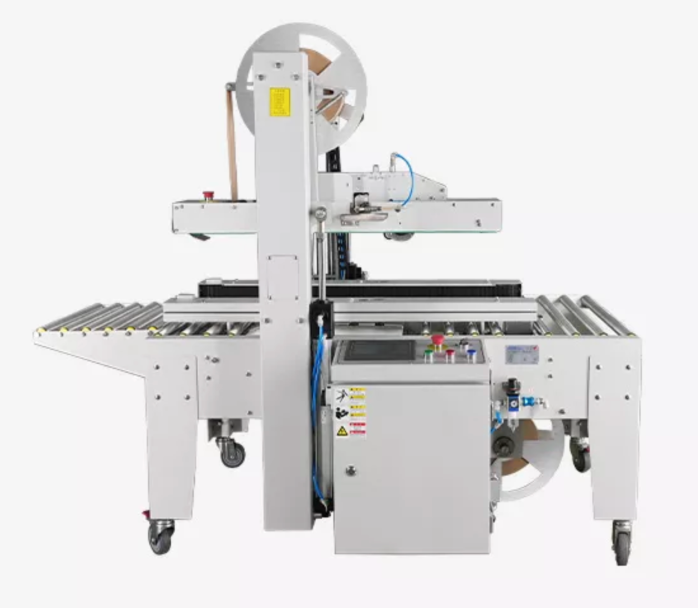

An automated water-activated carton sealing system like Hualian’s HCS-55AW controls tape feeding, moistening, application, pressure, and carton transport in one sequence.
HCS-55AW can operate in a locked mode for repeated carton dimensions or use pneumatic adjustment when different carton sizes arrive. Independent upper and lower sealing controls allow the setup to match the required closure, while touchscreen operation supports standalone or line-integrated use. The machine accepts water-activated kraft paper tape from 48 to 75 mm wide.
BOPP tape is easier to introduce where conventional equipment already exists. Handheld tape guns suit intermittent work, while semi-automatic machines create a more regular process for repeated cartons.

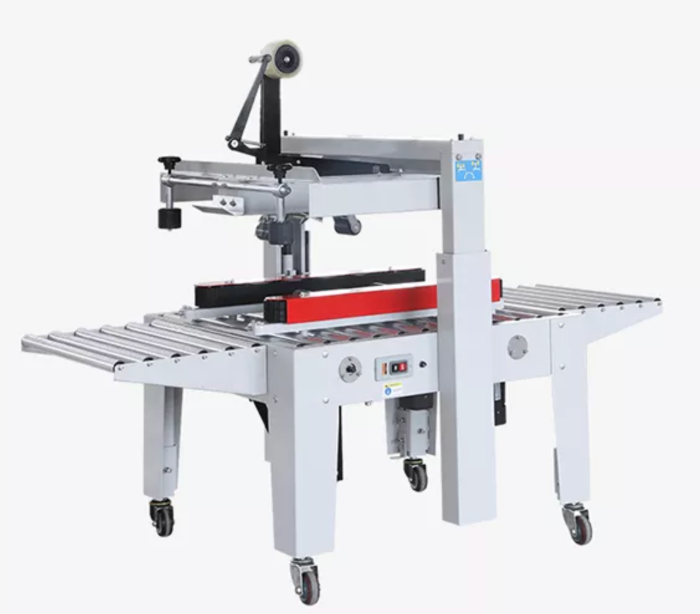

Hualian’s semi-automatic BOPP carton sealer represents a conventional solution for repeated case sealing. The FXJ-5050A can operate independently or within a packaging line, making it relevant where the operation already uses pressure-sensitive tape and does not need to change the closure material.
Machine speed should be considered within the complete workflow. A faster sealer will not increase final output if carton forming, filling, flap closing, labelling, or collection remains the bottleneck.
Uniform carton production uses repeated box dimensions for a sustained run. Once the sealer is adjusted, the setting can remain locked. This reduces changeovers, keeps tape placement predictable, and makes operator training simpler.
Random carton sealing handles boxes of different heights and widths within the same workflow. It is common in e-commerce fulfillment, distribution centres, contract packing, mixed-SKU operations, and spare-parts shipping.
In these environments, machine selection may matter as much as the tape itself. A closure material can perform well, but production will still slow if operators must stop and readjust the sealer for every carton.
The HCS-55AW addresses this difference by offering locked uniform operation and pneumatic adjustment for mixed cartons. The operational benefit is that one WAT sealing process can handle both repeated batches and variable-order workflows.
Random adjustment still requires properly prepared cartons. Boxes must enter with aligned flaps, stable contents, and dimensions within the machine’s operating range.
Roll price is one of the easiest figures to compare and one of the least useful when viewed alone.
The true cost depends on tape width, carton length, overlap, top-only or top-and-bottom sealing, number of strips, setup waste, roll changes, labour, rework, and failed shipments.
A practical calculation is:
Total sealing cost per carton = tape consumed + labour + equipment allocation + maintenance + rework and failure costs
WAT may have a higher material or equipment cost, particularly when reinforced tape or an automated moistening system is required. The operation may also need water, compressed air, routine cleaning, and replacement parts.
Its value may come from using one secure strip instead of several BOPP strips, reducing manual handling, improving tamper visibility, and strengthening branded presentation. These benefits should be measured rather than assumed.
BOPP tape may require less initial investment because handheld tools and conventional carton sealers are already common. The cost can increase when low-grade tape leads to lifting, additional strips, repacking, or damaged shipments.
Compare cartons sealed per shift, labour hours, tape used per carton, downtime, rework, damage claims, and expected production growth. The more expensive roll may still produce the lower cost per successfully delivered carton.
Equipment planning should also consider what happens after sealing. When throughput justifies it, connecting the sealer to a carton sealing and strapping line can reduce handling between carton closure and load reinforcement.
WAT may support a more paper-oriented package because its backing is generally kraft paper. It can reduce visible plastic use and create a closure that looks integrated with the corrugated carton.
That does not make every WAT product fully recyclable, biodegradable, or compostable. Reinforcement material, adhesive chemistry, paper source, tape weight, manufacturing, transport, and local recycling infrastructure all affect the environmental result.
Reinforced tape may contain non-paper fibres that change how it behaves in a recovered-paper system.
BOPP tape has a plastic backing that usually enters paper recovery as a non-paper component. Recycling facilities may remove it during pulping and screening, but acceptance and processing vary by location.
Buyers should verify material declarations, certifications, local collection rules, destination-market requirements, and the recycling compatibility of the exact tape. Claims such as “may support paper-based packaging goals” or “can reduce visible plastic use” are more defensible than universal environmental promises.
Carton tape also affects how the shipment looks and how the customer experiences opening it.
WAT creates a kraft-on-kraft appearance that can feel integrated and deliberate. The paper surface can carry logos, handling instructions, security messages, or opening guidance. Visible fibre damage after removal can also reassure the recipient that the carton has not been opened unnoticed.
These qualities are useful for direct-to-consumer brands, subscription boxes, gift products, luxury retail, and premium e-commerce deliveries.
BOPP tape offers different presentation options. Clear tape keeps printed carton graphics visible, while brown, coloured, and printed films can support identification or branding. Customers are also familiar with cutting or peeling conventional plastic tape.
WAT often provides the more unified paper appearance. BOPP provides transparency and broader colour flexibility.
WAT is attractive when tamper visibility, branded presentation, and customer-facing security are priorities. Random carton automation can also make it practical for fulfilment centres processing mixed orders.
BOPP remains suitable where equipment is already standardized, setup must remain simple, and security requirements are moderate.
For secondary food and beverage packaging, the decision depends on carton cleanliness, humidity, storage temperature, package weight, and production volume.
Neither tape should be assumed suitable for direct food contact unless the exact material has been designed and verified for that purpose.
These applications may benefit from the visible interference associated with WAT. Tape selection alone, however, does not establish regulatory compliance or provide complete shipment security.
The closure must work alongside traceability, controlled packing procedures, product identification, and returns management.
Industrial shipments may require reinforced WAT or a heavy-duty BOPP grade. Double-wall cartons, sharp components, rough handling, and top-and-bottom sealing can change the required specification.
Testing at the actual filled weight is essential because the tape cannot compensate for a carton that is too weak for its contents.
WAT is often the better choice when the business needs visible evidence of opening, a strong bond with compatible corrugated fibres, a kraft-paper appearance, printed branding, or a secure customer-facing shipment.
It also becomes more attractive when the operation wants to reduce multiple-strip taping or automate the sealing of both uniform and mixed carton sizes.
The recommendation is conditional. WAT needs compatible cartons, the correct reinforced or non-reinforced grade, controlled moistening, adequate pressure, and suitable dispensing or sealing equipment.
BOPP tape may be the better fit when the operation values a familiar process, broad material availability, clear or coloured tape, intermittent sealing, or compatibility with existing machinery.
It usually requires less change to a conventional packing station and may involve a lower initial equipment commitment.
The adhesive must still be matched to the carton surface, warehouse temperature, shipping environment, and storage period. Familiarity should not be mistaken for automatic reliability.
Water-activated tape and BOPP tape support different packaging priorities.
WAT generally provides stronger fibre-level bonding on compatible corrugated board, clearer tamper evidence, and a more integrated paper appearance. It is well suited to secure, branded, customer-facing shipments and can be automated for repeated or mixed carton sizes.
BOPP tape provides familiar application, broad availability, low setup complexity, clear and coloured formats, and compatibility with conventional carton sealers.
The better choice depends on the carton surface, filled weight, shipping risk, environment, labour model, equipment, presentation goals, and total cost per successfully delivered carton.
Test the actual package after the seal has set and expose it to realistic storage, stacking, handling, and transport conditions. A tape that looks acceptable immediately after application may not remain reliable through distribution.
Ready to choose the right carton-sealing system for your operation? Contact us with your carton dimensions, filled weight, tape preference, production volume, and carton-size range. Hualian Machinery can help you compare suitable water-activated and BOPP sealing solutions and recommend a setup that matches your packaging line, output goals, and distribution requirements.
Water-activated tape has a paper backing and a dry adhesive that must be moistened before application. BOPP tape has a polypropylene film backing and a pressure-sensitive adhesive that bonds when pressed onto the carton.
WAT generally provides stronger fibre-level bonding on compatible corrugated board, and reinforced grades can offer high tensile and tear resistance. A heavy-duty BOPP tape may still outperform an unsuitable or incorrectly applied WAT product.
WAT usually provides better tamper evidence because removal often tears the carton surface or pulls away visible fibres. BOPP tape may sometimes be cut, lifted, covered, or replaced with less obvious damage.
It can be, but recycled board varies in absorbency, roughness, dust, coatings, and fibre quality. Test the exact tape on the actual recycled carton before approving the closure.
Reinforced WAT and heavy-duty BOPP tape can both be suitable. The decision depends on carton strength, tape width, adhesive or reinforcement, flap tension, filled weight, and distribution conditions.
Yes. A random-adjustment model such as the HCS-55AW can adapt to mixed carton sizes, while its locked mode supports repeated carton dimensions.
