Hualian thermoforming vacuum packaging machine has high automation, it can continuously finish the procedure of film forming, automatic or manual products feeding, vacuuming (or gas flushing) or skin packaing, sealing, cutting, etc. And it is made of 304 stainless steel and the mold is made of high-strength aluminum alloy, so the machine sturdy and durable. Hualian food thermoforming packing machine equipped with Double Busch vacuum pump for higher efficiency and with Panasonic servo motor and driver for fast operating speed, effectively reduce the operating costs of labor and equipment investment. It widely used to skin pack the products like kinds of snacks, cheese, seafood, sausage, ready-meal, meat, medical products, hardware, medical equipment, etc.

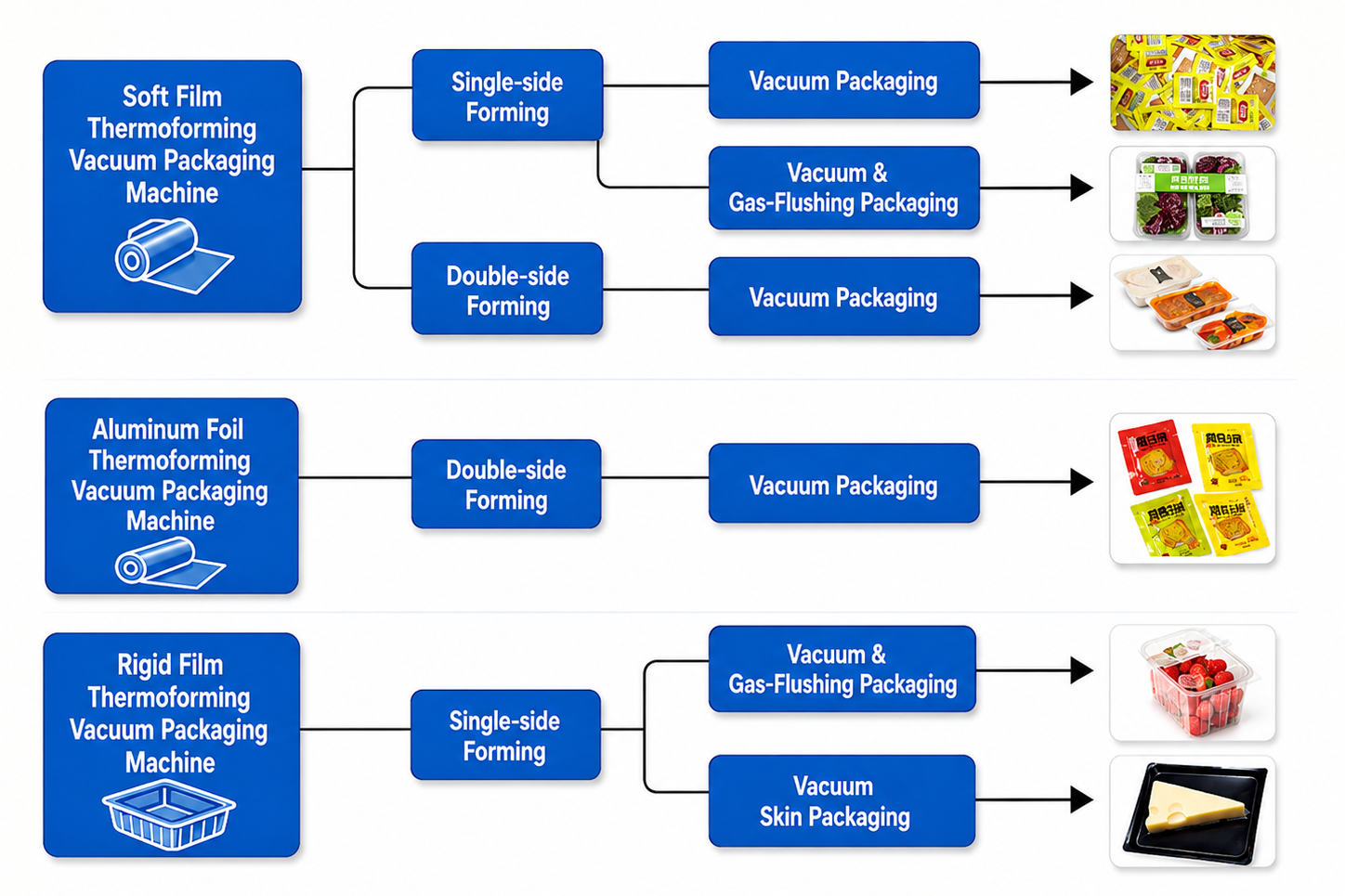

Compare Thermoforming Packaging Machine Series
Hualian thermoforming packaging machines are categorized into three series based on packaging format: flexible film, rigid film, and aluminum foil thermoforming packaging machines；They are also categorized into three series based on speed: compact, medium-speed, and high-output thermoforming packaging machines.
| Model | Film | Packaging | Forming Depth (mm) | Capacity (Cycles/min) | External Dimension x (L×W×H) (mm) | Best For |

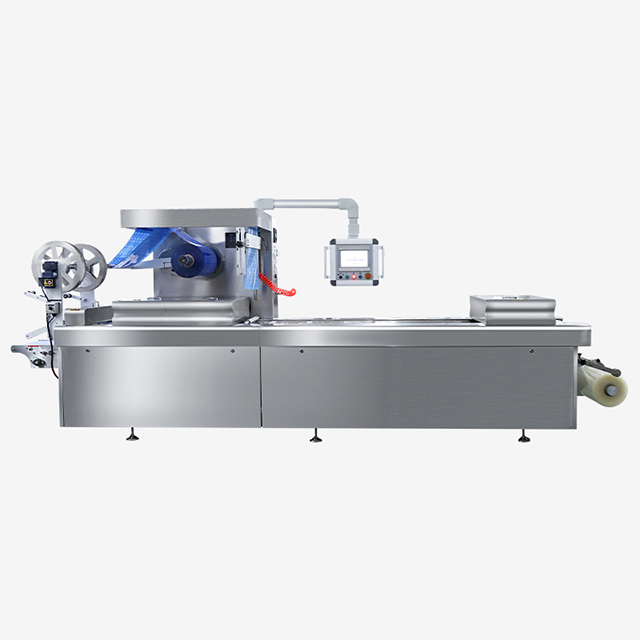

| HVR-A Series | Flexible Film| Rigid Film | Vacuum| MAP| VSP | 80 | 4-6 (Vacuum+Sealing) | 5200×(1005-1205)×1895 | General-Purpose High-Speed Packaging |

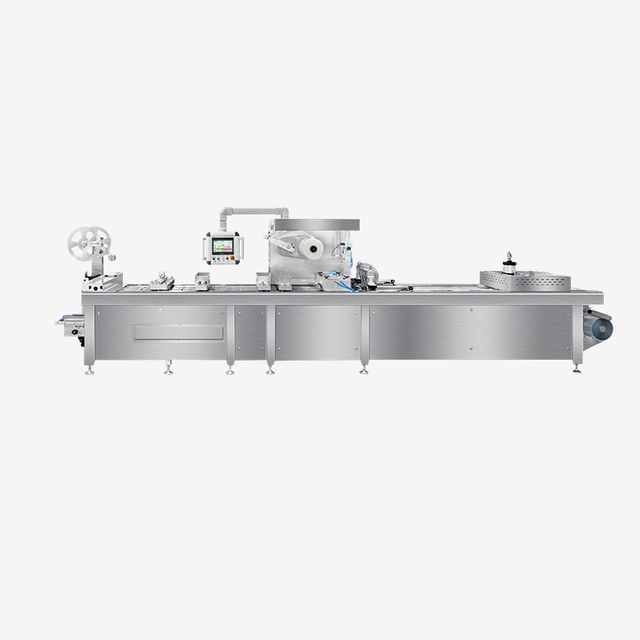

| HVR-A(Q) Series | Flexible Film| Rigid Film | Vacuum| MAP| VSP | 120 | 4-6 (Vacuum+Sealing) | 3012×1014×1905 | Deep-Draw & Large Product Packaging |
| HVR-S Series | Aluminium compound film | Vacuum| MAP| VSP | Upper Film: ≤5 Bottom Film ≤10 | 4-6 (Vacuum+Sealing) | 5200×(1005-1205)×1895 | Aluminum Foil Packaging |

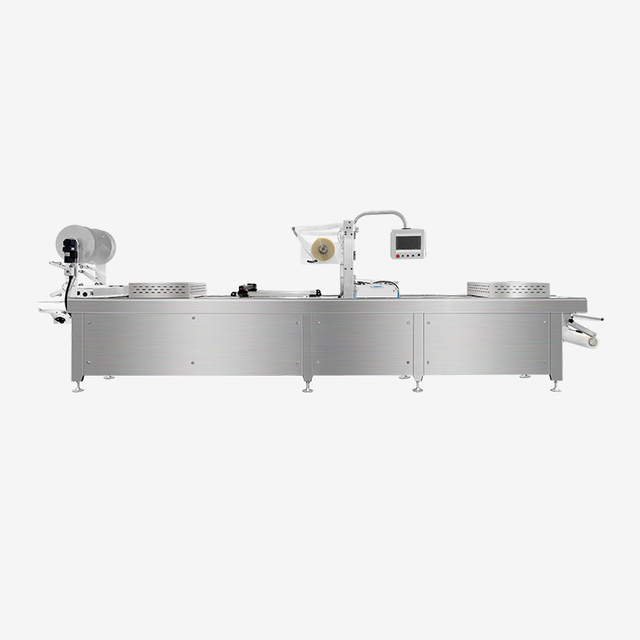

| HVR-A-U Series | Flexible Film| Rigid Film | Vacuum| MAP| VSP | 120 | Vacuum: 12 Vac-gas flush: 8 | without coder: 4770×915×1875 with coder: 5770×915×1875 | High-Output Vacuum & MAP Packaging |
How to Choose the Right Thermoforming Packaging Machine Model
This Automatic thermoform vacuum packaging machine utilizes upper and lower soft-film packaging materials. The upper film is a composite material, while the lower film is a stretch film. When working, the lower film is driven into the forming mold by the film clamping chain, and the stretch bottom film is stretched into shape, and then the product is placed in the forming area, and then it runs to the sealing mold, covers the upper film, and then vacuumizes (some products need to be filled with nitrogen on the basis of vacuumization), seals, exhausts, and can automatically perform cross-cutting and longitudinal cutting, and each product is independently divided into a machine.
3 Packaing Style: Vacuum packaging, MAP modified atmosphere packaging, VSP vacuum skin packaging.
Customized Molds: It can customized interchangeable molds, enable single machine to meet different sizes of products.
Whole Line Solution: We can provide front-end and back-end equipment, seamless integration into your production line.
Good Performace: Neat and even bottom film formed by specially crafted molds, and the product surface is beautiful.
Multifunction: Multiple languages operating system interface, with various functions built-in.
Environmental Hygiene: It equips with recycling device for waste film and ensure healthy environment.
Accurate Positioning: It works with sensor for accurate positioning. It is available for vanish-film or color film to pack.
Safe And Reliable: All-round safety protection devices for heating, cutting and moving parts, also equipped with automatic fault alarm system, to achieve a safer packaging environment.
High quality imported film-clamping chain can achieve high-speed operation, excellent packaging effect, and are easy to maintain.
Improve Using a special forming device, the base film is formed neatly and evenly, which can greatly reduce the defective rate.
Contact us today to discover Hualian's thermoforming vacuum packaging machines collection.
