How Do Continuous Band Sealers and Impulse Sealers Work?
Continuous Band Sealer vs. Impulse Sealer at a Glance
Which Machine Gives You Better Production Speed?
Which Sealer Produces a Better Seal?
Which Packaging Materials Can Each Machine Seal?
How Do Bag Size, Weight, and Product Position Affect the Choice?
How Much Operator Involvement Does Each Machine Require?
What About Coding and Traceability?
Cost, Energy Use, and Maintenance
Space and Packaging-Line Integration
Where Does Each Sealer Work Best?
When Should You Choose a Continuous Band Sealer?
When Should You Choose an Impulse Sealer?
The real difference between an impulse sealer and a continuous band sealer is not the heating method. It is the kind of production system each one creates.
With an impulse sealer, every package is a separate task. The operator positions the bag, closes the seal, waits, removes it, and starts again. A continuous band sealer turns sealing into part of the line itself, with bags moving through the machine in sequence.
This comparison looks at where each machine performs best, and which one is right for your packaging operation.
Both machines use heat and pressure to join the sealable layers of a bag. The difference lies in how the heat is delivered and how the package moves through the machine.
A continuous band sealer keeps the bag moving. An impulse sealer completes a separate heating and cooling cycle for each package.

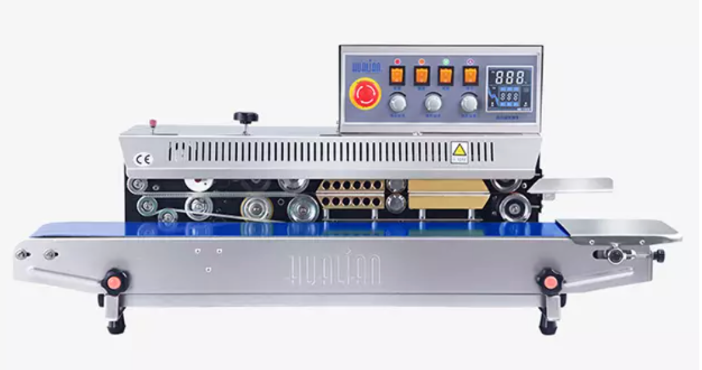

A continuous band sealer closes filled, pre-made bags while they move along a conveyor.
You first flatten the open end of the bag and guide it into the sealing section. Moving bands grip the bag mouth and carry it forward. The material passes through a heated zone, where the inner sealable layers soften. Pressure joins those layers before a cooling section allows the new bond to set.
Cooling is essential. The film remains soft immediately after heating, so a seal that looks complete may still stretch or separate if handled too soon.
Most continuous band sealers allow you to adjust the temperature and conveyor speed. These settings work together:
A slower conveyor increases heat exposure.
A faster conveyor shortens it.
A higher temperature transfers more heat into the seal.
A lower temperature protects thin or sensitive films.
Too little heat may leave the layers only partly fused. Too much can wrinkle, shrink, or burn the material.
Band sealers are generally available in horizontal and vertical layouts. Horizontal machines suit bags that can lie flat or remain stable. Vertical machines keep the package upright, which helps when loose contents could move toward the opening.
Some models can also add dates, batch numbers, or other codes during sealing. However, the machine normally closes bags that have already been formed and filled.
An impulse sealer closes one bag during each cycle.
You position the bag mouth between the jaws and activate the machine. The jaws close and apply pressure while a short electrical pulse heats the sealing element. The film layers soften and fuse, then cool while the jaws remain closed.
Once the seal has set, you remove the package and repeat the process.
An impulse sealer does not maintain a continuously heated path. It generates heat only during the active cycle, which makes it practical for intermittent work.
Common designs include:
Hand-operated tabletop units
Foot-operated sealers
Pneumatic models
Double-impulse machines
A hand model may suit light work. Foot-operated units leave both hands free to hold the bag, while pneumatic models reduce operator effort. Double-impulse machines heat from both sides and may be better for thicker materials.
Comparison factor | Continuous band sealer | Impulse sealer |
Sealing method | Bags move through heating, pressure, and cooling sections | Each bag completes a separate cycle |
Production flow | Continuous | Stop-start |
Typical output | Medium to high | Low to moderate |
Operator role | Feed, align, inspect, and collect | Position, activate, cool, and remove |
Heat delivery | Maintained during operation | Short timed pulse |
Seal consistency | Highly repeatable once settings are correct | More dependent on placement and cycle control |
Package flexibility | Limited by conveyor and machine layout | Easier for irregular or changing sizes |
Bag orientation | Horizontal or vertical | Flexible manual positioning |
Coding | Often available inline | Usually separate |
Space required | More room | Usually compact |
Initial cost | Higher | Lower |
Best fit | Repetitive daily sealing | Short runs and occasional production |
The main difference is production rhythm. A band sealer keeps similar packages moving. An impulse sealer gives you closer control over each bag but requires a new cycle every time.
A continuous band sealer usually provides higher output because packages do not stop for separate heating and cooling cycles.
Once the machine reaches its operating temperature, you can feed bags one after another. The heating, pressing, and cooling stages work at the same time on different packages. While one bag is entering the heated zone, another may already be cooling.
That overlapping process is what allows continuous sealing machines to maintain a steady flow.
The sealer alone does not determine your final output.
Production may still be limited by:
Filling speed
Bag alignment
Product stability
Collection after sealing
A high-speed machine cannot improve the line if the operator spends most of the shift waiting for bags to be weighed and filled. The slowest stage still controls the pace.
The package also affects speed. A flat pouch is easier to feed than a tall bag whose contents shift during movement. Heavy packages may require slower handling even when the machine can run faster.
An impulse sealer may provide enough capacity when you handle short batches or change bag sizes often.
Foot-operated and pneumatic models can improve the rhythm, but the process remains cycle-based. Each package must still be positioned, sealed, cooled, and removed.
The sealing stage becomes a bottleneck when filled bags begin waiting for their turn. At that point, a continuous machine may provide more value than the lower purchase price of an impulse sealer.
Measure how many acceptable packages your complete process can fill, seal, inspect, and move during a normal shift. That figure matters more than the machine’s maximum advertised speed.

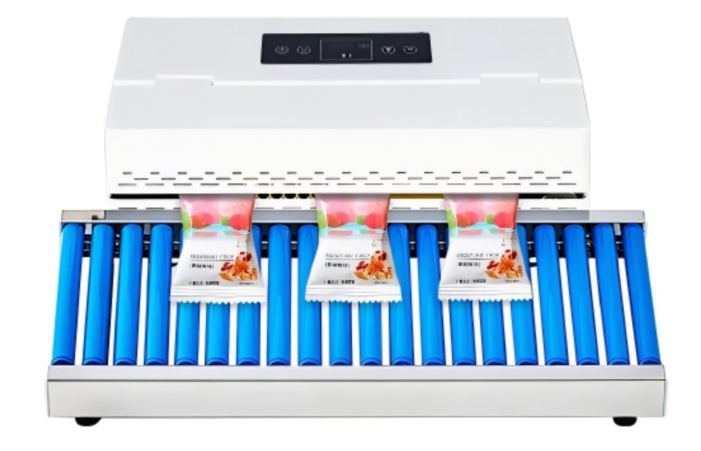

Both machines can create strong, reliable seals.
A band sealer is not automatically stronger, and an impulse sealer is not inherently inconsistent. Seal quality depends on the material, temperature, pressure, cooling time, and condition of the bag mouth.
A band sealer performs especially well during repeated runs of similar packages.
Once you establish the correct temperature and conveyor speed, every bag passes through the same process. This helps reduce variation over a long production run.
The cooling section also improves consistency by stabilizing the film before the package leaves the conveyor.
The machine still depends on proper bag preparation. A fold can create a channel through the seal, while oil, powder, or moisture may prevent the layers from bonding.
Your operator should:
Keep the opening flat
Prevent product from entering the seal area
Feed the bag at a consistent angle
Watch for changes in seal appearance
Continuous operation makes a good process repeatable. It does not correct poor preparation.
An impulse sealer can create a clean bond when the heating and cooling times are properly adjusted.
Manual positioning gives you more control over irregular packages. The trade-off is that results may vary between cycles or operators.
One bag may sit farther inside the jaws than another. An operator may release the seal too early or allow a wrinkle into the sealing area.
Positioning guides can improve consistency. Foot or pneumatic activation also helps because both hands remain available to hold the package.
Do not judge the seal by appearance alone.
A smooth line may still hide a weak section or narrow leak path. The seal should remain secure during handling, stacking, storage, and transport.
Useful checks include:
Pulling gently at the seal
Pressing the filled bag and checking for air loss
Inspecting for wrinkles or burned areas
Testing after the package has cooled fully
Rechecking after storage
Use the actual bag at its normal filled weight. Empty film samples do not reproduce the pressure created by the product inside.
The machine category does not determine material compatibility on its own. The important factor is the heat-sealable layer inside the package.
Polyethylene and polypropylene are common examples. Laminated pouches may combine several materials to provide strength, print quality, or protection from moisture while retaining a sealable inner layer.
Impulse sealers often work well with films that respond to a short burst of heat. Thin polyethylene is a common example.
Band sealers are widely used for repeated sealing of thermoplastic and laminated packages under controlled settings.
Two bags that look similar may need very different settings.
A single-layer plastic bag softens quickly. A multilayer pouch may require more heat to reach the inner sealing layer. Foil laminates and paper-plastic structures may also behave differently.
Thickness changes the process:
Thick materials may need more heat or longer exposure.
Thin films can distort when overheated.
Multilayer films may need more cooling.
Double-impulse jaws may help with heavier structures.
The product can also interfere with sealing. Fine powder, oil, or moisture near the opening may prevent full contact between the film layers.
Confirm the material structure and recommended sealing range with your packaging supplier, then test the package on the intended machine.
A machine may seal your film successfully but still be unsuitable for the filled package.
The bag has to move through the machine without twisting, dragging, or falling. Product movement can matter as much as film compatibility.
Horizontal machines work best when the bag can lie flat or remain stable on the conveyor.
A horizontal continuous band sealer may suit coffee, snacks, or small components. The package rests on the conveyor while the open edge passes through the sealing bands.
Stability is the deciding factor. If the bag tips or pulls against the bands, the seal may become uneven.
You should also confirm that the conveyor can support the filled weight without slowing or sagging.

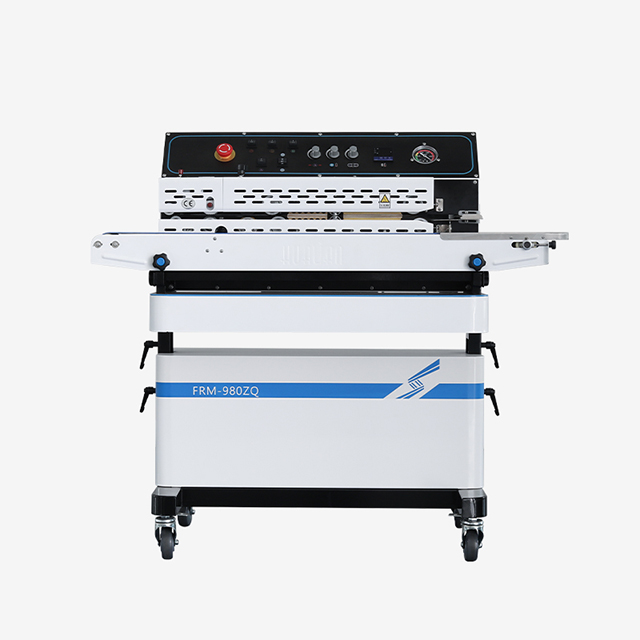

A vertical configuration keeps the package upright.
This helps when powders, grains, or liquids in suitable pouches could move toward the opening if the bag were laid flat.
The choice between vertical vs. horizontal band sealers depends mainly on how the filled package behaves.
A stable pouch may travel horizontally without difficulty. A similar bag filled with loose powder may need to remain upright to protect the seal area.
Impulse sealers allow you to position the package manually.
This gives you more freedom with wide bags, large liners, or shapes that do not sit naturally on a conveyor. You can support the filled package separately and place only the opening between the jaws.
Heavy bags can still be closed with a band sealer, but the conveyor must be designed for the load. Additional support may be needed to prevent the package from pulling on the sealing bands.
A continuous machine changes the operator’s role but does not remove it.
With a band sealer, you may still need to prepare the bag opening, align it with the guides, feed it into the machine, inspect the finished seal, and move the package onward.
The task shifts from activating individual cycles to maintaining a regular flow.
A well-designed workstation should allow you to feed packages without repeated bending or reaching.
Consider:
Conveyor height
Inlet position
Guide placement
Space at the outlet
Filled package weight
Poor layout can replace one repetitive task with another. If the conveyor is too low or finished bags collect at the outlet, fatigue and feeding errors may increase.
Impulse sealing requires more direct handling.
You position the package, activate the machine, wait for the seal to cool, and remove it. A hand-operated model may feel effortless during a short batch but become tiring over several hours.
A foot-operated unit leaves both hands free. A pneumatic model reduces the force needed to close the jaws.
The correct choice depends not only on how many bags you seal, but also on how long the operator repeats the same motion.
Coding can influence your machine choice when every package needs a date or batch number.
Some band sealers print while the bag moves through the machine. A band sealer with printer can close and mark the package in one pass.
Ribbon or solid-ink coding suits simple dates and batch numbers.
Inkjet printing allows more flexible text and layouts.
Laser marking creates permanent codes on compatible surfaces.
The system needs to match the package material. A method that works on one plastic film may smudge or lose contrast on another.
Line speed also matters. The code must remain clear at normal production pace.
Impulse-sealing operations usually handle coding separately through pre-printed bags, labels, or standalone printers. This can work well at lower volumes, but it adds another handling stage.
An impulse sealer normally costs less to purchase. It is compact, easy to install, and has relatively few moving parts.
For low-volume work, that simplicity can make it the more economical option.
The calculation changes as output grows. Because every bag requires individual handling, labour per package may rise. A low-cost machine can become expensive if it slows production.
A band sealer requires a higher initial investment because it includes a conveyor, drive system, heating components, cooling parts, and sealing bands.
In return, it reduces stop-start handling and supports steadier output.
Consider:
Labour per package
Rejects and rework
Spare parts
Downtime
Coding equipment
Future output
The cheaper machine is the one that gives you the lowest sustainable cost per acceptable package, not necessarily the one with the lowest purchase price.
Impulse sealers heat only during each cycle, which makes them practical for occasional use.
Band sealers maintain a heated path and also power the conveyor and drive system.
Rated power does not tell the full story. A band sealer may use more energy per hour but produce far more packages during that time.
Energy per sealed bag is a more useful comparison.
Production pattern matters as well. Repeatedly warming a band sealer for very short runs may be inefficient. During several hours of steady use, continuous operation becomes easier to justify.
A band sealer has more components that affect performance:
Sealing bands
Heating and cooling parts
Conveyor belts
Guides and bearings
Coding components
A worn band or misaligned guide can affect every package in a run.
An impulse sealer is mechanically simpler, but it still needs inspection. Worn PTFE covers may cause film to stick, while damaged heating wires can create incomplete seals.
Before selecting either machine, check spare-parts availability and technical support.
An impulse sealer fits easily on a packing table and can usually be moved when your layout changes.
That makes it practical for smaller workshops, laboratories, and sample production.
A continuous band sealer needs more space. The package requires room to enter the conveyor, pass through the sealing section, and leave without obstruction.
The larger footprint becomes useful when sealing forms part of a broader line.
A band sealer can sit after filling and before inspection, weighing, or carton packing. Continuous movement makes those stages easier to connect.
However, a conveyor does not automatically make the full process automatic. If you still fill, prepare, and feed each bag manually, only the sealing stage has been automated.
This matters when planning expansion. A band sealer can support future integration, but the processes before and after it must maintain the same pace.
The better machine depends on how you package products within your industry.
Continuous band sealers suit repeated runs of similarly sized packages, such as coffee, snacks, or dry ingredients.
Impulse sealers are useful for samples, specialty batches, and frequent package changes.
Whichever system you use, keep the bag mouth free from crumbs, oil, powder, and moisture.
Seeds, grains, fertilizer, and animal feed can shift inside the package.
A vertical band sealer helps keep these products below the sealing line. An impulse sealer may be more practical for samples, trial batches, or large liners.
Both systems may be used for certain outer pouches, secondary packaging, and small-batch work.
A standard sealer does not automatically satisfy sterile or medical-packaging requirements. Where the seal forms part of a validated barrier, the material, settings, testing, and documentation must meet the required standard.
Band sealers can support repeated packaging of granules, detergents, hardware, and small components.
Impulse sealers are often more convenient for irregular products or wide bags.
You should also assess whether dust, vapour, or residue creates hazards that require additional controls.
Impulse sealers work well when package formats change frequently and output remains manageable.
A band sealer becomes more useful when you repeatedly close standardized pouches, accessory packs, or return bags.
A continuous band sealer is usually the better choice when sealing has become a regular part of your production day.
It may suit you when you:
Handle repeatable bag formats
Need steady output
Want consistent sealing conditions
Need inline coding
Plan to connect other equipment
Its value goes beyond speed. It creates a more predictable workflow and removes the need to start a separate cycle for every bag.
Before selecting a model, confirm that the conveyor can support the filled package and that the machine orientation matches the product.
An impulse sealer is often the better fit when output is modest, package sizes vary, or you need close control over placement.
It may suit you when:
You seal intermittently
You handle short batches
Space is limited
Bags are wide or irregular
You want a lower initial investment
A foot-operated or pneumatic model can increase output without giving up cycle-based flexibility.
Watch for the point at which individual cycles begin to restrict production. If filled bags regularly wait for sealing, the lower purchase price may no longer mean the lower operating cost.
A continuous band sealer keeps repeatable packages moving. An impulse sealer gives you direct control over each bag.
Choose an impulse sealer when flexibility matters more than speed. Choose a band sealer when separate cycles are slowing production and you need a steadier flow.
Test the actual package at its normal filled weight before deciding. The seal should remain secure after cooling, handling, and storage.
Contact us to share your material, bag dimensions, filled weight, output target, and coding needs to identify a suitable sealing setup.
Not automatically. Both machines can produce strong seals when the material, heat, pressure, and cooling conditions are correct. A band sealer’s main advantage is repeatability during continuous production.
An impulse sealer may use less energy during occasional work because it heats only during each cycle. At higher output, a band sealer may use less energy per finished package.
Consider upgrading when individual cycles begin to limit output, increase labour, or create a backlog of filled bags. Inline coding or line integration may also justify the change.
Yes. Depending on the model, you can combine sealing with ribbon, solid-ink, inkjet, or laser coding.
Yes, provided the material is heat-sealable and the process meets your hygiene and quality requirements. Keep the sealing area free from food residue.
Impulse sealers provide more flexibility for oversized bags because you can support the package separately. A band sealer can handle heavier bags when its conveyor and supporting structure are designed for the load.
English
简体中文
ไทย
Pусский
