FRJ-1120WH
Hualian
Bags
Product Description

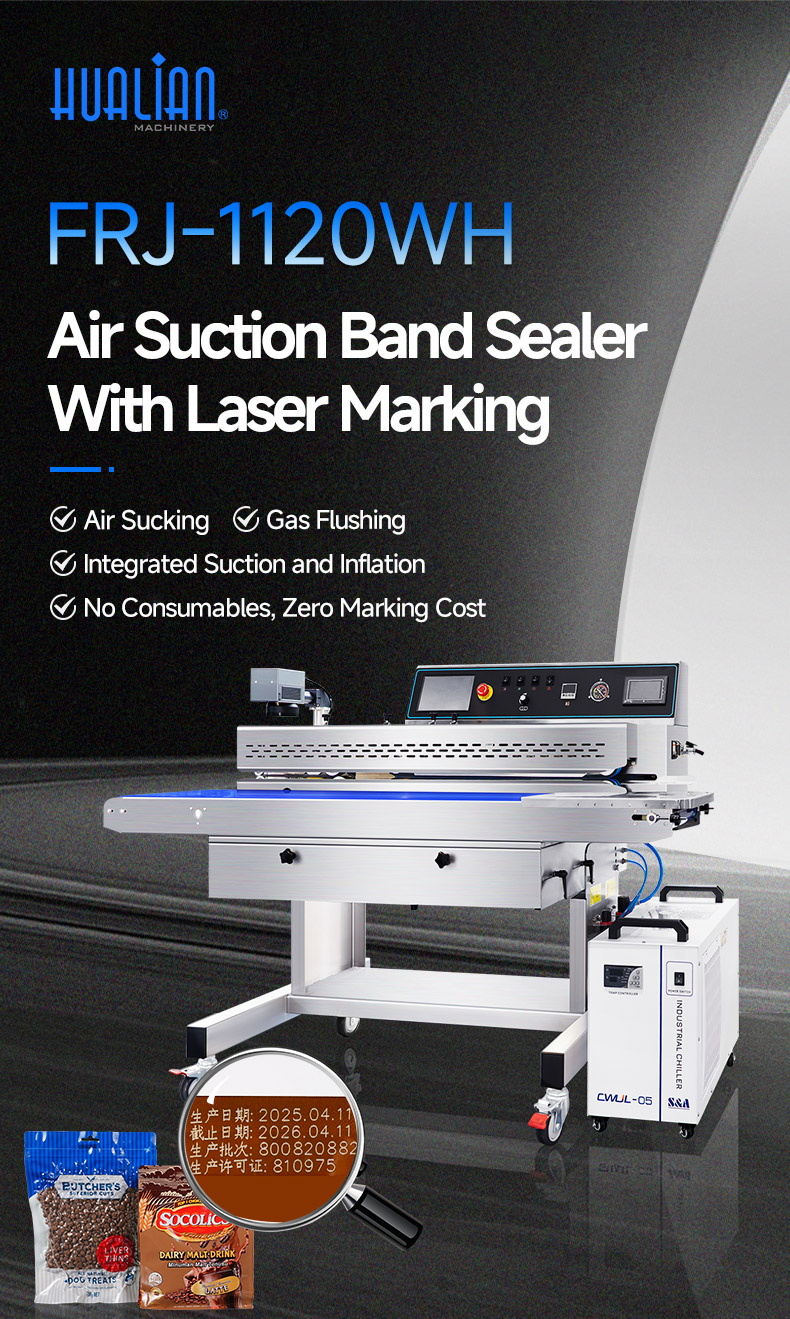

FRJ-1120WH laser marking band sealer addresses the need for an upgraded solution combining sealing with consumable-free laser coding. It integrates air sucking, flushing, sealing, and ink-jet coding. It adopts touch screen for the simple operation, multiple functions, and perfect sealing effect.

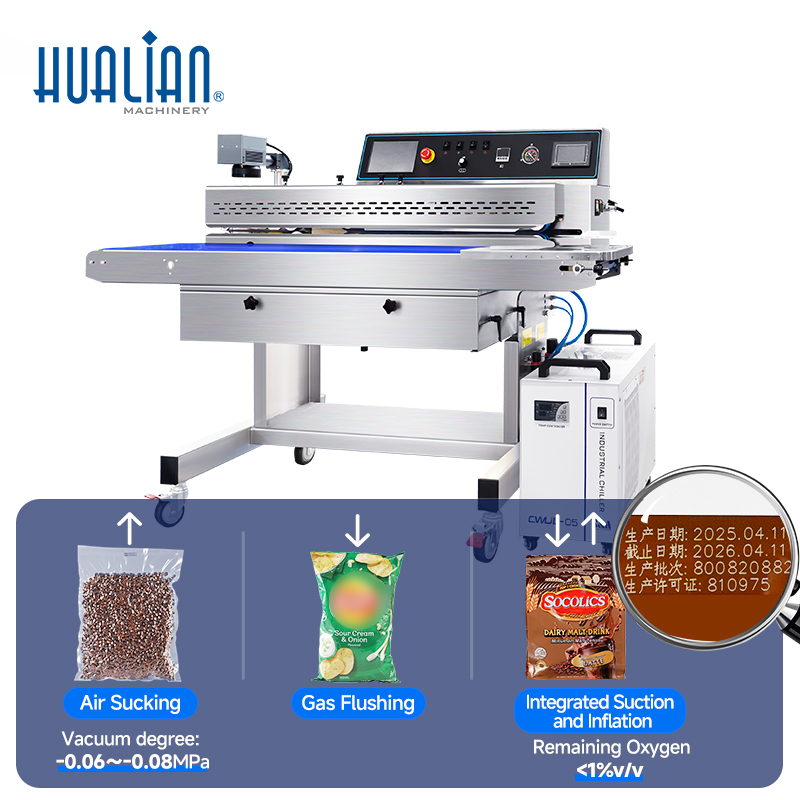

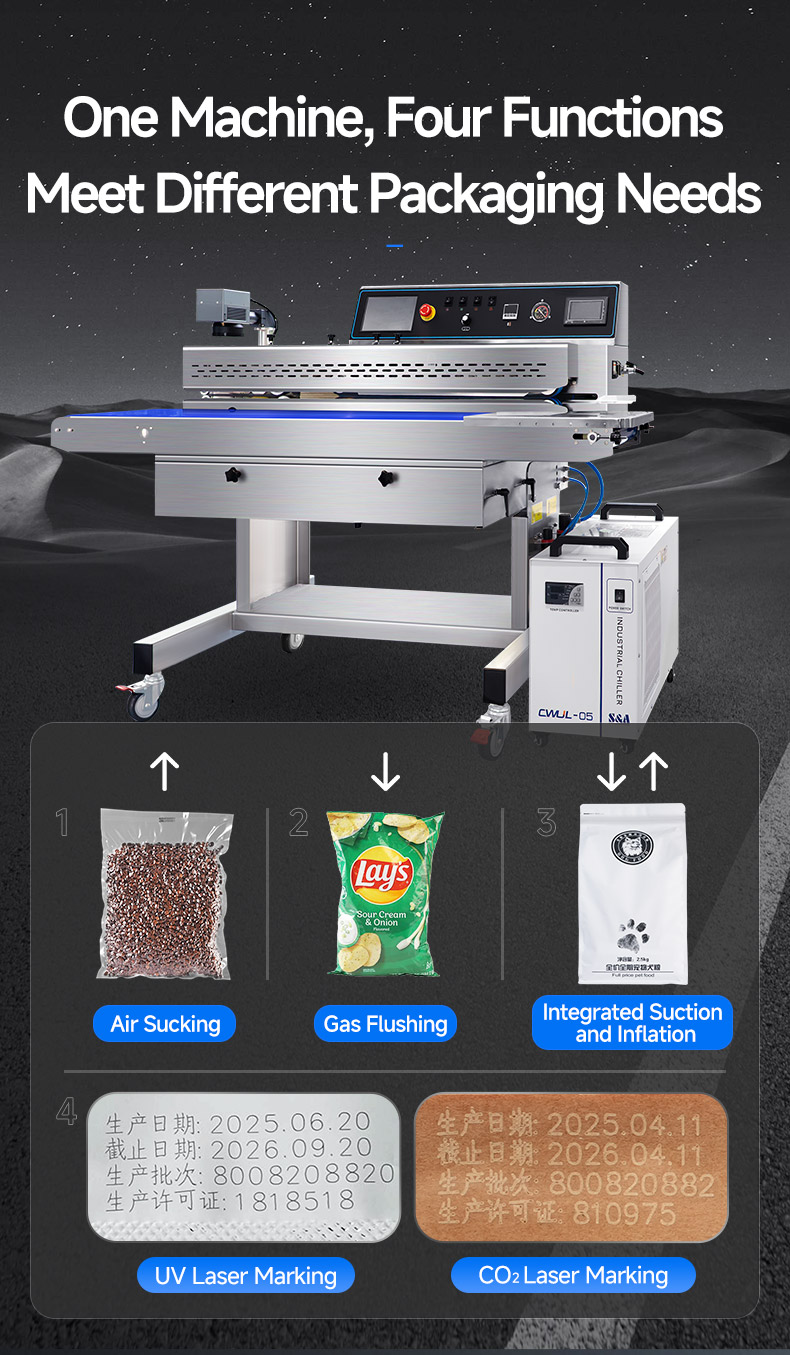

Versatile Multi-functionality: This sealing machine integrates air suction, gas flushing, combined suction and inflation, and laser marking capabilities into a single unit.

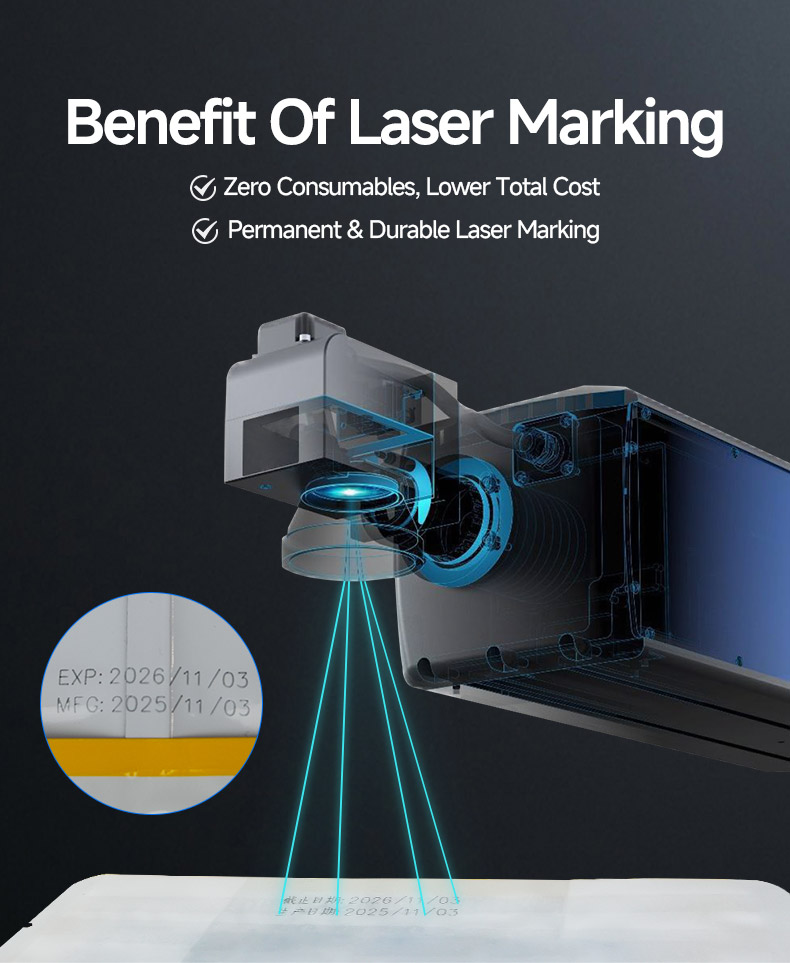

Low Consumables, High ROI: The machine requires no ink and produces permanent, durable markings, ensuring zero consumable costs and a high return on investment.
Target Audience: Packaging facilities for food, personal care products, medical supplies, or small electronic components with steady production volumes; clients who prioritize long-term consumable costs and marking reliability.
Product Detail

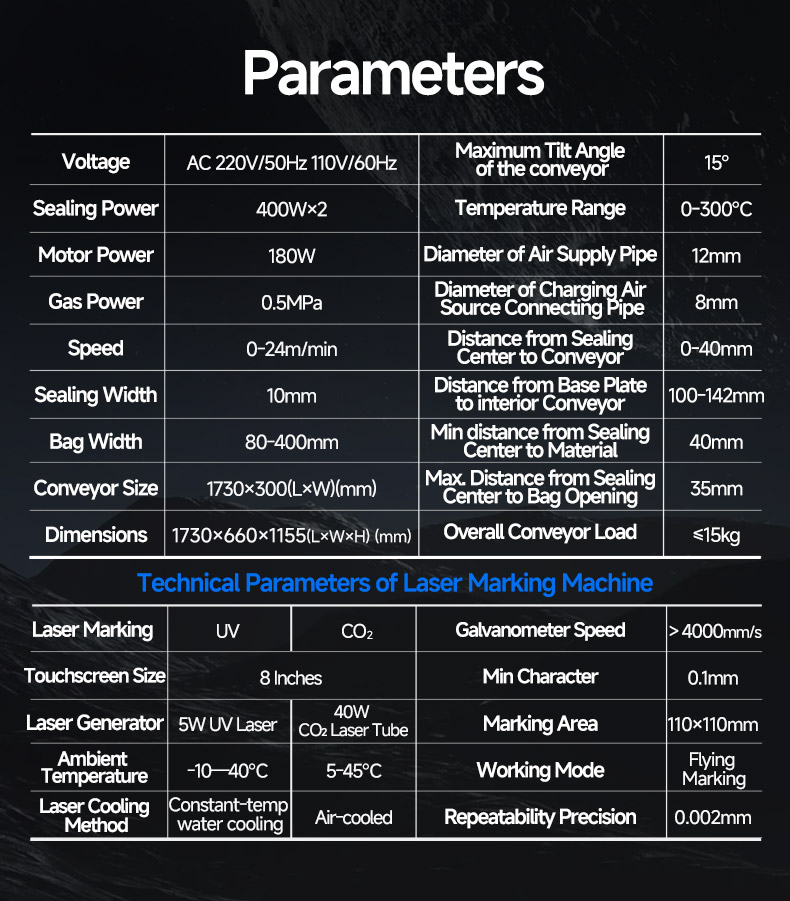

Parameters
Model | FRJ-1120WH |
Voltage(V/Hz) | AC 220/50 110/60 |
Motor Power (W) | 180 |
Sealing Power (W) | 400×2 |
Overall Conveyor Load(KG) | 10 |
Conveyor Size(L×W)(mm) | 1730×300 |
Speed(m/min) | 0-24 |
Printing Type | UV or CO2 Laser Marking |
Distance From Sealing Center to the Conveyor(mm) | 20-70 |
Seal Width(mm) | 10 |
Bag Width(mm) | 80-400 |
Temperature Range(℃) | 0-300 |
Diameter of Air Supply Pipe(mm) | 12 |
Diameter of Charging Air Source Connecting Pipe(mm) | 8 |
Distance from Sealing Center to Conveyor(mm) | 0-40 |
Distance from Base Plate To Interior Conveyor(mm) | 100-142 |
Min Distance from Sealing Center to Material(mm) | 40 |
Max.distance from sealing center to bag opening(mm) | 35 |
Overall Conveyor Load(KG) | 15 |
External Dimension(L×W×H)(mm) | 1730×660×1155 |
Net Weight (kg) | 152 |
