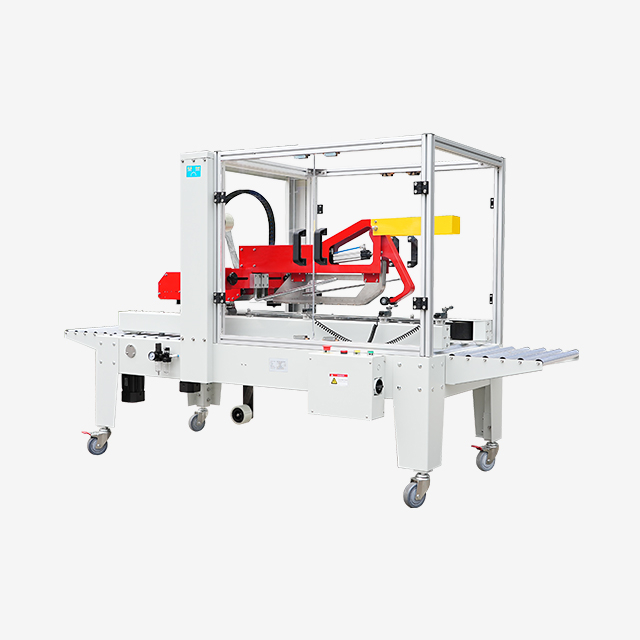

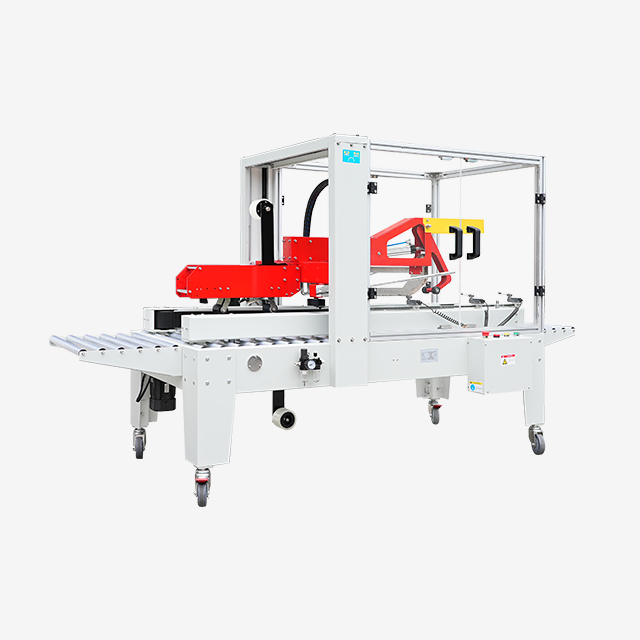

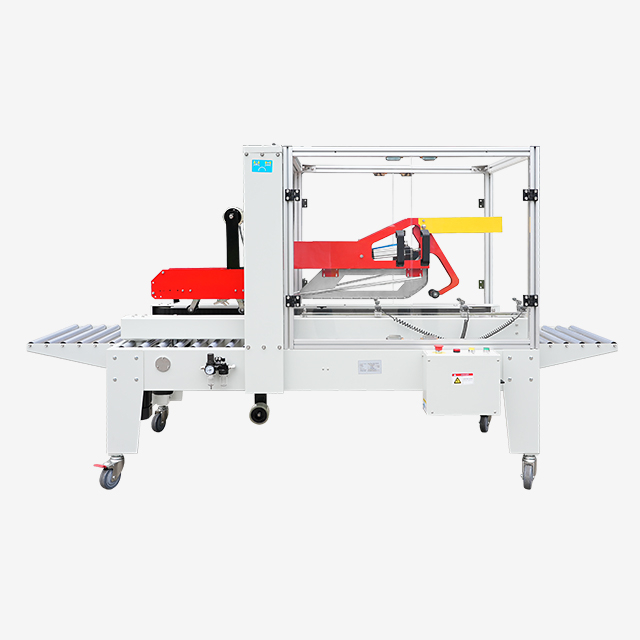

Automatic Carton Box Sealer Machine for Box Taping FXJ-5050ZX

  • FXJ-5050ZX
  • Hualian
  • Cartons
  • Carton sealer

Product Description

FXJ-Z series Automatic Folding Sealing Machine


  • FXJ series is designed to seal carton by applying adhesive tape

  • Cost effective, High speed

  • Easy size changeovers

  • For integration into production line or as stand alone machine

  • Conveyor belt tension and tape tension are adjustable to meet the needs of soft/hard cartons

  • The machine folds front/side/rear flaps at high speed

  • Two-side drive belts

  • Designed with upper & bottom tape heads or just upper tape head that are ideal for sealing uniform cartons continuously

  • Model FXJ-ZX: ideal for integration into production line that requires high degree of automation thanks to safety guard in the front the machine


Voltage   (V/Hz)AC 220/50 110/60
Power (W)260
Air   Compressor (Mpa)0.4-0.6
Speed (m/min)22 m/min (25 cartons/min)
Max.   Carton Size (L×W×H)(mm)600×500×500
Min. Carton Size (L×W×H)(mm)180×180×160
Adhesive   Tape MaterialsBOPP, PVC adhesive tape, water-free adhesive tape
Height of Table (mm)According to customer’s requirement
Width   of Adhesive Tape (mm)48, 60, 76 (optional)
External Dimensions (L×W× H)(mm)1830×920×(1450-1600)
Net Weight (kg)280
Max. Conveyor Load(kg)30

Product Detail
