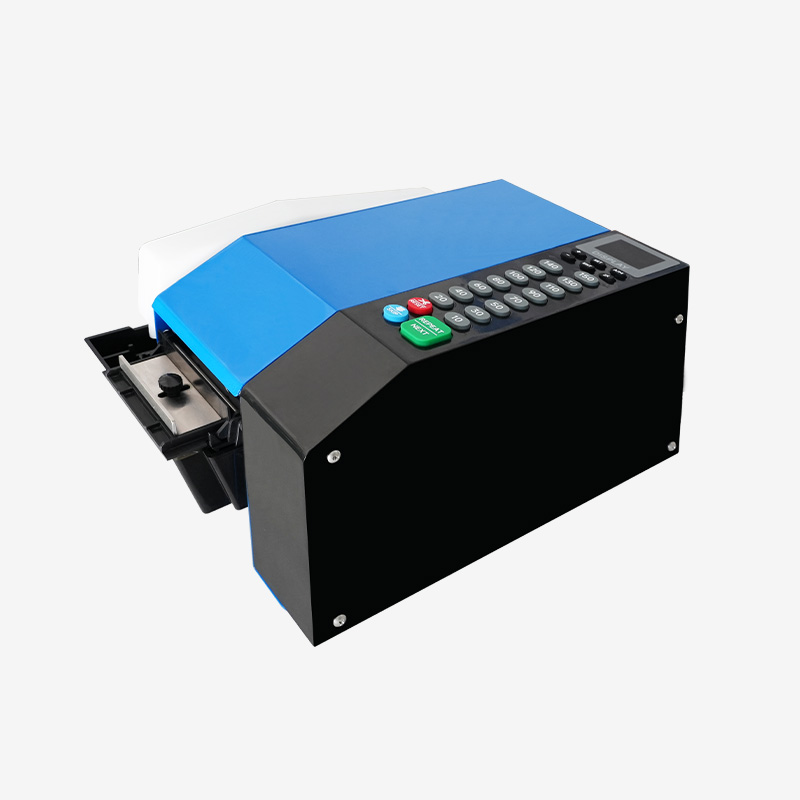

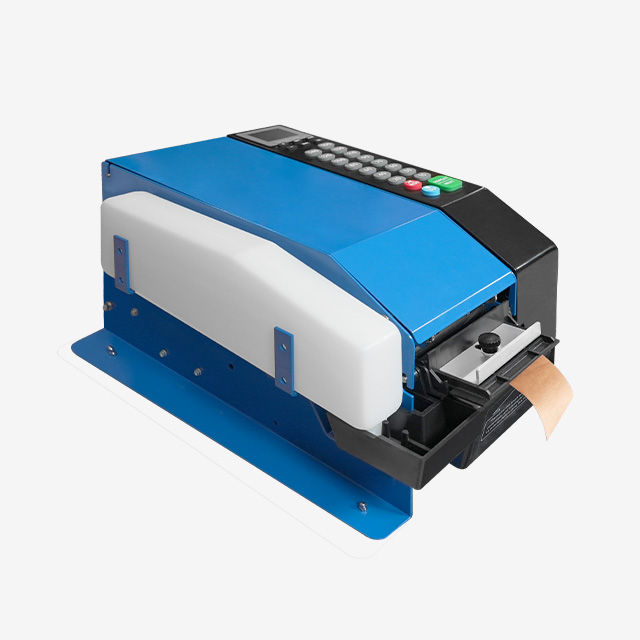

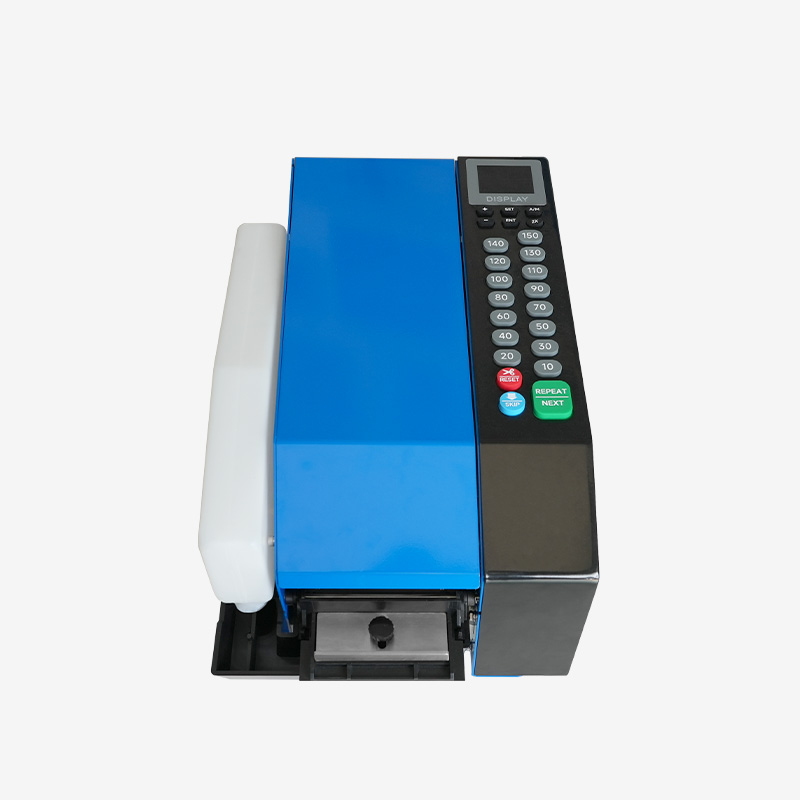

HUALIAN Automatic Water-activated Gummed Kraft Paper Tape Dispenser for Cartons FX-800C

  • 3 Paper Out Modes: Manual Mode,Programme Mode(Semi-automatic),Programme Mode(Fully-automatic)
  • Output speed up to 60m/min
  • Stable Transmission Low Noise
  • 5mm Output Accuracy
  • Small Volume but Large Capacity
  • Various Sealing Mode: One-strip, H-shape and cross sealing
Availability:
Quantity:
  • FX-800B

  • Hualian

  • Cartons

  • Carton sealer

Product Description

FX series: FX-800C is a semiautomatic water-activated tape dispenser (also known as a paper tape dispenser, gummed or gum tape water-activated tape dispenser) that offers simple sealing for specialty applications. No need for separate wetting to produce a secured bond and seal corrugated cartons.


Features:

  • 3 Paper Out Modes:


  1. Manual Mode: Set a single length, click the button, repeat paper output

  2. Programme Mode(Semi-automatic): Various Length settings, click the button, paper out in sequence

  3. Programme Mode(Fully-automatic): Various length settings, the machine will automatically output paper in sequence

  • High Speed Paper Output

  1.  Output speed up to 60m/min, and the flexible width adjustment 20-100mm


  • Stable Transmission Low Noise


  1. Newly upgraded transmission technology, smooth output and low noise


  • 5mm Output Accuracy


  • Small Volume but Large Capacity

  1. 1.5L Large Capacity Water Tank: large water tank, single fill for extended use, easy disassembly

  2. Large capacity paper tray: Accommodates 21cm diameter paper tray, fewer tape changes, shorter downtime


  • Various Sealing Mode

  1. One-strip, H-shape and cross sealing: Meet your diverse carton sealing needs




Parameters


Model

FX-800C

Supply Voltage (V/Hz)

100-240V 50/60HZ

Cutter Type

Motor Cutter

Max Tape Dispenser(mm)

210

Paper Output Speed(m/min)

60

Dispensing Accuracy(mm)

-5

Tape Width(mm)

20-100

Water Tank Capacity(L)

1.5

Net Weight(KG)

16.5

External Dimension(L*W*H)(mm)

500*295*260

Mannual Mode

Combinations of 15 numbers and "+""-""2X", quickly get various lengths

Programme Mode
(Mannual Paper Out)

Totally 9 box numbers setting(paper output programme), 9 length values for each number

Programme Mode
(Automatic Paper Out)

Based on manual mode, add automatic paper dispensing for convenient






Product Detail

Water-activated Gummed Kraft Paper Tape Dispenser
